Interpolate Data for Smooth Animations

In order to create smooth animation between states of data, tweening is necessary. This package provides a range of functions for creating tweened data that plugs right into functions such as gg_animate() from the 'gganimate' package. Furthermore it adds a number of vectorized interpolaters for common R data types such as numeric, date and colour.


tweenr is a small package that makes it easy to interpolate your data between different states, specifying the length of each change, the easing of the transition and how many intermediary steps should be generated. tweenr works particularly well with gganimate but can be used for any case where interpolation of data is needed. All functions are vectorized so in any case you'll get better performance than using approx and colorRamp.

tweening of 9 states of data

tweenr is available through CRAN using install.packages('tweenr'). In order to get the development version, you can install directly from GitHub using devtools:

if (!require(devtools)) {
    install.packages("devtools")
}
devtools::install_github("thomasp85/tweenr")

Once you have it there are currently three ways to tween your data. Furthermore there is also access to standard vectorized interpolaters for the following classes:

  • numeric
  • Date
  • POSIXt
  • colour (not really a class - any string that can be considered a colour)

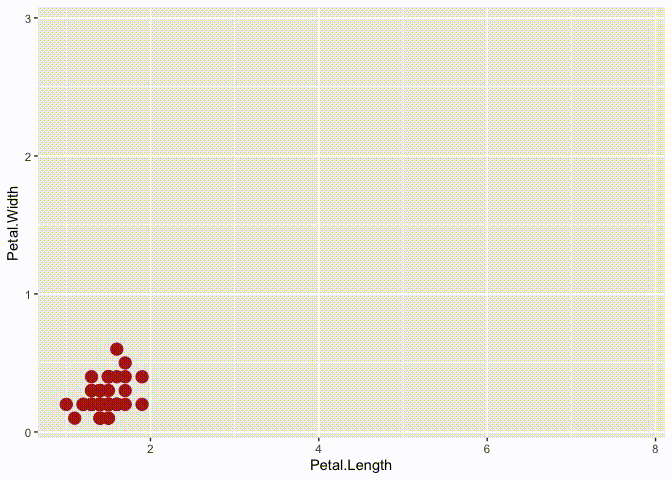

tween_states takes a list of data.frames, each representing a state of your data, and interpolates the transition between them. Only the first data.frame needs to be full, the following only needs to contain the columns that shows any change. It is possible to specify the length of each individual transition, as well as the length of the pause at each state. Each transition can also have an easing function assiciated with it that describes how the transition should progress.

This simple function is for data that describes events in time. It converts the data into frames and assigns an age to each observation in each frame. A negative age means that the observation has yet to appear.

This function is the most versatile of them all. It takes a data.frame that contains a time column, an observation id column and an ease column along with the rest of the data. Each observation, defined by the id, is animated through its individual states, using its own easing function:

Following are the code needed to recreate the two animations shown above. Most of the code is concerned with generating the (useless) data, needed for the animations, the tweenr use is a simple one-liner. Both code samples require the use of ggforce, but only because I'm lazy... :-)

library(ggplot2)
library(gganimate)
library(ggforce)
library(tweenr)

# Making up data
t <- data.frame(x=0, y=0, colour = 'forestgreen', size=1, alpha = 1,
                stringsAsFactors = FALSE)
t <- t[rep(1, 12),]
t$alpha[2:12] <- 0
t2 <- t
t2$y <- 1
t2$colour <- 'firebrick'
t3 <- t2
t3$x <- 1
t3$colour <- 'steelblue'
t4 <- t3
t4$y <- 0
t4$colour <- 'goldenrod'
t5 <- t4
c <- ggforce::radial_trans(c(1,1), c(1, 12))$transform(rep(1, 12), 1:12)
t5$x <- (c$x + 1) / 2
t5$y <- (c$y + 1) / 2
t5$alpha <- 1
t5$size <- 0.5
t6 <- t5
t6 <- rbind(t5[12,], t5[1:11, ])
t6$colour <- 'firebrick'
t7 <- rbind(t6[12,], t6[1:11, ])
t7$colour <- 'steelblue'
t8 <- t7
t8$x <- 0.5
t8$y <- 0.5
t8$size <- 2
t9 <- t
ts <- list(t, t2, t3, t4, t5, t6, t7, t8, t9)

tweenlogo <- data.frame(x=0.5, y=0.5, label = 'tweenr', stringsAsFactors = F)
tweenlogo <- tweenlogo[rep(1, 60),]
tweenlogo$.frame <- 316:375

# Using tweenr
tf <- tween_states(ts, tweenlength = 2, statelength = 1,
                   ease = c('cubic-in-out', 'elastic-out', 'bounce-out',
                            'cubic-out', 'sine-in-out', 'sine-in-out',
                            'circular-in', 'back-out'),
                   nframes = 375)

# Animate with gganimate
p <- ggplot(data=tf, aes(x=x, y=y)) +
    geom_text(aes(label = label, frame = .frame), data=tweenlogo, size = 13) +
    geom_point(aes(frame = .frame, size=size, alpha = alpha, colour = colour)) +
    scale_colour_identity() +
    scale_alpha(range = c(0, 1), guide = 'none') +
    scale_size(range = c(4, 60), guide = 'none') +
    expand_limits(x=c(-0.36, 1.36), y=c(-0.36, 1.36)) +
    theme_bw()
animation::ani.options(interval = 1/15)
gg_animate(p, "dancing ball.gif", title_frame = F, ani.width = 400,
           ani.height = 400)
library(ggplot2)
library(gganimate)
library(ggforce)
library(tweenr)

# Making up data
d <- data.frame(x = rnorm(20), y = rnorm(20), time = sample(100, 20), alpha = 0,
                size = 1, ease = 'elastic-out', id = 1:20,
                stringsAsFactors = FALSE)
d2 <- d
d2$time <- d$time + 10
d2$alpha <- 1
d2$size <- 3
d2$ease <- 'linear'
d3 <- d2
d3$time <- d2$time + sample(50:100, 20)
d3$size = 10
d3$ease <- 'bounce-out'
d4 <- d3
d4$y <- min(d$y) - 0.5
d4$size <- 2
d4$time <- d3$time + 10
d5 <- d4
d5$time <- max(d5$time)
df <- rbind(d, d2, d3, d4, d5)

# Using tweenr
dt <- tween_elements(df, 'time', 'id', 'ease', nframes = 500)

# Animate with gganimate
p <- ggplot(data = dt) +
    geom_point(aes(x=x, y=y, size=size, alpha=alpha, frame = .frame)) +
    scale_size(range = c(0.1, 20), guide = 'none') +
    scale_alpha(range = c(0, 1), guide = 'none') +
    ggforce::theme_no_axes()
animation::ani.options(interval = 1/24)
gg_animate(p, 'dropping balls.gif', title_frame = F)
