A decision support tool for prioritizing conservation projects.
Prioritizations can be developed by maximizing expected feature richness,
expected phylogenetic diversity, the number of features that meet
persistence targets, or identifying a set of projects that meet persistence
targets for minimal cost. Constraints (e.g. lock in specific actions) and
feature weights can also be specified to further customize prioritizations.
After defining a project prioritization problem, solutions can be obtained
using exact algorithms, heuristic algorithms, or random processes. In
particular, it is recommended to install the 'Gurobi' optimizer (available
from < https://www.gurobi.com>) because it can identify optimal solutions
very quickly. Finally, methods are provided for comparing different
prioritizations and evaluating their benefits. For more information, see
Hanson et al. (2019)
The oppr R package is decision support tool for prioritizing conservation projects. Prioritizations can be developed by maximizing expected feature richness, expected phylogenetic diversity, the number of features that meet persistence targets, or identifying a set of projects that meet persistence targets for minimal cost. Constraints (e.g. lock in specific actions) and feature weights can also be specified to further customize prioritizations. After defining a project prioritization problem, solutions can be obtained using exact algorithms, heuristic algorithms, or random processes. In particular, it is recommended to install the 'Gurobi' optimizer because it can identify optimal solutions very quickly. Finally, methods are provided for comparing different prioritizations and evaluating their benefits.
The latest official version of the oppr R package can be installed using the following R code. We also recommend installing the Gurobi optimization suite and gurobi R package to obtain solutions very quickly. For instructions on installing these software packages, please refer to this installation guide.
install.packages("oppr", repos = "https://cran.rstudio.com/")
If you wish to plot phylogenetic trees, you will need install the ggtree package from Bioconductor since it is not available on The Comprehensive R Archive Network.
if (!require(devtools))install.packages("devtools")if (!require(ggtree))devtools::install_bioc("ggtree")
Alternatively, the latest developmental version can be installed using the following code. Please note that while developmental versions may contain additional features not present in the official version, they may also contain coding errors.
if (!require(devtools))install.packages("devtools")devtools::install_github("prioritizr/oppr")
Here we will provide a short example showing how the oppr R package can be used to prioritize funding for conservation projects. To start off, we will set the seed for the random number generator to ensure you get the same results as shown here, and load the oppr R package.
set.seed(500)library(oppr)
Now we will load some data sets that are distributed with the package. First, we will load the sim_features
object. This table contains information on the conservation features (e.g. species). Specifically, each row corresponds to a different feature, and each column contains information associated with the features. In this table, the "name"
column contains the name of each feature, and the "weight"
column denotes the relative importance for each feature.
data(sim_features)# print tableprint(sim_features)
## # A tibble: 5 x 2
## name weight
## <chr> <dbl>
## 1 F1 0.211
## 2 F2 0.211
## 3 F3 0.221
## 4 F4 0.630
## 5 F5 1.59
Next, we will load the sim_actions
object. This table stores information about the various management actions (i.e. tibble
). Each row corresponds to a different action, and each column describes different properties associated with the actions. These actions correspond to specific management actions that have known costs. For example, they may relate to pest eradication activities (e.g. trapping) in sites of conservation importance. In this table, the "name"
column contains the name of each action, and the "cost"
column denotes the cost of each action. It also contains additional columns for customizing the solutions, but we will ignore them for now. Note that the last action---the "baseline_action"
---has a zero cost and is used with the a baseline project (see below).
# load datadata(sim_actions)# print tableprint(sim_actions)
## # A tibble: 6 x 4
## name cost locked_in locked_out
## <chr> <dbl> <lgl> <lgl>
## 1 F1_action 94.4 FALSE FALSE
## 2 F2_action 101. FALSE FALSE
## 3 F3_action 103. TRUE FALSE
## 4 F4_action 99.2 FALSE FALSE
## 5 F5_action 99.9 FALSE TRUE
## 6 baseline_action 0 FALSE FALSE
Additionally, we will load the sim_projects
object. This table stores information about various conservation projects. Each row corresponds to a different project, and each column describes various properties associated with the projects. These projects correspond to groups of conservation actions. For example, a conservation project may pertain to a set of conservation actions that relate to a single feature or single geographic locality. In this table, the "name"
column contains the name of each project, the "success"
column denotes the probability of each project succeeding if it is funded, the "F1"
--"F5"
columns show the probability of each feature is expected to persist if each project is funded (NA
values mean that a feature does not benefit from a project), and the "F1_action"
--"F5_action"
columns indicate which actions are associated with which projects. Note that the last project---the "baseline_project"
---is associated with the "baseline_action"
action. This project has a zero cost and represents the baseline probability of each feature persisting if no other project is funded. This is important because we can't find a cost-effective solution if we don't know how much better each project improves a species' chance at persistence. Finally, although most projects in this example directly relate to a single feature, you can input projects that directly affect the persistence of multiple features.
# load datadata(sim_projects)# print tableprint(sim_projects, width = Inf)
## # A tibble: 6 x 13
## name success F1 F2 F3 F4 F5 F1_action
## <chr> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <lgl>
## 1 F1_project 0.919 0.791 NA NA NA NA TRUE
## 2 F2_project 0.923 NA 0.888 NA NA NA FALSE
## 3 F3_project 0.829 NA NA 0.502 NA NA FALSE
## 4 F4_project 0.848 NA NA NA 0.690 NA FALSE
## 5 F5_project 0.814 NA NA NA NA 0.617 FALSE
## 6 baseline_project 1 0.298 0.250 0.0865 0.249 0.182 FALSE
## F2_action F3_action F4_action F5_action baseline_action
## <lgl> <lgl> <lgl> <lgl> <lgl>
## 1 FALSE FALSE FALSE FALSE FALSE
## 2 TRUE FALSE FALSE FALSE FALSE
## 3 FALSE TRUE FALSE FALSE FALSE
## 4 FALSE FALSE TRUE FALSE FALSE
## 5 FALSE FALSE FALSE TRUE FALSE
## 6 FALSE FALSE FALSE FALSE TRUE
After loading the data, we can begin formulating the project prioritization problem. Here our goal is to maximize the overall probability that each feature is expected to persist into the future (i.e. the feature richness), whilst also accounting for the relative importance of each feature and the fact that our resources are limited such that we can only spend at most $400 on funding management actions. Now, let's build a project prioritization problem object that represents our goal.
# build problemp <- problem(projects = sim_projects, actions = sim_actions,features = sim_features, project_name_column = "name",project_success_column = "success", action_name_column = "name",action_cost_column = "cost", feature_name_column = "name") %>%add_max_richness_objective(budget = 400) %>%add_feature_weights(weight = "weight") %>%add_binary_decisions() %>%add_default_solver(verbose = FALSE)# print problemprint(p)
## Project Prioritization Problem
## actions F1_action, F2_action, F3_action, ... (6 actions)
## projects F1_project, F2_project, F3_project, ... (6 projects)
## features F1, F2, F3, ... (5 features)
## action costs: min: 0, max: 103.22583
## project success: min: 0.81379, max: 1
## objective: Maximum richness objective [budget (400)]
## targets: none
## weights: min: 0.21136, max: 1.59167
## decisions Binary decision
## constraints: <none>
## solver: Gurobi [first_feasible (0), gap (0), number_solutions (1), presolve (2), solution_pool_method (2), threads (1), time_limit (2147483647), time_limit (2147483647), verbose (0)]
Next, we can solve this problem to obtain a solution. By default, we will obtain the optimal solution to our problem using an exact algorithm solver (e.g. using Gurobi or lpSolveAPI).
# solve problems <- solve(p)
# print solutionprint(s, width = Inf)
## # A tibble: 1 x 21
## solution status obj cost F1_action F2_action F3_action F4_action
## <int> <chr> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl>
## 1 1 OPTIMAL 1.75 395. 1 1 0 1
## F5_action baseline_action F1_project F2_project F3_project F4_project
## <dbl> <dbl> <dbl> <dbl> <dbl> <dbl>
## 1 1 1 1 1 0 1
## F5_project baseline_project F1 F2 F3 F4 F5
## <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl>
## 1 1 1 0.808 0.865 0.0865 0.688 0.592
The s
table contains the solution and also various statistics associated with the solution. Here, each row corresponds to a different solution. Specifically, the "solution"
column contains an identifier for the solution (which may be useful for methods that output multiple solutions), the "obj"
column contains the objective value (i.e. the expected feature richness for this problem), the "cost"
column stores the cost of the solution, and the "status"
column contains information from the solver about the solution. Additionally, it contains columns for each action ("F1_action"
, "F2_actions"
, "F3_actions"
, ..., "baseline_action"
) which indicate if each action was prioritized for funding in the solution. Additionally, it contains columns for each project ("F1_project"
, "F2_project"
, "F3_project"
, ..., "baseline_project"
) that indicate if the project was completely funded or not. Finally, it contains column for each feature ("F1
, "F2"
, "F3
, ...) which indicate the probability that each feature is expected to persist into the future under each solution (for information on how this is calculated see ?add_max_richness_objective

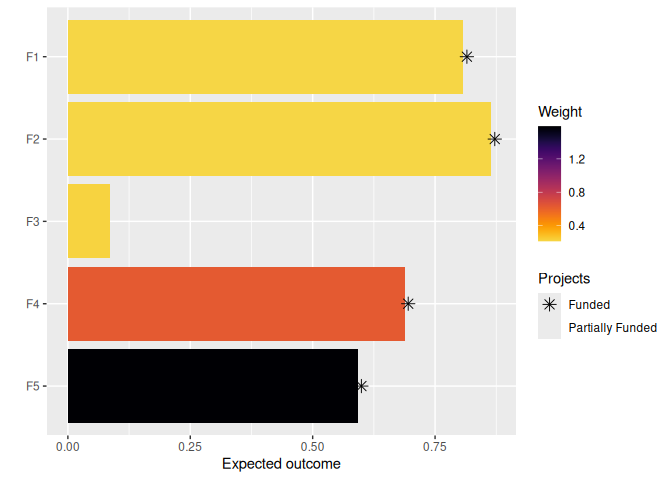

). Since tabular data can be difficult to understand, let's visualize how well this solution would conserve the features. Note that features which benefit from fully funded projects, excepting the baseline project, are denoted with an asterisk.
# visualize solutionplot(p, s)
This has just been a taster of the oppr R package. For more information, see the package vignette.
To cite the oppr package in publications, please use:
Hanson JO, Schuster R, Strimas-Mackey M, Bennett J (2019) oppr:
Optimal Project Prioritization R package version 0.0.3.
https://CRAN.R-project.org/package=oppr
A BibTeX entry for LaTeX users is
@Manual{,
author = {Jeffrey O Hanson and Richard Schuster and Matthew Strimas-Mackey and Joeseph Bennett},
title = {oppr: Optimal Project Prioritization},
year = {2019},
note = {R package version 0.0.3},
url = {https://CRAN.R-project.org/package=oppr},
}
add_heuristic_solver
to skip initial step for removing
projects and actions that exceed the budget. While this initial step
improves solution quality, it is not conventionally used in project
prioritization algorithms and so should be omitted to provide accurate
benchmarks.add_max_phylo_div_objective
). Specifically, 1'000 points instead of 10'000
points are now used for piece-wise linear components. It appears that
reducing the precision in this manner does not affect the correctness of
results, but substantially reduces the time needed to solve problems to
optimality in certain situations.add_heuristic_solver
algorithm so that cost-effectiveness values
are calculated with projects sharing costs (e.g. if two projects share an
action that costs $100, then this action contributes $50 to the cost of each
project). This update makes the algorithm similar to backwards heuristics
conventionally used in prioritizing species recovery projects (i.e.
https://github.com/p-robot/ppp; #14).add_heuristic_solver
function introduced in version 0.0.0.15.add_heuristic_solver
algorithm so that it removes projects, and
not actions, in an iterative fashion. This update (i) makes the algorithm
comparable to the backwards heuristics conventionally used in prioritizing
species recovery projects (i.e. https://github.com/p-robot/ppp) and (ii)
substantially reduces run time (#14).add_heuristic_solver
and add_random_solver
arising from
floating point comparison issue. These were causing infeasible solutions to
be returned in R version 3.4.4.project_cost_effectiveness
reporting incorrect costs, and
cost-effectiveness values.add_heuristic_solver
algorithm so that all actions and projects which
exceed the budget are automatically removed prior to the iterative action
removal.add_random_solver
algorithms so that projects are selected instead
of individual actions. This means that solutions from this solver are (i)
similar to those in previous project prioritization studies and (ii) more
likely to deliver better solutions (#13).replacement_costs
yielding incorrect results for baseline
projects when used with SYMPHONY solvers.project_cost_effectiveness
function to calculate the
cost-effectiveness for each conservation project in a problem.solution_statistics
function outputs which projects are completely
funded in each solution (#9).Found more than one class "tbl_df" in cache; using the first, from namespace 'tibble'
" text.add_max_phylo_div_objective
yielding incorrect solutions
when features are ordered differently in the phylogenetic and tabular input
data.solution_statistics
yielding objective values for
phylogenetic problems when features are ordered differently in the
phylogenetic and tabular input data.return_data
argument to plot_feature_persistence
and
plot_phylo_persistence
so that plotting data can be obtained
for creating custom plots.add_relative_targets
and add_manual_targets
(when relative
targets supplied) calculations. This result in incorrect calculations.add_gurobi_solver
function) now uses
NumericFocus=3
to help avoid numerical issues.compile
function now throws a warning if problems are likely to
have numerical issues.problem
. It will now throw
descriptive error messages if features are missing baseline probabilities, or
are associated with baseline probabilities below 1e-11.simulate_ptm_data
that had a very small chance of failing
due to simulating a data set where an action is not associated with any
project.simulate_ppp_data
and
simulate_ptm_data
are now sorted.
