Fast and Stable Estimation of the Probability of Informed Trading (PIN)

Utilities for fast and stable estimation of the probability of informed trading (PIN) in the model introduced by Easley et al. (2002) are implemented. Since the basic model developed by Easley et al. (1996) is nested in the former due to equating the intensity of uninformed buys and sells, functions can also be applied to this simpler model structure, if needed. State-of-the-art factorization of the model likelihood function as well as most recent algorithms for generating initial values for optimization routines are implemented. In total, two likelihood factorizations and three methodologies for starting values are included. Furthermore, functions for simulating datasets of daily aggregated buys and sells, calculating confidence intervals for the probability of informed trading and posterior probabilities of trading days' conditions are available.


Travis-CI BuildStatus CRAN_Status_Badge Research softwareimpact

The pinbasic package ships utilities for fast and stable estimation of the probability of informed trading in the static PIN framework. The function design is chosen to fit the extended EHO model setup but can also be applied to the simpler EKOP model by equating the intensities of uninformed buys and sells. State-of-the-art factorization of the model likelihood function as well as most recent algorithms for generating initial values for optimization routines are implemented. In total, two likelihood factorizations and three methodologies for starting values are included. Likelihood functions are evaluated with pin_ll and sets of starting values are returned by initial_vals. The probability of informed trading can be estimated for arbitrary length of daily buys and sells data with pin_est which is a wrapper around the workhorse function pin_est_core. No information about the time span of the underlying data is required to perform optimizations with pin_est. However, the recommendation given in the literature is using at least data for 60 trading days to ensure convergence of the likelihood maximization. Quarterly estimates are returned by qpin which can be visualized with ggplot. Datasets of daily aggregated numbers of buys and sells can be simulated with simulateBS. Calculation of confidence intervals for the probability of informed trading can be enabled by confint argument in optimization routines (pin_est_core, pin_est and qpin) or by calling pin_confint directly. Additionally, posterior probabilities for conditions of trading days can be computed with posterior and plotted with ggplot.

Examples

The dataset BSfrequent cover 60 trading days and represent a frequently traded equity. Model parameters and the probability of informed trading can be estimated with pin_est.

library(pinbasic)

# Loading data
data("BSfrequent")

# Estimation
pin_freq <- pin_est(numbuys = BSfrequent[,"Buys"], numsells = BSfrequent[,"Sells"])
pin_freq
#> $Results
#>            Estimate  Std. error    t value      Pr(> t)
#> alpha        0.2000  0.05163873   3.873062 0.0001074766
#> delta        0.5000  0.14433702   3.464115 0.0005319794
#> epsilon_b 1805.4354  5.67230494 318.289553 0.0000000000
#> epsilon_s 1700.6753  5.50984189 308.661358 0.0000000000
#> mu         597.6107 14.60600145  40.915421 0.0000000000
#>
#> $ll
#> loglike
#> 1415607
#>
#> $pin
#>        PIN
#> 0.03296587
#>
#> $conv
#> Convergence
#>           0
#>
#> $message
#> [1] "relative convergence (4)"
#>
#> $iterations
#> Iterations
#>          1
#>
#> $init_vals
#>     alpha     delta epsilon_b epsilon_s        mu
#>    0.2000    0.5000 1805.4259 1700.6852  597.6111
#>
#> $posterior
#>                 no         good          bad
#>  [1,] 1.000000e+00 1.054677e-28 8.603585e-38
#>  [2,] 1.000000e+00 1.708301e-41 5.437236e-31
#>  [3,] 1.000000e+00 7.029207e-40 1.412484e-38
#>  [4,] 2.119110e-45 2.484190e-80 1.000000e+00
#>  [5,] 4.284377e-34 1.000000e+00 8.485090e-66
#>  [6,] 1.000000e+00 2.173042e-38 3.616880e-32
#>  [7,] 1.000000e+00 1.657474e-39 2.486257e-44
#>  [8,] 6.148468e-35 8.501740e-62 1.000000e+00
#>  [9,] 1.000000e+00 1.584055e-36 7.734248e-39
#> [10,] 1.000000e+00 6.617151e-36 9.224399e-43
#> [11,] 3.419344e-38 1.000000e+00 2.743870e-70
#> [12,] 1.000000e+00 1.264228e-40 9.395923e-40
#> [13,] 1.000000e+00 1.785679e-25 3.020421e-45
#> [14,] 1.000000e+00 6.820067e-38 3.359919e-44
#> [15,] 1.000000e+00 3.624041e-34 7.734248e-39
#> [16,] 6.036227e-38 1.015713e-77 1.000000e+00
#> [17,] 1.000000e+00 1.226614e-38 2.922883e-34
#> [18,] 1.000000e+00 5.443069e-42 2.276597e-42
#> [19,] 1.000000e+00 9.928515e-25 6.952753e-40
#> [20,] 3.917168e-47 1.000000e+00 1.103522e-86
#> [21,] 1.435856e-43 1.121835e-89 1.000000e+00
#> [22,] 1.000000e+00 1.632631e-38 1.908825e-38
#> [23,] 1.000000e+00 2.076785e-35 2.486257e-44
#> [24,] 1.540415e-42 1.000000e+00 1.148294e-86
#> [25,] 1.000000e+00 6.324039e-33 1.908825e-38
#> [26,] 1.000000e+00 2.892333e-38 3.737577e-43
#> [27,] 1.000000e+00 7.029207e-40 4.023421e-31
#> [28,] 1.000000e+00 9.642821e-42 2.627545e-35
#> [29,] 1.000000e+00 9.498287e-41 4.540581e-44
#> [30,] 1.000000e+00 1.560312e-35 2.235037e-45
#> [31,] 1.789734e-33 1.000000e+00 5.903585e-80
#> [32,] 1.472181e-39 1.000000e+00 7.064422e-74
#> [33,] 1.000000e+00 1.322823e-43 2.405970e-33
#> [34,] 1.000000e+00 2.764215e-35 3.192063e-36
#> [35,] 1.000000e+00 1.024329e-45 4.313742e-36
#> [36,] 1.000000e+00 2.045657e-34 9.395923e-40
#> [37,] 1.000000e+00 3.463511e-31 5.144867e-40
#> [38,] 1.000000e+00 1.632631e-38 1.412484e-38
#> [39,] 1.000000e+00 5.201964e-39 8.446526e-41
#> [40,] 1.000000e+00 4.472796e-29 1.520508e-26
#> [41,] 1.000000e+00 1.632631e-38 1.944319e-35
#> [42,] 1.000000e+00 3.072441e-42 3.550854e-35
#> [43,] 1.000000e+00 2.848980e-37 7.734248e-39
#> [44,] 1.000000e+00 2.108388e-36 6.825829e-43
#> [45,] 1.000000e+00 2.108388e-36 2.154180e-51
#> [46,] 1.000000e+00 1.513888e-33 8.024552e-33
#> [47,] 1.000000e+00 6.617151e-36 1.600465e-34
#> [48,] 1.000000e+00 2.108388e-36 3.020421e-45
#> [49,] 1.000000e+00 1.120353e-32 7.213723e-34
#> [50,] 2.401133e-41 4.101858e-82 1.000000e+00
#> [51,] 1.000000e+00 1.103560e-31 7.734248e-39
#> [52,] 1.000000e+00 7.355002e-43 1.684626e-42
#> [53,] 1.000000e+00 5.695348e-45 8.446526e-41
#> [54,] 1.000000e+00 5.201964e-39 1.514405e-43
#> [55,] 1.000000e+00 4.897022e-35 1.571248e-37
#> [56,] 1.000000e+00 6.923847e-39 1.293372e-36
#> [57,] 1.000000e+00 6.617151e-36 1.341919e-30
#> [58,] 1.000000e+00 1.172280e-35 3.877866e-37
#> [59,] 5.426305e-39 3.757091e-77 1.000000e+00
#> [60,] 1.000000e+00 2.486910e-28 2.084616e-40
#> attr(,"class")
#> [1] "matrix"    "posterior"

BSfrequent2015 contains simulated daily buys and sells for a frequently traded equity for business days in 2015. qpin returns quarterly estimates which can be visualized with ggplot.

# Quarterly PIN estimates
# Confidence interval computation enabled:
#   * using only 1000 simulated datasets
#   * confidence level set to 0.95
#   * seed set to 123

data('BSfrequent2015')
qpin2015 <- qpin(numbuys = BSfrequent2015[,"Buys"], numsells = BSfrequent2015[,"Sells"],
                 dates = as.Date(rownames(BSfrequent2015), format = "%Y-%m-%d"),
                 confint = TRUE, ci_control = list(n = 1000, seed = 123))

# Print confidence intervals for all four quarters
ci_quarters <- lapply(qpin2015[["res"]], function(x) x$confint)
ci_quarters
#> $`2015.1`
#>       2.5%      97.5%
#> 0.02752256 0.05943952
#>
#> $`2015.2`
#>        2.5%       97.5%
#> 0.006405346 0.033145972
#>
#> $`2015.3`
#>       2.5%      97.5%
#> 0.03658681 0.07322781
#>
#> $`2015.4`
#>       2.5%      97.5%
#> 0.01014942 0.03794254

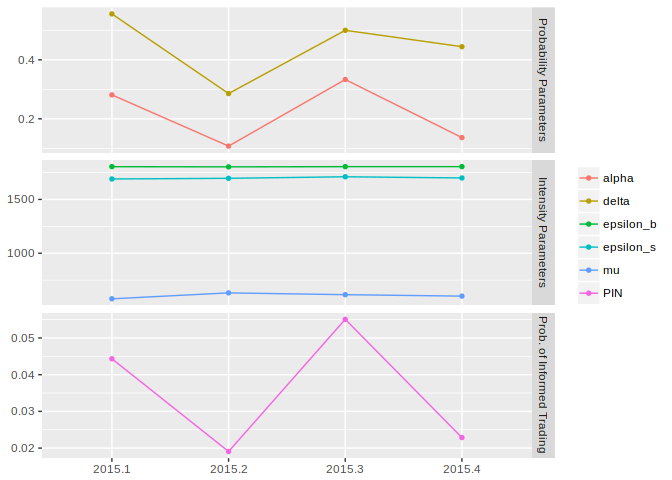

# Visualization of estimated parameters
library(ggplot2)
ggplot(qpin2015[["res"]])

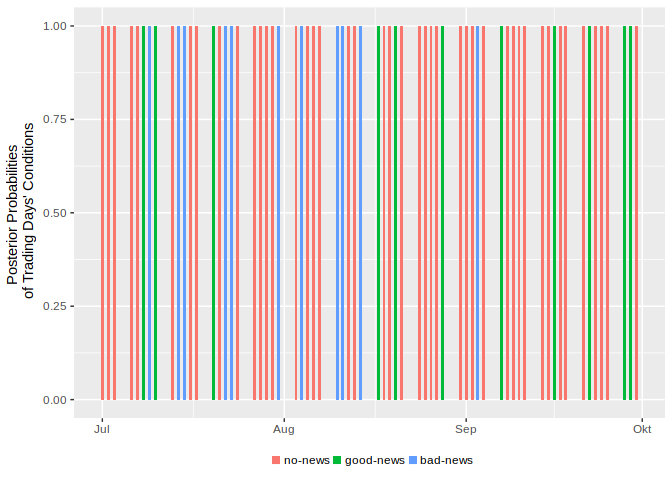

Posterior probabilities of trading days’ condition are returned by posterior and can be displayed with ggplot. The following code chunk shows how posterior probabilities for BSfrequent2015 in the third quarter can be calculated and visualized.

# Corresponding parameter estimates
freq_2015.3 <- qpin2015[["res"]]$'2015.3'$Results[,"Estimate"]

# Subsetting data
third_quarter <- subset(BSfrequent2015, subset = lubridate::quarter(rownames(BSfrequent2015)) == 3)

# Calculating posterior probabilities
post_third <- posterior(param = freq_2015.3,
                        numbuys = third_quarter[,"Buys"], numsells = third_quarter[,"Sells"])

# Plotting
ggplot(post_third)

Installation

You may install the stable version from CRAN, or the development version from GitHub using devtools:

# install from CRAN
install.packages("pinbasic")

# install from github using devtools
devtools::install_github("anre005/pinbasic")

News

pinbasic v1.2.0 (Release Date: 2017-12-21)

Changes

  • simulateBS now completely in C++
  • Method for generating sets of initial values in pin_confint function is no longer tied to HAC. Other available methods can be chosen via the method argument of the function. (Defaults to "HAC")
  • additional boolean flag posterior to enable computing posterior probabilities of conditions of trading days for pin_est, pin_est_core and qpin functions
  • qpin function returns now list of list by default with slots res and posterior: res is relevant for ggplot.qpin

pinbasic v1.1.0 (Release Date: 2017-03-01)

Fixes

  • pin_confint for ncores = 1; seed is set once at the beginning, hence results differ slightly from them of earlier version

Changes

  • Code clean-up for pin_confint and thus less dependencies; ncores = 1 by default now
  • Confidence interval computations invoked by pin_est_core, pin_est or qpin use only 1 CPU core by default now
  • Likelihood factorizations are re-implemented with Rcpp
  • simulateBS function is re-implemented with Rcpp

pinbasic v1.0.1 (Release Date: 2017-01-11)

Fixes

  • fixed NOTES reported by CRAN checks

pinbasic v1.0.0 (Release Date: 2017-01-09)

New Functions

  • posterior: calculates posterior probabilities for trading days' conditions
  • ggplot.posterior: Method for ggplot function for handling objects with class 'posterior' (Results from posterior function)

Changes

  • pin_confint: using iter function from iterators package to iterate over list of simulated datasets if executed in parallel which gains little speed-up in execution time
  • qpin_plot changed to ggplot.qpin: Method for ggplot function for handling objects with class 'qpin' (Results from qpin function)

Fixes

  • fixed missing convergence code in optimization routines if num_best_res = 1

pinbasic v0.2.0 (Release Date: 2016-12-02)

New Functions

  • simulateBS for simulating daily buys and sells data
  • pin_confint: computes confidence intervals for the probability of informed trading

Changes

  • pin_est_core, pin_est and qpin gained two new arguments: confint and ci_control
  • updated plotting structure for qpin_plot, facets are now grouped by probability parameters, intensity parameters and the probability of informed trading
  • initial_vals together with method = "HAC_Ref" now returns a number of sets of initial values depending on num_clust argument, not only one set
  • Vignette was added

pinbasic v0.1.0 (Release Date: 2016-10-25)

  • initial release
