Ordinary Differential Equation (ODE) Solvers Written in R Using S4 Classes

Show physics, math and engineering students how an ODE solver is made and how effective R classes can be for the construction of the equations that describe natural phenomena. Inspiration for this work comes from the book on "Computer Simulations in Physics" by Harvey Gould, Jan Tobochnik, and Wolfgang Christian. Book link: < http://www.compadre.org/osp/items/detail.cfm?ID=7375>.


CRAN_Status_Badge Travis-CI Build Status Coverage Status

rODE

The goal of rODE is to explore R and its S4 classes and its differences with Java and Python classes while exploring physics simulations by solving ordinary differential equations (ODE).

Motivation

This is not your typical black-box ODE solver. You really have to develop your ODE algorithm using any of the ODE solvers available in the package. The objective is learning while coding R, understanding the physics and using the math.

rODE has been inspired on the extraordinary physics library for computer simulations OpenSourcePhyisics. Take a look at it at http://opensourcephysics.org. I highly recommend the book An Introduction to Computer Simulation Methods: Applications To Physical Systems, (Gould, Tobochnik, and Christian, 2017). It has helped me a lot in understanding the physics behind ordinary differential equations. The book briliantly combines code, algorithms, math and physics.

Additionally I have consulted these sources during the developing of the package rODE:

  • The beatiful introduction to computers and numerical methods for petroleum engineering "Using the Computer to Solve Petroleum Engineering Problems" by Melvin Nobles", (Nobles, 1974)
  • Some examples and analytical solutions were borrowed from "Numerical Solution of Ordinary Differential Equations", (Atkinson, Han, and Stewart, 2009).
  • The paper "Numerical Reservoir Simulation Using an Ordinary-Differential-Equations Integrator", (Sincovec, 1975).
  • The thesis "Numerical Methods For Solution of Differential Equations", (Ritschel, 2013).
  • The paper "On Dormand-Prince Method" where I could learn about the Dormand-Prince ODE solver, (Kimura, 2009).
  • The paper "A Family of Embedded Runge-Kutta formulae", (Dormand and Prince, 1980), where you can see the derivation of the ODE solver RK-45.
  • The paper on solving ODEs in R (Soetaert, Petzoldt, and Setzer, 2010).
  • The paper "Behind and beyond the Matlab ODE suite" (Ashino, Nagase, and Vaillancourt, 2000).

ODE solvers in this package

The ODE solvers implemented in R so far:

  • Euler
  • Euler-Richardson
  • Verlet
  • RK4
  • RK45, Dormand-Prince45

Installation

You can install the latest development version of rODE from github with:

devtools::install_github("f0nzie/rODE", ref = "develop")

Or the stable version from CRAN:

install.packages("rODE")

Examples

Example scripts are located under the folder examples inside the package.

These examples make use of a parent class containing a customized rate calculation as well as the step and startup method. The methods that you would commonly find in the base script or parent class are:

  • getRate()
  • getState()
  • step() or doStep()
  • setStepSize()
  • init(), which is not the same as the S4 class initialize method
  • initialize(), and
  • the constructor

These methods are defined in the virtual classes ODE and ODESolver.

Two other classes that serve as definition classes for the ODE solvers are: AbstractODESolver and ODEAdaptiveSolver.

For instance, the application KeplerApp.R needs the class Kepler located in the Kepler.R script, which is called with planet <- Kepler(r, v), an ODE object. The solver for the same application is RK45 called with solver <- RK45(planet), where planet is a previuously declared ODE object. Since RK45 is an ODE solver, the script RK45.R will be located in the folder ./R in the package.

Vignettes

The vignettes contain examples of the use of the various ODE solvers.

For instance, the notebook Comparison and Kepler use the ODE solver RK45; FallingParticle and Planet use the Euler solver; Pendulum makes use of EulerRichardson; Planet of Euler, Projectile; Reaction of RK4, and KeplerEnergy uses the ODE solver Verlet.

Tests

There are tests for the core ODE solver classes under tests/testthat, as well as additional tests for the examples themselves.

Test this folder

The tests for the examples are two: one for the base/parent classes such as Kepler or Planet or Projectile; this test runner is called run_tests_this_folder.R.

For the applications there is another runner (run_test_applications.R) that opens each of the applications as request for a return value. If the hard coded value is not returned, the test will fail. This ensures that any minor change in the core solver classes do not have any impact on the application solutions, and if there is, it must be explained.

Tests all the application examples

You can test all applications under the examples folder by running the script run_test_applications.R. The way it works is by getting the list of all applications by filtering those ending with App. Then removes the extension .R from each app and starts looping to call each of the applications with do.call. A list contains the expected results that are compared against the result coming out from the call to the R application.

Applications

  • AdaptiveStepApp
  • ComparisonRK45App
  • FallingParticleODE
  • KeplerApp
  • KeplerEnergyApp
  • LogisticApp
  • PendulumApp
  • PlanetApp
  • ProjectileApp
  • ReactionApp
  • RigidBodyNXFApp
  • SHOApp
  • SpringRK4App
  • VanderpolApp
  • VanderpolMuTimeControlApp

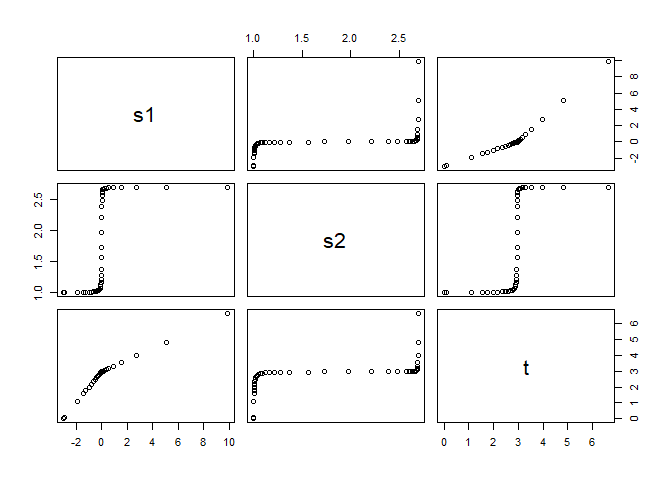

AdaptiveStepApp

library(rODE)
#>
#> Attaching package: 'rODE'
#> The following object is masked from 'package:stats':
#>
#>     step
importFromExamples("AdaptiveStep.R")

# running function
AdaptiveStepApp <- function(verbose = FALSE) {
    ode        <- new("Impulse")
    ode_solver <- RK45(ode)
    ode_solver <- init(ode_solver, 0.1)
    ode_solver <- setTolerance(ode_solver, 1.0e-4)
    i <- 1; rowVector <- vector("list")
    while (getState(ode)[1] < 12) {
        rowVector[[i]] <- list(s1 = getState(ode)[1],
                               s2 = getState(ode)[2],
                               t  = getState(ode)[3])
        ode_solver <- step(ode_solver)
        ode <- [email protected]
        i <- i + 1
    }
    return(data.table::rbindlist(rowVector))
}
# run application
solution <- AdaptiveStepApp()
plot(solution)

ComparisonRK45App

# ++++++++++++++++++++++++++++++++++++++++++++++++  example: ComparisonRK45App.R
# Compares the solution by the RK45 ODE solver versus the analytical solution
# Example file: ComparisonRK45App.R
# ODE Solver:   Runge-Kutta 45
# Class:        RK45
library(rODE)
importFromExamples("ODETest.R")

 ComparisonRK45App <- function(verbose = FALSE) {
     ode <- new("ODETest")                     # create an `ODETest` object
     ode_solver <- RK45(ode)                   # select the ODE solver
     ode_solver <- setStepSize(ode_solver, 1)      # set the step
     ode_solver <- setTolerance(ode_solver, 1e-8)  # set the tolerance
     rowVector <- vector("list")
     time <-  0
     i    <- 1
     while (time < 50) {
         rowVector[[i]] <- list(t  = [email protected]@state[2],
                                s1 = getState([email protected])[1],
                                s2 = getState([email protected])[2],
                                xs = getExactSolution([email protected], time),
                                rc = getRateCounts(ode),
                                time = time)
         ode_solver <- step(ode_solver)       # advance one step
         stepSize <-  [email protected]     # update the step size
         time <- time + stepSize
         state <- getState([email protected])    # get the `state` vector
         i <- i + 1
     }
     return(data.table::rbindlist(rowVector))    # a data table with the results
 }
# show solution

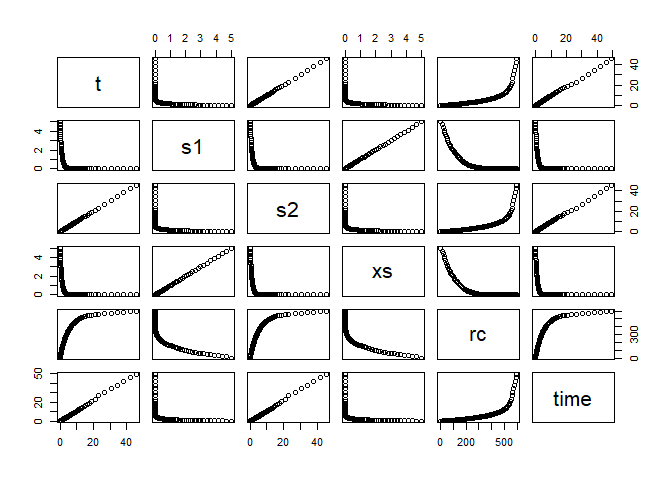

solution <- ComparisonRK45App()                          # run the example
plot(solution)

FallingParticleODE

# +++++++++++++++++++++++++++++++++++++++++++++++  example: FallingParticleApp.R
# Application that simulates the free fall of a ball using Euler ODE solver
library(rODE)
importFromExamples("FallingParticleODE.R")      # source the class

FallingParticleODEApp <- function(verbose = FALSE) {
    # initial values
    initial_y <- 10
    initial_v <- 0
    dt        <- 0.01
    ball   <- FallingParticleODE(initial_y, initial_v)
    solver <- Euler(ball)                        # set the ODE solver
    solver <- setStepSize(solver, dt)            # set the step
    rowVector <- vector("list")
    i <- 1
    # stop loop when the ball hits the ground, state[1] is the vertical position
    while ([email protected][1] > 0) {
        rowVector[[i]] <- list(t  = [email protected][3],
                               y  = [email protected][1],
                               vy = [email protected][2])
        solver <- step(solver)                   # move one step at a time
        ball <- [email protected]                       # update the ball state
        i <- i + 1
    }
    DT <- data.table::rbindlist(rowVector)
    return(DT)
}
# show solution

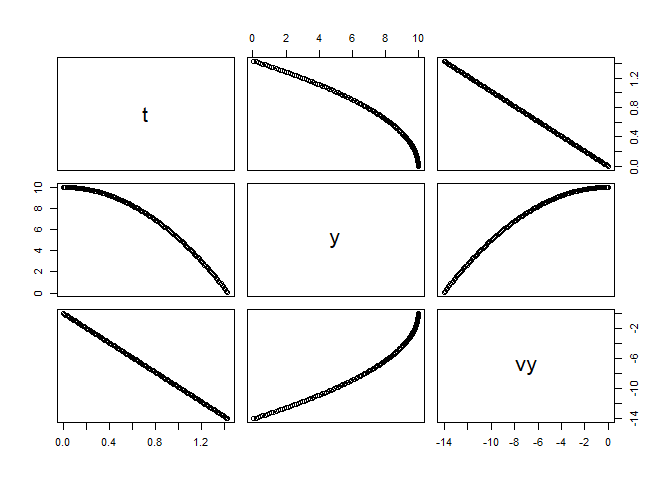

solution <- FallingParticleODEApp()
plot(solution)

KeplerApp

#  +++++++++++++++++++++++++++++++++++++++++++++++++++++++++ example KeplerApp.R
#  KeplerApp solves an inverse-square law model (Kepler model) using an adaptive
#  stepsize algorithm.
#  Application showing two planet orbiting
#  File in examples: KeplerApp.R
library(rODE)
importFromExamples("Kepler.R") # source the class Kepler

KeplerApp <- function(verbose = FALSE) {
    # set the orbit into a predefined state.
    r  <- c(2, 0)                                   # orbit radius
    v  <- c(0, 0.25)                                # velocity
    dt <- 0.1
    planet <- Kepler(r, v)
    solver <- RK45(planet)
    rowVector <- vector("list")
    i <- 1
    while ([email protected][5] <= 10) {
        rowVector[[i]] <- list(t  = [email protected][5],
                               planet1.r = [email protected][1],
                               p1anet1.v = [email protected][2],
                               planet2.r = [email protected][3],
                               p1anet2.v = [email protected][4])
        solver <- step(solver)
        planet <- [email protected]
        i <-  i + 1
    }
    DT <- data.table::rbindlist(rowVector)
    return(DT)
}

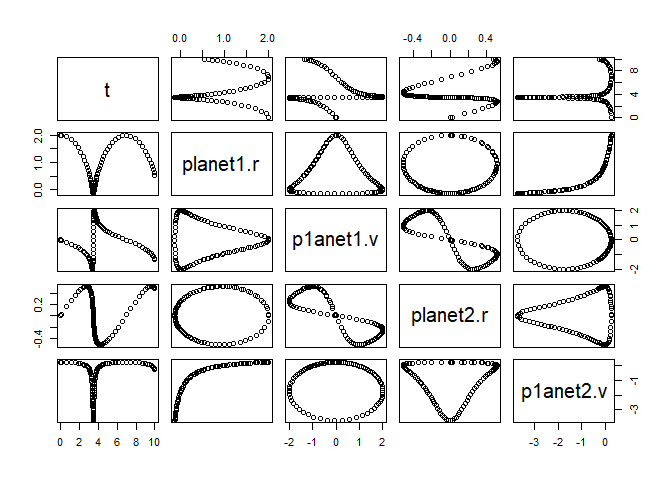

solution <- KeplerApp()
plot(solution)

KeplerEnergyApp

# ++++++++++++++++++++++++++++++++++++++++++++++++++  example: KeplerEnergyApp.R
# Demostration of the use of the Verlet ODE solver
#
library(rODE)
importFromExamples("KeplerEnergy.R") # source the class Kepler

KeplerEnergyApp <- function(verbose = FALSE) {
    # initial values
    x   <- 1
    vx  <- 0
    y   <- 0
    vy  <- 2 * pi
    dt  <- 0.01
    tol <- 1e-3
    particle <- KeplerEnergy()
    particle <- init(particle, c(x, vx, y, vy, 0))
    odeSolver <- Verlet(particle)
    odeSolver <- init(odeSolver, dt)
    [email protected] <- odeSolver
    initialEnergy <- getEnergy(particle)
    rowVector <- vector("list")
    i <- 1
    while (getTime(particle) <= 1.20) {
        rowVector[[i]] <- list(t  = [email protected][5],
                               x  = [email protected][1],
                               vx = [email protected][2],
                               y  = [email protected][3],
                               vy = [email protected][4],
                               E  = getEnergy(particle))
        particle <- doStep(particle)
        energy <- getEnergy(particle)
        i <- i + 1
    }
    DT <- data.table::rbindlist(rowVector)
    return(DT)
}

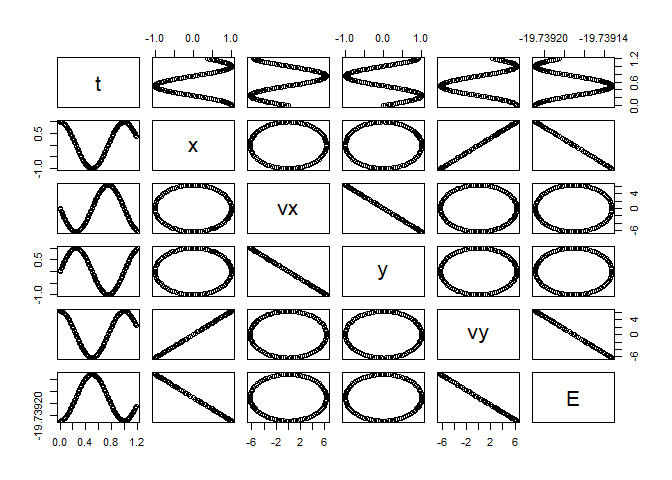

solution <- KeplerEnergyApp()
plot(solution)

LogisticApp

library(rODE)
importFromExamples("Logistic.R") # source the class Logistic

# Run the application
LogisticApp <- function(verbose = FALSE) {
    x  <- 0.1
    vx <- 0
    r  <- 2        # Malthusian parameter (rate of maximum population growth)
    K  <- 10.0     # carrying capacity of the environment
    dt <- 0.01; tol  <- 1e-3; tmax <- 10
    population <- Logistic()
    population <- init(population, c(x, vx, 0), r, K)
    odeSolver <- Verlet(population)
    odeSolver <- init(odeSolver, dt)
    [email protected] <- odeSolver
    rowVector <- vector("list")
    i <- 1
    while (getTime(population) <= tmax) {
        rowVector[[i]] <- list(t  = getTime(population),
                               s1 = [email protected][1],
                               s2 = [email protected][2])
        population <- doStep(population)
        i <- i + 1
    }
    DT <- data.table::rbindlist(rowVector)
    return(DT)
}
# show solution

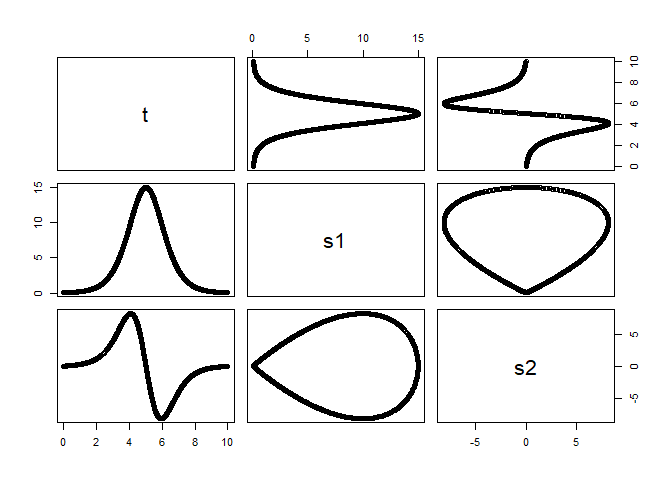

solution <- LogisticApp()
plot(solution)

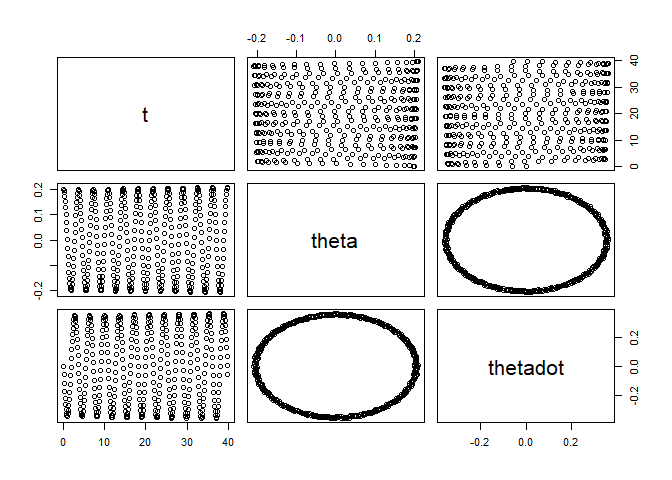

PendulumApp

# ++++++++++++++++++++++++++++++++++++++++++++++++++      example: PendulumApp.R
# Simulation of a pendulum using the EulerRichardson ODE solver
library(rODE)
suppressPackageStartupMessages(library(ggplot2))
importFromExamples("Pendulum.R")      # source the class

PendulumApp <- function(verbose = FALSE) {
    # initial values
    theta    <- 0.2
    thetaDot <- 0
    dt       <- 0.1
    ode <- new("ODE")
    pendulum <- Pendulum()
    [email protected][3] <- 0      # set time to zero, t = 0
    pendulum <- setState(pendulum, theta, thetaDot)
    pendulum <- setStepSize(pendulum, dt = dt) # using stepSize in RK4
    [email protected] <- setStepSize([email protected], dt) # set new step size
    rowvec <- vector("list")
    i <- 1
    while ([email protected][3] <= 40)    {
        rowvec[[i]] <- list(t     = [email protected][3],    # time
                            theta = [email protected][1],    # angle
                            thetadot = [email protected][2]) # derivative of angle
        pendulum <- step(pendulum)
        i <- i + 1
    }
    DT <- data.table::rbindlist(rowvec)
    return(DT)
}
# show solution
solution <- PendulumApp()
plot(solution)

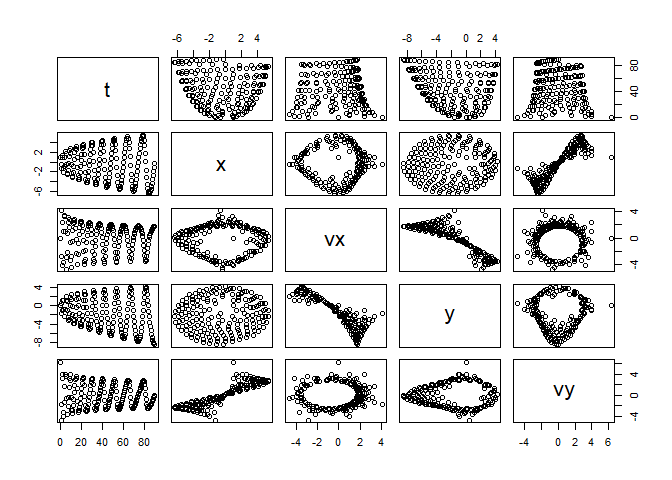

PlanetApp

# ++++++++++++++++++++++++++++++++++++++++++++++++++++++++  example: PlanetApp.R
# Simulation of Earth orbiting around the SUn using the Euler ODE solver
library(rODE)
importFromExamples("Planet.R")      # source the class

PlanetApp <- function(verbose = FALSE) {
    # x =  1, AU or Astronomical Units. Length of semimajor axis or the orbit
    # of the Earth around the Sun.
    x <- 1; vx <- 0; y <- 0; vy <- 6.28; t <- 0
    state <- c(x, vx, y, vy, t)
    dt <-  0.01
    planet <- Planet()
    [email protected] <- setStepSize([email protected], dt)
    planet <- init(planet, initState = state)
    rowvec <- vector("list")
    i <- 1
    # run infinite loop. stop with ESCAPE.
    while ([email protected][5] <= 90) {     # Earth orbit is 365 days around the sun
        rowvec[[i]] <- list(t  = [email protected][5],     # just doing 3 months
                            x  = [email protected][1],     # to speed up for CRAN
                            vx = [email protected][2],
                            y  = [email protected][3],
                            vy = [email protected][4])
        for (j in 1:5) {                 # advances time
            planet <- doStep(planet)
        }
        i <- i + 1
    }
    DT <- data.table::rbindlist(rowvec)
    return(DT)
}
# run the application
solution <- PlanetApp()
select_rows <- seq(1, nrow(solution), 10)      # do not overplot
solution <- solution[select_rows,]
plot(solution)

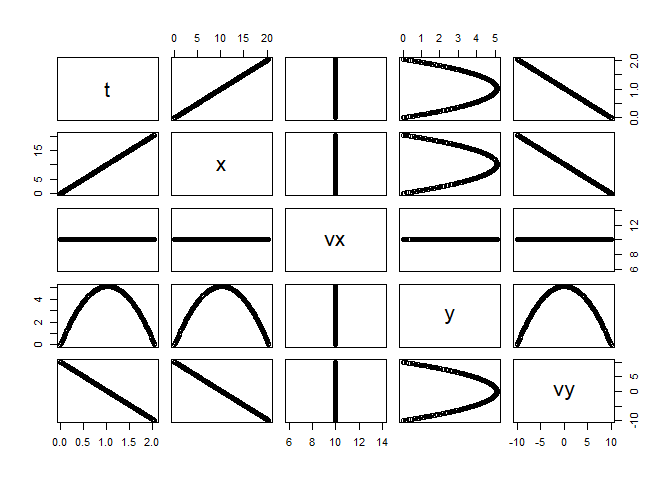

ProjectileApp

# +++++++++++++++++++++++++++++++++++++++++++++++++ application: ProjectileApp.R
#                                                      test Projectile with RK4
#                                                      originally uses Euler
library(rODE)
importFromExamples("Projectile.R")      # source the class

ProjectileApp <- function(verbose = FALSE) {
    # initial values
    x <- 0; vx <- 10; y <- 0; vy <- 10
    state <- c(x, vx, y, vy, 0)                        # state vector
    dt <- 0.01
    projectile <- Projectile()
    projectile <- setState(projectile, x, vx, y, vy)
    [email protected] <- init([email protected], 0.123)
    [email protected] <- setStepSize([email protected], dt)
    rowV <- vector("list")
    i <- 1
    while ([email protected][3] >= 0)    {
        rowV[[i]] <- list(t  = [email protected][5],
                          x  = [email protected][1],
                          vx = [email protected][2],
                          y  = [email protected][3],     # vertical position
                          vy = [email protected][4])
        projectile <- step(projectile)
        i <- i + 1
    }
    DT <- data.table::rbindlist(rowV)
    return(DT)
}

solution <- ProjectileApp()
plot(solution)

ReactionApp

# +++++++++++++++++++++++++++++++++++++++++++++++++++ application: ReactionApp.R
# ReactionApp solves an autocatalytic oscillating chemical
# reaction (Brusselator model) using
# a fourth-order Runge-Kutta algorithm.
library(rODE)
importFromExamples("Reaction.R")      # source the class

ReactionApp <- function(verbose = FALSE) {
    X  <- 1; Y <- 5;
    dt <- 0.1
    reaction <- Reaction(c(X, Y, 0))
    solver <- RK4(reaction)
    rowvec <- vector("list")
    i <- 1

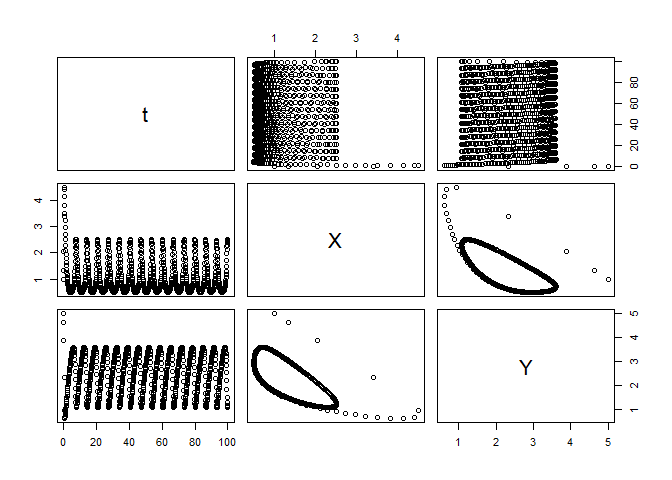

    while ([email protected]@state[3] < 100) {             # stop at t = 100
        rowvec[[i]] <- list(t = [email protected]@state[3],
                            X = [email protected]@state[1],
                            Y = [email protected]@state[2])
        solver <- step(solver)
        i <-  i + 1
    }
    DT <- data.table::rbindlist(rowvec)
    return(DT)
}

solution <- ReactionApp()
plot(solution)

RigidBodyNXFApp

# +++++++++++++++++++++++++++++++++++++++++++++++ application: RigidBodyNXFApp.R
# example of a nonstiff system is the system of equations describing
# the motion of a rigid body without external forces.
library(rODE)
importFromExamples("RigidBody.R")

# run the application
RigidBodyNXFApp <- function(verbose = FALSE) {
    # load the R class that sets up the solver for this application
    y1 <- 0   # initial y1 value
    y2 <- 1    # initial y2 value
    y3 <- 1    # initial y3 value
    dt <- 0.01 # delta time for step
    body <- RigidBodyNXF(y1, y2, y3)
    solver <- Euler(body)
    solver <- setStepSize(solver, dt)
    rowVector <- vector("list")
    i <- 1
    # stop loop when the body hits the ground

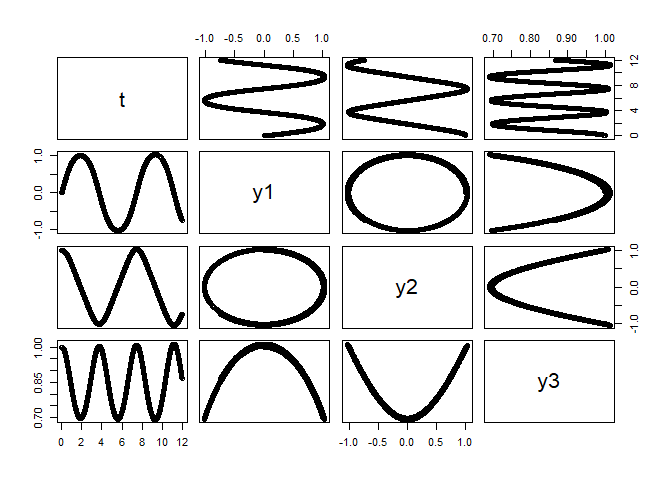

    while ([email protected][4] <= 12) {
        rowVector[[i]] <- list(t  = [email protected][4],
                               y1 = [email protected][1],
                               y2 = [email protected][2],
                               y3 = [email protected][3])
        solver <- step(solver)
        body <- [email protected]
        i <- i + 1
    }
    DT <- data.table::rbindlist(rowVector)
    return(DT)
}

# get the data table from the app
solution <- RigidBodyNXFApp()
plot(solution)

SHOApp

library(rODE)
importFromExamples("SHO.R")

# SHOApp.R
SHOApp <- function(...) {
    x <- 1.0; v <- 0; k <- 1.0; dt <- 0.01; tolerance <- 1e-3
    sho    <- SHO(x, v, k)
    solver_factory <- ODESolverFactory()
    solver <- createODESolver(solver_factory, sho, "DormandPrince45")
    # solver <- DormandPrince45(sho)                    # this can also be used
    solver <- setTolerance(solver, tolerance)
    solver <- init(solver, dt)
    i <- 1; rowVector <- vector("list")

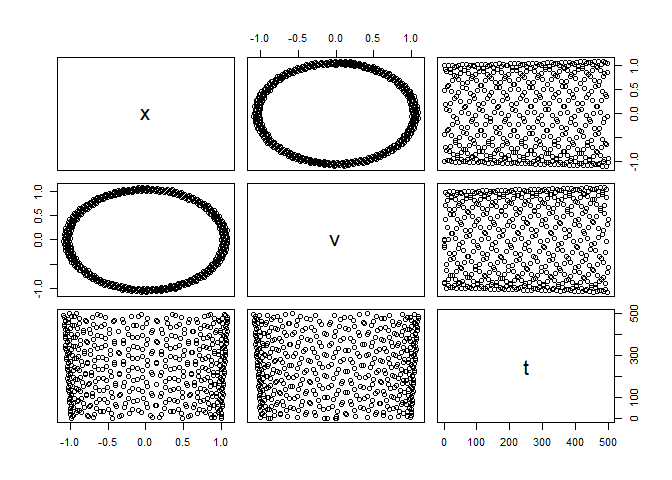

    while ([email protected][3] <= 500) {
        rowVector[[i]] <- list(x = [email protected][1],
                               v = [email protected][2],
                               t = [email protected][3])
        solver <- step(solver)
        sho    <- [email protected]
        i <- i + 1
    }
    return(data.table::rbindlist(rowVector))
}

solution <- SHOApp()
plot(solution)

SpringRK4App

# ++++++++++++++++++++++++++++++++++++++++++++++++++application:  SpringRK4App.R
# Simulation of a spring considering no friction
library(rODE)
importFromExamples("SpringRK4.R")

# run application
SpringRK4App <- function(verbose = FALSE) {
    theta    <- 0
    thetaDot <- -0.2
    tmax     <- 22; dt <- 0.1
    ode <- new("ODE")
    spring <- SpringRK4()
    [email protected][3] <- 0      # set time to zero, t = 0
    spring <- setState(spring, theta, thetaDot)
    spring <- setStepSize(spring, dt = dt) # using stepSize in RK4
    [email protected] <- setStepSize([email protected]deSolver, dt) # set new step size
    rowvec <- vector("list")
    i <- 1

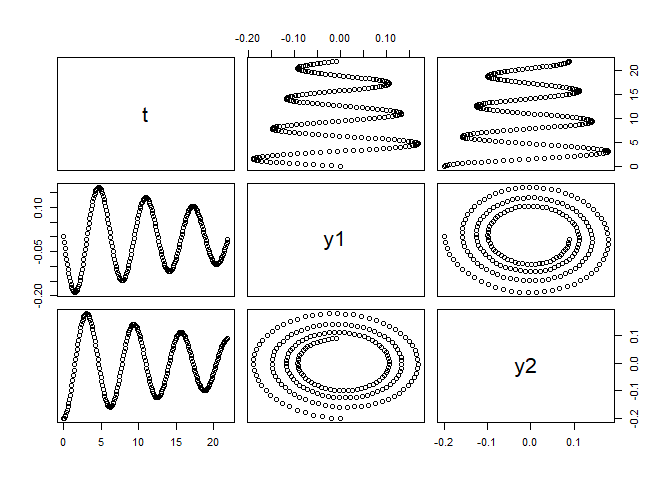

    while ([email protected][3] <= tmax)    {
        rowvec[[i]] <- list(t  = [email protected][3],      # angle
                            y1 = [email protected][1],      # derivative of the angle
                            y2 = [email protected][2])      # time
        i <- i + 1
        spring <- step(spring)
    }
    DT <- data.table::rbindlist(rowvec)
    return(DT)
}

# show solution
solution <- SpringRK4App()
plot(solution)

VanderpolApp

# ++++++++++++++++++++++++++++++++++++++++++++++++   application: VanderPolApp.R
# Solution of the Van der Pol equation
#
library(rODE)
importFromExamples("VanderPol.R")

# run the application
VanderpolApp <- function(verbose = FALSE) {
    # set the orbit into a predefined state.
    y1 <- 2; y2 <- 0; dt <- 0.1;
    rigid_body <- VanderPol(y1, y2)
    solver <- RK45(rigid_body)
    rowVector <- vector("list")
    i <- 1

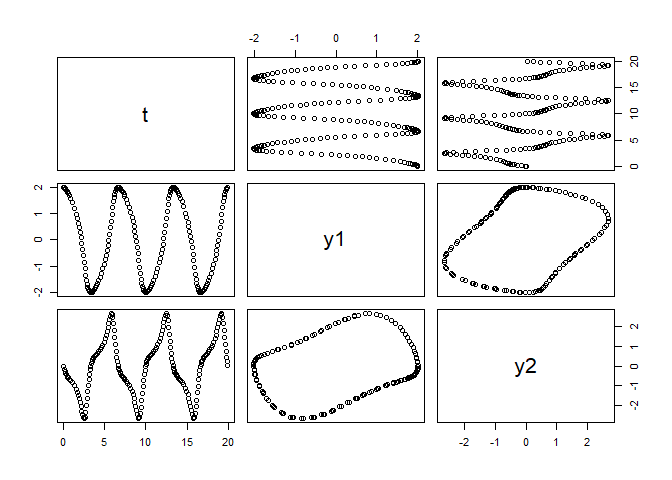

    while ([email protected][3] <= 20) {
        rowVector[[i]] <- list(t  = [email protected][3],
                               y1 = [email protected][1],
                               y2 = [email protected][2])
        solver <- step(solver)
        rigid_body <- [email protected]
        i <-  i + 1
    }
    DT <- data.table::rbindlist(rowVector)
    return(DT)
}
# show solution
solution <- VanderpolApp()
plot(solution)

VanderpolMuTimeControlApp

# +++++++++++++++++++++++++++++++++++++     example: VanderpolMuTimeControlApp.R
# This is a modification of the original Vanderpol.R script
# In this version, we will add tha ability of setting mu and time lapse.
# This example is also shown in the Matlab help guide
library(rODE)
importFromExamples("VanderpolMuTimeControl.R")

# run the application
VanderpolMuTimeControlApp <- function(verbose = FALSE) {
    # set the orbit into a predefined state.
    y1 <- 2; y2 <- 0; mu <- 10; tmax <- mu * 3; dt <- 0.01
    rigid_body <- VanderPol(y1, y2, mu)
    solver <- RK45(rigid_body)
    rowVector <- vector("list")
    i <- 1

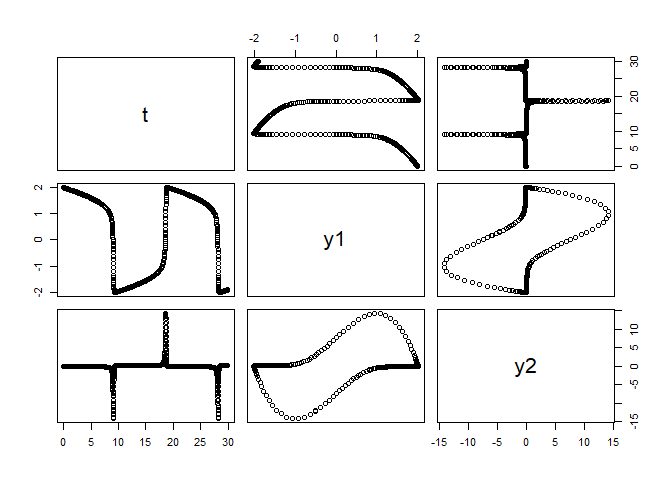

    while ([email protected][3] <= tmax) {
        rowVector[[i]] <- list(t  = [email protected][3],
                               y1 = [email protected]tate[1],
                               y2 = [email protected][2]
                               )
        solver <- step(solver)
        rigid_body <- [email protected]
        i <-  i + 1
    }
    DT <- data.table::rbindlist(rowVector)
    return(DT)
}

# show solution
solution <- VanderpolMuTimeControlApp()
plot(solution)

References

The following books and papers were consulted during the development of this package:

[1] R. Ashino, M. Nagase and R. Vaillancourt. "Behind and beyond the Matlab ODE suite". In: Computers & Mathematics with Applications 40.4-5 (Aug. 2000), pp. 491-512. DOI: 10.1016/s0898-1221(00)00175-9.

[2] K. Atkinson, W. Han and D. E. Stewart. Numerical Solution of Ordinary Differential Equations. Wiley, 2009. ISBN: 978-0-470-04294-6.

[3] J. R. Dormand and P. J. Prince. "A family of embedded Runge-Kutta formulae". In: Journal of computational and applied mathematics 6.1 (Mar. 1980), pp. 19-26. DOI: 10.1016/0771-050x(80)90013-3.

[4] H. Gould, J. Tobochnik and W. Christian. An Introduction to Computer Simulation Methods: Applications To Physical Systems. CreateSpace Independent Publishing Platform, 2017. ISBN: 978-1974427475.

[5] T. Kimura. "On dormand-prince method". In: Retrieved April 27 (2009), p. 2014. <URL: http://depa.fquim.unam.mx/amyd/archivero/DormandPrince_19856.pdf>.

[6] M. A. Nobles. Using the Computer to Solve Petroleum Engineering Problems. Gulf Publishing Co, 1974. ISBN: 978-0872018860.

[7] T. Ritschel. "Numerical Methods For Solution of Di<U+FB00>erential Equations". Cand. thesis. DTU supervisor: John Bagterp Jørgensen, [email protected], DTU Compute. Technical University of Denmark, Department of Applied Mathematics and Computer Science, 2013, p. 224. <URL: http://www.compute.dtu.dk/English.aspx>.

[8] R. Sincovec. "Numerical Reservoir Simulation Using an Ordinary-Differential-Equations Integrator". In: Society of Petroleum Engineers Journal 15.03 (Jun. 1975), pp. 255-264. DOI: 10.2118/5104-pa.

[9] K. Soetaert, T. Petzoldt and R. W. Setzer. "Solving differential equations in R: package deSolve". In: Journal of Statistical Software 33 (2010).

News

Reference manual

It appears you don't have a PDF plugin for this browser. You can click here to download the reference manual.

install.packages("rODE")

0.99.6 by Alfonso R. Reyes, 7 months ago


https://github.com/f0nzie/rODE


Browse source code at https://github.com/cran/rODE


Authors: Alfonso R. Reyes [aut, cre]


Documentation:   PDF Manual


Task views: Differential Equations


GPL-2 license


Imports methods, data.table

Suggests knitr, testthat, rmarkdown, ggplot2, dplyr, tidyr, covr, scales


See at CRAN
