Fit Text Inside a Box in 'ggplot2'

Provides 'ggplot2' geoms to fit text into a box by growing, shrinking or wrapping the text.


Travis-CI BuildStatus CRAN_Status_Badge

‘ggfittext’ provides a ‘ggplot2’ geom for fitting text inside a box

Install the release version of ‘ggfittext’ from CRAN:

install.packages("ggfittext")

If you want the development version, install it from GitHub:

devtools::install_github("wilkox/ggfittext")

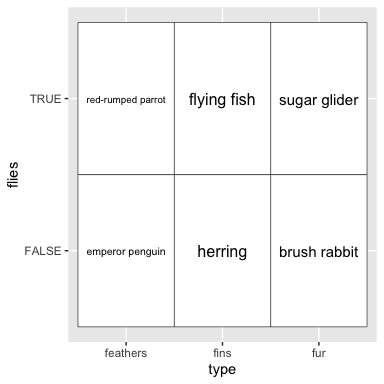

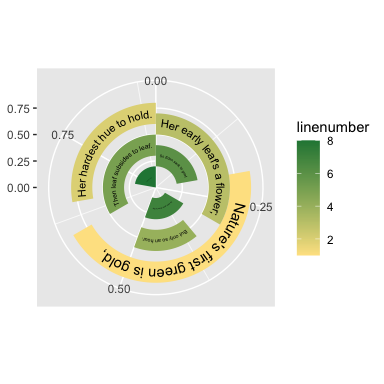

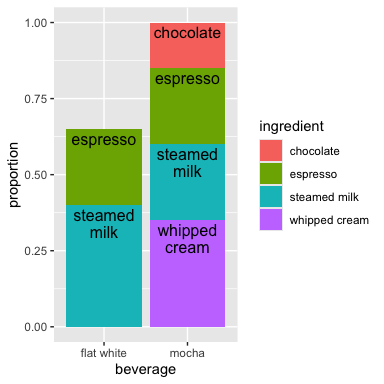

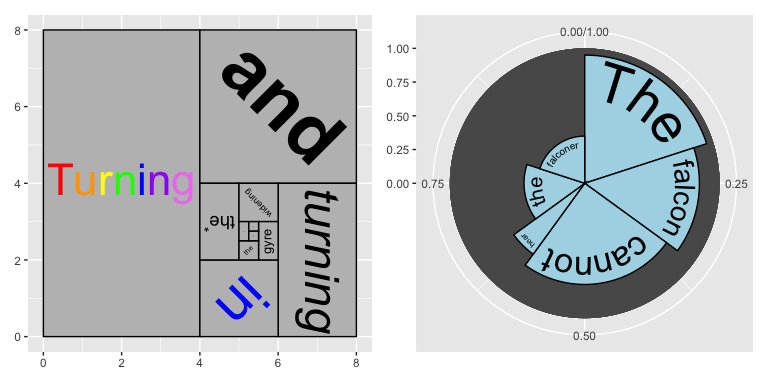

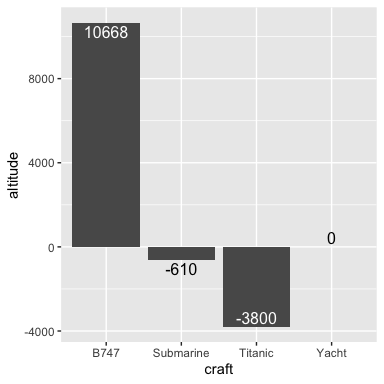

Fitting text inside a box

Sometimes you want to draw some text in a ‘ggplot2’ plot so that it fits inside a defined area. For example, you might want to label tiles in a heat map without letting the labels spill over into other tiles; or you might want to constrain some point labels to imaginary boxes so they don’t get too big. It’s possible to achieve this by manually fiddling with the text size, but this is both tedious and un-reproducible.

‘ggfittext’ provides a special geom called geom_fit_text() that automates fitting text inside a box. It works more or less like ggplot2::geom_text(), but provides some additional aesthetics and options that let you specify the box in which the text is to fit and how to make it fit.

library(ggplot2)
library(ggfittext)

flyers <- data.frame(
  vehicle = rep(c("kite", "jumbo jet", "space shuttle", "dyson sphere"), 2),
  xmin = rep(c(52.5, 45, 30, 0), 2),
  xmax = rep(c(67.5, 75, 90, 120), 2),
  ymin = rep(c(0, 15, 35, 60), 2),
  ymax = rep(c(10, 30, 55, 85), 2),
  geom = factor(c(rep("geom_text", 4), rep("geom_fit_text", 4)),
                levels = c("geom_text", "geom_fit_text"))
)

ggplot(flyers, aes(label = vehicle, xmin = xmin, xmax = xmax, ymin = ymin,
                   ymax = ymax)) +
  geom_rect() +
  geom_text(data = subset(flyers, geom == "geom_text"),
            aes(x = (xmin + xmax) / 2, y = (ymin + ymax) / 2)) +
  geom_fit_text(data = subset(flyers, geom == "geom_fit_text")) +
  facet_wrap( ~ geom) +
  labs(x = "", y = "")

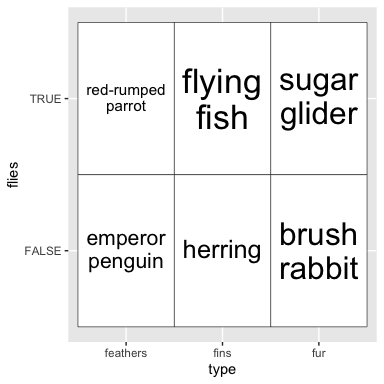

You can define the width of the box with either ‘xmin’ and ‘xmax’ aesthetics, or alternatively with ‘x’ (for the horizontal centre of the box) and ‘width’ (in millimetres). Likewise, you can use either ‘ymin’ and ‘ymax’ or ‘y’ and ‘height’. The ‘x/width’ and ‘y/height’ aesthetics can be useful when using a discrete axis.

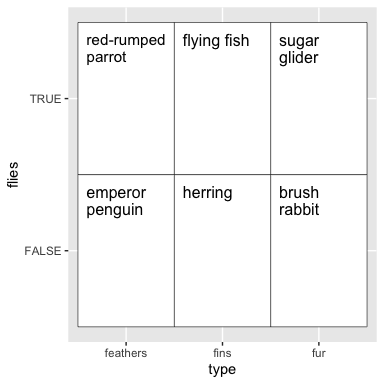

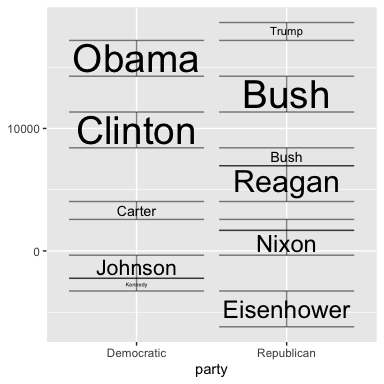

You can specify where in the box to place the text with the place argument, and a minimum point size for the text with the min.size argument. (Any text that would need to be smaller than min.size to fit the box will be hidden.)

ggplot(flyers, aes(label = vehicle, xmin = xmin, xmax = xmax, ymin = ymin,
                   ymax = ymax)) +
  geom_rect() +
  geom_text(data = subset(flyers, geom == "geom_text"),
            aes(x = (xmin + xmax) / 2, y = (ymin + ymax) / 2)) +
  geom_fit_text(data = subset(flyers, geom == "geom_fit_text"),
                place = "top", min.size = 6) +
  facet_wrap( ~ geom) +
  labs(x = "", y = "")

Text can be placed in any corner (‘topleft’, ‘topright’, …) or at the midpoint of any side (‘bottom’, ‘left’, …), as well as the default ‘centre’.

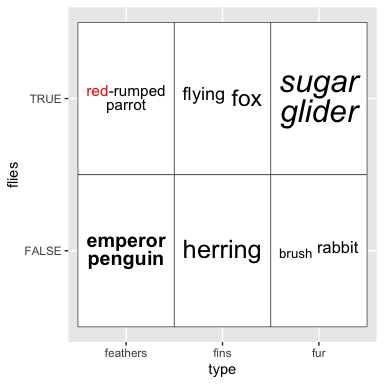

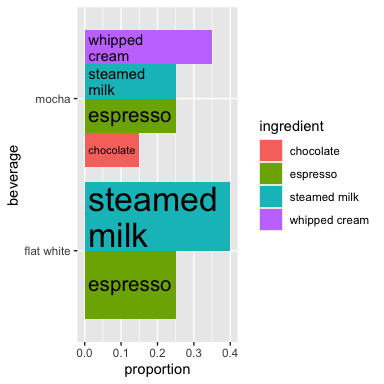

Growing text

With the grow = TRUE argument, text will be made to fill the box completely, whether that requires growing or shrinking it.

ggplot(flyers, aes(label = vehicle, xmin = xmin, xmax = xmax, ymin = ymin,
                   ymax = ymax)) +
  geom_rect() +
  geom_text(data = subset(flyers, geom == "geom_text"),
            aes(x = (xmin + xmax) / 2, y = (ymin + ymax) / 2)) +
  geom_fit_text(data = subset(flyers, geom == "geom_fit_text"), grow = T) +
  facet_wrap( ~ geom, ncol = 1) +
  labs(x = "", y = "")

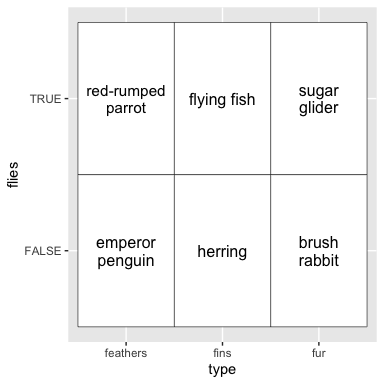

Reflowing text

With the reflow = TRUE argument, text will be reflowed (wrapped) as needed to fit the box. Reflowing is preferred to shrinking; that is, if the text can be made to fit by reflowing it without shrinking it, it will be reflowed only.

poem <- data.frame(
  text = rep(
    "Whose words these are I think I know.\nHe would prefer that they reflow",
    3
  ),
  xmin = rep(10, 3),
  xmax = rep(90, 3),
  ymin = rep(10, 3),
  ymax = rep(90, 3),
  fit = c("geom_text", "without reflow", "with reflow")
)

ggplot(poem, aes(xmin = xmin, xmax = xmax, ymin = ymin, ymax = ymax,
                 label = text)) +
  geom_rect() +
  geom_text(
    data = subset(poem, fit == "geom_text"),
    aes(x = (xmin + xmax) / 2, y = (ymin + ymax) / 2)
  ) +
  geom_fit_text(data = subset(poem, fit == "without reflow"), min.size = 0) +
  geom_fit_text(data = subset(poem, fit == "with reflow"), reflow = TRUE,
                min.size = 0) +
  lims(x = c(0, 100), y = c(0, 100)) +
  labs(x = "", y = "") +
  facet_wrap(~ fit)

Note that existing line breaks in the text are respected.

With both reflow = TRUE and grow = TRUE, the text will be reflowed to a form that best matches the aspect ratio of the box, then made to fill the box whether that requires shrinking it or growing it.

film <- data.frame(
  text = rep("duck soup", 3),
  xmin = rep(30, 3),
  xmax = rep(70, 3),
  ymin = rep(0, 3),
  ymax = rep(100, 3),
  fit = c("geom_text", "grow without reflow", "grow with reflow")
)

ggplot(film, aes(xmin = xmin, xmax = xmax, ymin = ymin, ymax = ymax,
                 label = text)) +
  geom_rect() +
  geom_text(
    data = subset(film, fit == "geom_text"),
    aes(x = (xmin + xmax) / 2, y = (ymin + ymax) / 2)
  ) +
  geom_fit_text(data = subset(film, fit == "grow without reflow"), grow = TRUE) +
  geom_fit_text(
    data = subset(film, fit == "grow with reflow"),
    grow = TRUE,
    reflow = TRUE
  ) +
  lims(x = c(0, 100), y = c(0, 100)) +
  labs(x = "", y = "") +
  facet_wrap(~ fit, ncol = 1)

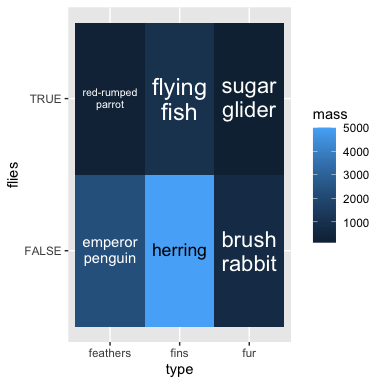

Example: a heatmap

tournament <- data.frame(
  teamA = rep(c("Radon Canyon Raiders", "Desert Bluffs Destroyers",
                "Old Town Orphans"), 3),
  teamB = c(rep("Coyote Corners Carolers", 3),
            rep("Sand Wastes Streetcleaners", 3),
            rep("Dog park Devils", 3)),
  venue = sample(c("Night Vale Stadium", "Big Rico's Sandlot With The Lot",
                   "Elementary School Playground",
                   "Night Vale Harbor and Waterfront Recreation Area"),
                 9, replace = T),
  game_time_mins = sample(999, 9)
  )

ggplot(tournament, aes(x = teamA, y = teamB, fill = game_time_mins,
                       label = venue)) +
  geom_tile() +
  geom_fit_text(width = 35, height = 25, min.size = 0, reflow = T, grow = T,
                colour = "white")

News

v0.5.0

Minor changes

  • Change R and grid dependency to 3.1

Bug fixes

  • Fix typo in README
  • Remove README.html so README renders correctly on GitHub

v0.4.3

Minor changes

  • Style change for CRAN submission.
  • Add example to geom_fit_text() documentation.

v0.4.2

Minor changes

  • Release version for CRAN submission.

Bug fixes

  • Tidy up some namespace issues (thanks to @JohnsonHsieh)
  • Rewrite documentation
  • Add example to README, edit and produce vignette
  • Misc. minor fixes to pass R CMD check

Minor changes

  • Deprecate geom_shrink_text() and geom_grow_text()

v0.4.1

Bug fixes

  • Fix wide characters causing problems in non-UTF-8 locales.

v0.4

Major changes

  • Add ‘reflow’ option to geom_fit_text.

Bug fixes

  • Fix height calculation on text with ascenders/descenders.

v0.3

Major changes

  • Much faster text resizing algorithm
  • Rename arguments: ‘discrete.width’ and ‘discrete.height’ to ‘width’ and ‘height’; ‘fill.text’ to ‘grow’

v0.2

Major changes

  • geom_shrink_text and geom_fill_text replaced with single geom_fit_text with fill_text option. (The old geoms still work, but as wrappers for geom_fit_text).
  • Add support for discrete axes with new discrete.height and discrete.width options.

Bug fixes

  • Font sizes now correctly and consistently represented as point sizes.

v0.1

First release!

Reference manual

It appears you don't have a PDF plugin for this browser. You can click here to download the reference manual.

install.packages("ggfittext")

0.6.0 by David Wilkins, 15 days ago


https://github.com/wilkox/ggfittext


Report a bug at https://github.com/wilkox/ggfittext/issues


Browse source code at https://github.com/cran/ggfittext


Authors: David Wilkins [aut, cre]


Documentation:   PDF Manual


GPL-2 license


Imports grid, stringi, ggplot2

Suggests knitr, rmarkdown, testthat


Imported by breathtestcore, gggenes, metacoder, treemapify.

Suggested by ggalluvial.


See at CRAN
