Tools for Analyzing Mixed Effect Regression Models

Provides methods for extracting results from mixed-effect model objects fit with the 'lme4' package. Allows construction of prediction intervals efficiently from large scale linear and generalized linear mixed-effects models.


merTools

A package for getting the most of our multilevel models in R

by Jared E. Knowles and Carl Frederick

Working with generalized linear mixed models (GLMM) and linear mixed models (LMM) has become increasingly easy with advances in the lme4 package. As we have found ourselves using these models more and more within our work, we, the authors, have developed a set of tools for simplifying and speeding up common tasks for interacting with merMod objects from lme4. This package provides those tools.

install_github("jknowles/merTools")

# CRAN version
install.packages("merTools")
  • Improve handling of formulas. If the original merMod has functions specified in the formula, the draw and wiggle functions will check for this and attempt to respect these variable transformations. Where this is not possible a warning will be issued. Most common transformations are respected as long as the the original variable is passed untransformed to the model.
  • Change the calculations of the residual variance. Previously residual variance was used to inflate both the variance around the fixed parameters and around the predicted values themselves. This was incorrect and resulted in overly conservative estimates. Now the residual variance is appropriately only used around the final predictions
  • New option for predictInterval that allows the user to return the full interval, the fixed component, the random component, or the fixed and each random component separately for each observation
  • Fixed a bug with slope+intercept random terms that caused a miscalculation of the random component
  • Add comparison to rstanarm to the Vignette
  • Make expectedRank output more tidy like and allow function to calculate expected rank for all terms at once
  • Note, this breaks the API by changing the names of the columns in the output of this function
  • Remove tests that test for timing to avoid issues with R-devel JIT compiler
  • Remove plyr and replace with dplyr
  • Fix issue #62 varList will now throw an error if == is used instead of =
  • Fix issue #54 predictInterval did not included random effects in calculations when newdata had more than 1000 rows and/or user specified parallel=TRUE. Note: fix was to disable the .paropts option for predictInterval ... user can still specify for temporary backward compatibility but this should be either removed or fixed in the permanent solution.
  • Fix issue #53 about problems with predictInterval when only specific levels of a grouping factor are in newdata with the colon specification of interactions
  • Fix issue #52 ICC wrong calculations ... we just needed to square the standard deviations that we pulled

See NEWS.md for more details.

The easiest way to demo the features of this application is to use the bundled Shiny application which launches a number of the metrics here to aide in exploring the model. To do this:

devtools::install_github("jknowles/merTools")
library(merTools)
m1 <- lmer(y ~ service + lectage + studage + (1|d) + (1|s), data=InstEval)
shinyMer(m1, simData = InstEval[1:100, ]) # just try the first 100 rows of data

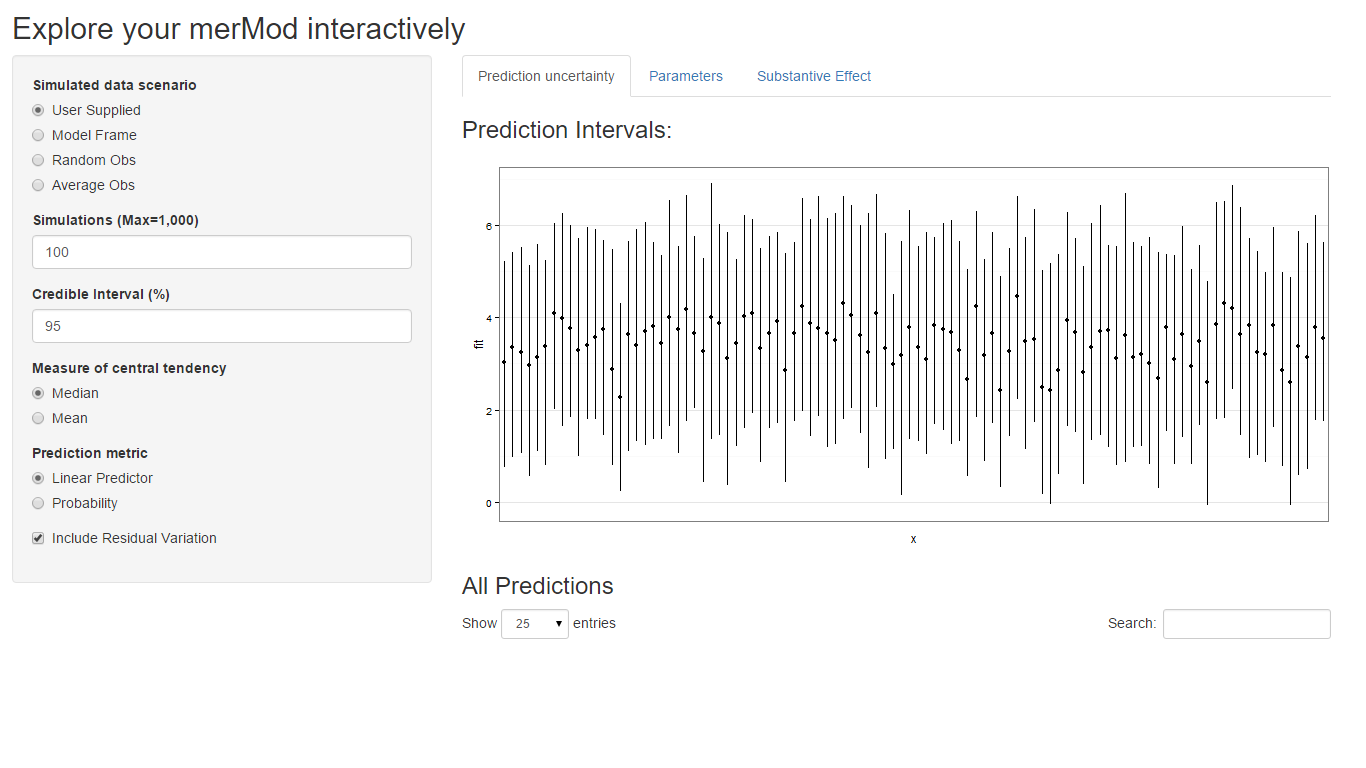

On the first tab, the function presents the prediction intervals for the data selected by user which are calculated using the predictInterval function within the package. This function calculates prediction intervals quickly by sampling from the simulated distribution of the fixed effect and random effect terms and combining these simulated estimates to produce a distribution of predictions for each observation. This allows prediction intervals to be generated from very large models where the use of bootMer would not be feasible computationally.

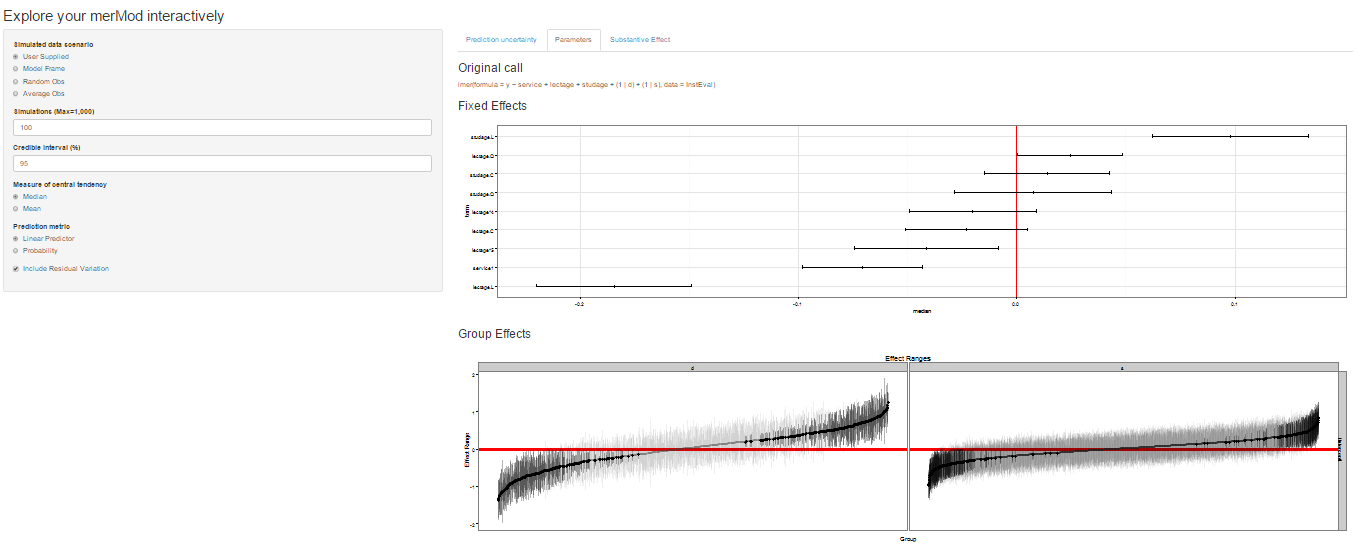

On the next tab the distribution of the fixed effect and group-level effects is depicted on confidence interval plots. These are useful for diagnostics and provide a way to inspect the relative magnitudes of various parameters. This tab makes use of four related functions in merTools: FEsim, plotFEsim, REsim and plotREsim which are available to be used on their own as well.

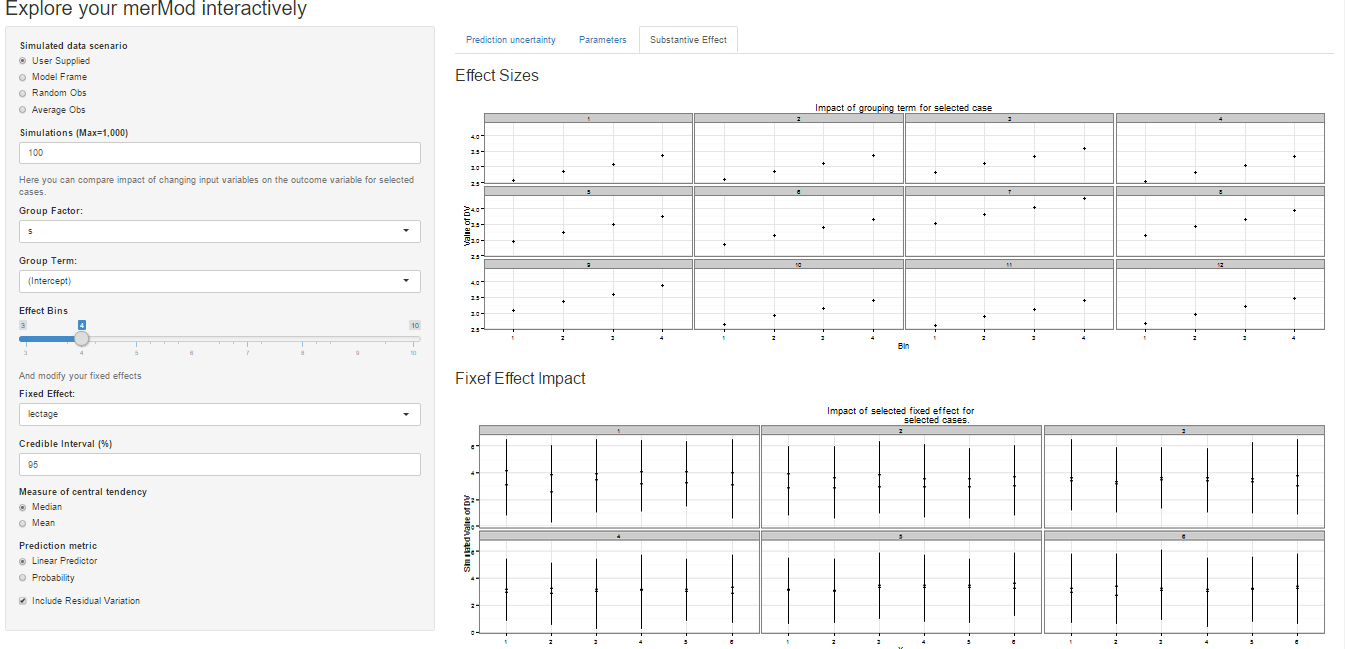

On the third tab are some convenient ways to show the influence or magnitude of effects by leveraging the power of predictInterval. For each case, up to 12, in the selected data type, the user can view the impact of changing either one of the fixed effect or one of the grouping level terms. Using the REimpact function, each case is simulated with the model's prediction if all else was held equal, but the observation was moved through the distribution of the fixed effect or the random effect term. This is plotted on the scale of the dependent variable, which allows the user to compare the magnitude of effects across variables, and also between models on the same data.

Standard prediction looks like so.

predict(m1, newdata = InstEval[1:10, ])
#>        1        2        3        4        5        6        7        8
#> 3.146336 3.165211 3.398499 3.114248 3.320686 3.252670 4.180896 3.845218
#>        9       10
#> 3.779336 3.331012

With predictInterval we obtain predictions that are more like the standard objects produced by lm and glm:

#predictInterval(m1, newdata = InstEval[1:10, ]) # all other parameters are optional
predictInterval(m1, newdata = InstEval[1:10, ], n.sims = 500, level = 0.9,
                stat = 'median')
#>         fit      upr      lwr
#> 1  3.114604 5.156392 1.081717
#> 2  3.117272 5.030120 1.242363
#> 3  3.423697 5.532564 1.322712
#> 4  3.083484 5.122665 1.188285
#> 5  3.213532 5.172851 1.192604
#> 6  3.096635 5.165586 1.265317
#> 7  4.154033 6.207856 2.062457
#> 8  3.874819 5.947561 1.821840
#> 9  3.819173 5.881570 1.796024
#> 10 3.255822 5.234510 1.348180

Note that predictInterval is slower because it is computing simulations. It can also return all of the simulated yhat values as an attribute to the predict object itself.

predictInterval uses the sim function from the arm package heavily to draw the distributions of the parameters of the model. It then combines these simulated values to create a distribution of the yhat for each observation.

We can also explore the components of the prediction interval by asking predictInterval to return specific components of the prediction interval.

predictInterval(m1, newdata = InstEval[1:10, ], n.sims = 200, level = 0.9,
                stat = 'median', which = "all")
#>      effect         fit      upr        lwr obs
#> 1  combined  2.94585696 5.021224  0.9469043   1
#> 2  combined  3.27155895 4.976318  1.4859477   2
#> 3  combined  3.47215103 5.482550  1.4411054   3
#> 4  combined  3.20818135 5.115176  1.2518959   4
#> 5  combined  3.30141732 5.125936  1.4969704   5
#> 6  combined  3.18741956 5.012293  1.1022775   6
#> 7  combined  4.02052064 6.112281  2.1401665   7
#> 8  combined  3.81252578 5.970377  1.6762839   8
#> 9  combined  3.95422686 5.724368  1.8217968   9
#> 10 combined  3.37779081 5.589283  1.4468875  10
#> 11        s  0.15184349 2.192223 -1.5854914   1
#> 12        s  0.18125006 2.078097 -1.8952277   2
#> 13        s  0.11049947 2.857706 -1.9754246   3
#> 14        s  0.18872857 2.182267 -1.9760269   4
#> 15        s  0.01356864 1.855524 -2.0058637   5
#> 16        s -0.08246566 1.552007 -1.9481578   6
#> 17        s  0.45712964 2.365747 -1.6018123   7
#> 18        s  0.35318191 2.466022 -1.7020094   8
#> 19        s -0.04810836 2.443321 -1.6521329   9
#> 20        s  0.48134347 2.294846 -1.5030829  10
#> 21        d -0.23909115 1.953999 -2.1678440   1
#> 22        d -0.18816371 1.894217 -2.1977454   2
#> 23        d -0.18722419 1.947029 -2.0175046   3
#> 24        d -0.29574341 1.689394 -2.0905452   4
#> 25        d  0.00607903 1.955012 -1.8320733   5
#> 26        d  0.08034936 1.767552 -1.4940104   6
#> 27        d  0.72769488 2.719575 -1.1363420   7
#> 28        d  0.19514852 1.934265 -1.6582669   8
#> 29        d  0.22215313 2.144313 -1.9546232   9
#> 30        d -0.32046741 1.241536 -2.4551447  10
#> 31    fixed  3.15255529 5.103040  1.4456085   1
#> 32    fixed  3.15208224 4.971556  1.5238647   2
#> 33    fixed  3.07414134 4.965873  1.3234276   3
#> 34    fixed  3.15997183 4.854703  1.1075294   4
#> 35    fixed  3.31791081 5.248444  1.3468899   5
#> 36    fixed  3.28681289 5.262730  1.0778400   6
#> 37    fixed  3.21353040 5.345447  1.4695929   7
#> 38    fixed  3.37980340 5.339094  1.4238363   8
#> 39    fixed  3.34750489 5.124405  1.4098634   9
#> 40    fixed  3.14722350 5.331178  1.2528532  10

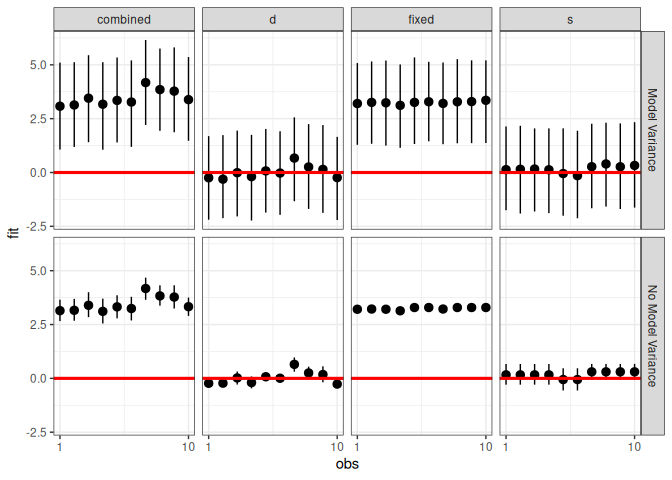

This can lead to some useful plotting:

plotdf <- predictInterval(m1, newdata = InstEval[1:10, ], n.sims = 2000,
                          level = 0.9, stat = 'median', which = "all",
                          include.resid.var = FALSE)
plotdfb <- predictInterval(m1, newdata = InstEval[1:10, ], n.sims = 2000,
                          level = 0.9, stat = 'median', which = "all",
                          include.resid.var = TRUE)

plotdf <- bind_rows(plotdf, plotdfb, .id = "residVar")
plotdf$residVar <- ifelse(plotdf$residVar == 1, "No Model Variance",
                          "Model Variance")

ggplot(plotdf, aes(x = obs, y = fit, ymin = lwr, ymax = upr)) +
  geom_pointrange() +
  geom_hline(yintercept = 0, color = I("red"), size = 1.1) +
  scale_x_continuous(breaks = c(1, 10)) +
  facet_grid(residVar~effect) + theme_bw()

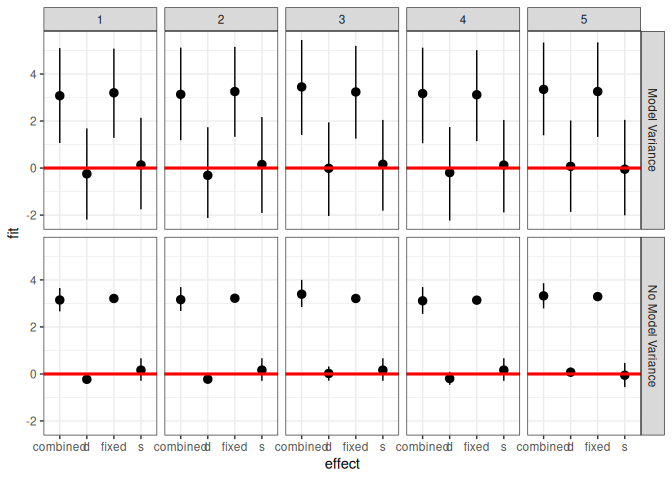

We can also investigate the makeup of the prediction for each observation.

ggplot(plotdf[plotdf$obs < 6,],
       aes(x = effect, y = fit, ymin = lwr, ymax = upr)) +
  geom_pointrange() +
  geom_hline(yintercept = 0, color = I("red"), size = 1.1) +
  facet_grid(residVar~obs) + theme_bw()

merTools also provides functionality for inspecting merMod objects visually. The easiest are getting the posterior distributions of both fixed and random effect parameters.

feSims <- FEsim(m1, n.sims = 100)
head(feSims)
#>          term        mean      median         sd
#> 1 (Intercept)  3.22451072  3.22467380 0.01986621
#> 2    service1 -0.07276963 -0.07311372 0.01325825
#> 3   lectage.L -0.18689581 -0.18670767 0.01655902
#> 4   lectage.Q  0.02340434  0.02353874 0.01168251
#> 5   lectage.C -0.02371317 -0.02476775 0.01324309
#> 6   lectage^4 -0.01940582 -0.01863110 0.01268280

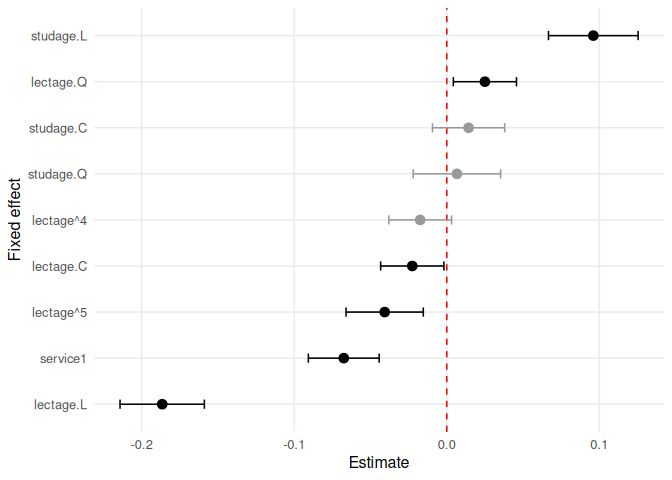

And we can also plot this:

plotFEsim(FEsim(m1, n.sims = 100), level = 0.9, stat = 'median', intercept = FALSE)

We can also quickly make caterpillar plots for the random-effect terms:

reSims <- REsim(m1, n.sims = 100)
head(reSims)
#>   groupFctr groupID        term        mean      median        sd
#> 1         s       1 (Intercept)  0.15588013  0.20416978 0.3020464
#> 2         s       2 (Intercept) -0.05444166 -0.05035208 0.3477367
#> 3         s       3 (Intercept)  0.33650172  0.35410975 0.2983894
#> 4         s       4 (Intercept)  0.24081609  0.22966938 0.2836278
#> 5         s       5 (Intercept)  0.04425092  0.04415465 0.3224734
#> 6         s       6 (Intercept)  0.09972308  0.08947532 0.2295493

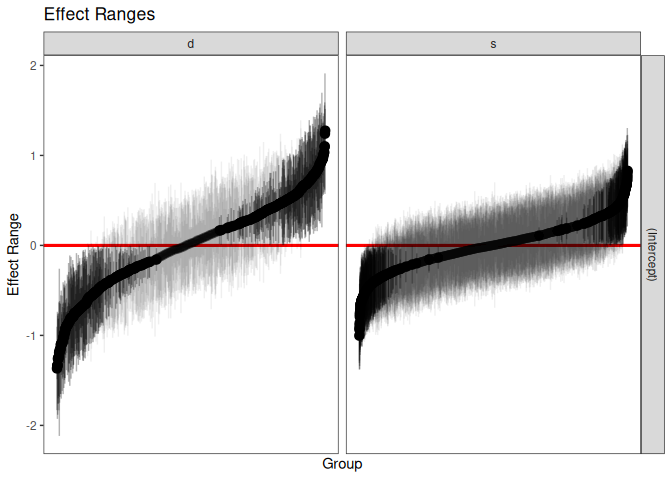

plotREsim(REsim(m1, n.sims = 100), stat = 'median', sd = TRUE)

Note that plotREsim highlights group levels that have a simulated distribution that does not overlap 0 -- these appear darker. The lighter bars represent grouping levels that are not distinguishable from 0 in the data.

Sometimes the random effects can be hard to interpret and not all of them are meaningfully different from zero. To help with this merTools provides the expectedRank function, which provides the percentile ranks for the observed groups in the random effect distribution taking into account both the magnitude and uncertainty of the estimated effect for each group.

ranks <- expectedRank(m1, groupFctr = "d")
head(ranks)
#>   groupFctr groupLevel       term   estimate  std.error       ER pctER
#> 2         d          1 _Intercept  0.3944915 0.08665148 835.3004    74
#> 3         d          6 _Intercept -0.4428947 0.03901987 239.5364    21
#> 4         d          7 _Intercept  0.6562682 0.03717199 997.3570    88
#> 5         d          8 _Intercept -0.6430679 0.02210017 138.3444    12
#> 6         d         12 _Intercept  0.1902942 0.04024062 702.3412    62
#> 7         d         13 _Intercept  0.2497466 0.03216254 750.0176    66

A nice features expectedRank is that you can return the expected rank for all factors simultaneously and use them:

ranks <- expectedRank(m1)
head(ranks)
#>   groupFctr groupLevel       term    estimate  std.error       ER pctER
#> 2         s          1 _Intercept  0.16732726 0.08165631 1931.569    65
#> 3         s          2 _Intercept -0.04409515 0.09234207 1368.161    46
#> 4         s          3 _Intercept  0.30382126 0.05204068 2309.940    78
#> 5         s          4 _Intercept  0.24756085 0.06641676 2151.827    72
#> 6         s          5 _Intercept  0.05232309 0.08174096 1627.693    55
#> 7         s          6 _Intercept  0.10191623 0.06648372 1772.548    60

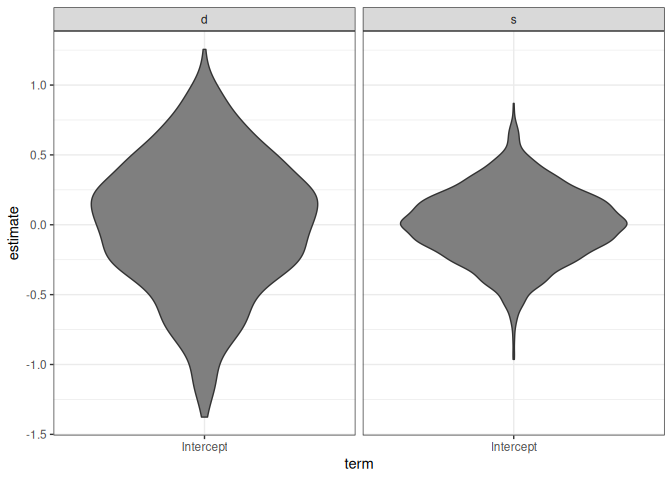

ggplot(ranks, aes(x = term, y = estimate)) +
  geom_violin(fill = "gray50") + facet_wrap(~groupFctr) +
  theme_bw()

It can still be difficult to interpret the results of LMM and GLMM models, especially the relative influence of varying parameters on the predicted outcome. This is where the REimpact and the wiggle functions in merTools can be handy.

impSim <- REimpact(m1, InstEval[7, ], groupFctr = "d", breaks = 5,
                   n.sims = 300, level = 0.9)
#> Warning: executing %dopar% sequentially: no parallel backend registered
impSim
#>   case bin   AvgFit     AvgFitSE nobs
#> 1    1   1 2.771751 2.882702e-04  193
#> 2    1   2 3.241434 7.178053e-05  240
#> 3    1   3 3.529431 5.378721e-05  254
#> 4    1   4 3.816805 6.711257e-05  265
#> 5    1   5 4.187946 2.075199e-04  176

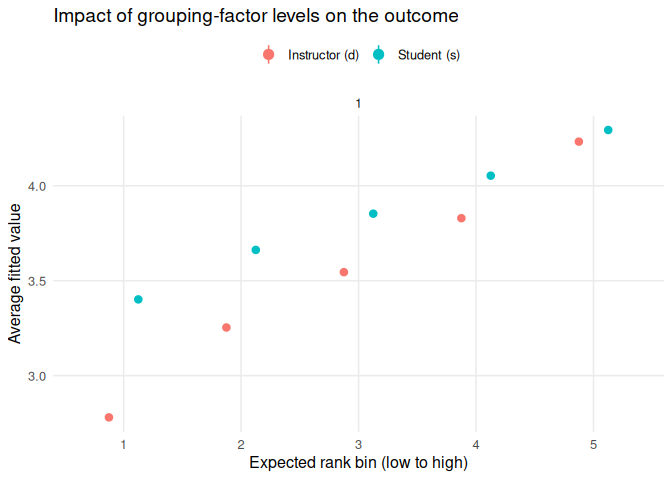

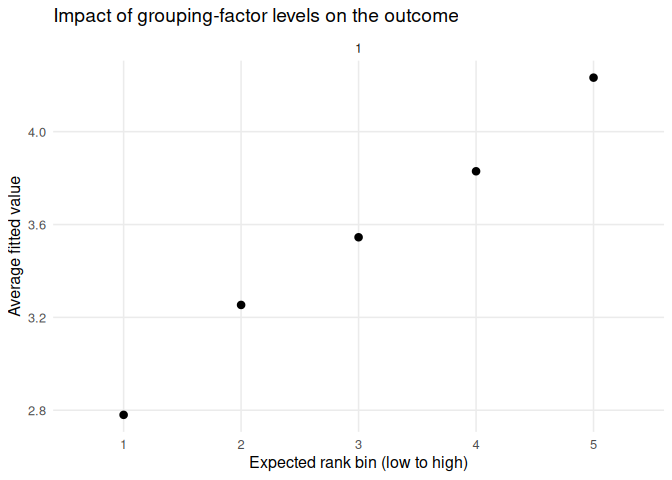

The result of REimpact shows the change in the yhat as the case we supplied to newdata is moved from the first to the fifth quintile in terms of the magnitude of the group factor coefficient. We can see here that the individual professor effect has a strong impact on the outcome variable. This can be shown graphically as well:

ggplot(impSim, aes(x = factor(bin), y = AvgFit, ymin = AvgFit - 1.96*AvgFitSE,
                   ymax = AvgFit + 1.96*AvgFitSE)) +
  geom_pointrange() + theme_bw() + labs(x = "Bin of `d` term", y = "Predicted Fit")

Here the standard error is a bit different -- it is the weighted standard error of the mean effect within the bin. It does not take into account the variability within the effects of each observation in the bin -- accounting for this variation will be a future addition to merTools.

Another feature of merTools is the ability to easily generate hypothetical scenarios to explore the predicted outcomes of a merMod object and understand what the model is saying in terms of the outcome variable.

Let's take the case where we want to explore the impact of a model with an interaction term between a category and a continuous predictor. First, we fit a model with interactions:

data(VerbAgg)
fmVA <- glmer(r2 ~ (Anger + Gender + btype + situ)^2 +
           (1|id) + (1|item), family = binomial,
           data = VerbAgg)
#> Warning in checkConv(attr(opt, "derivs"), opt$par, ctrl = control
#> $checkConv, : Model failed to converge with max|grad| = 0.028633 (tol =
#> 0.001, component 1)

Now we prep the data using the draw function in merTools. Here we draw the average observation from the model frame. We then wiggle the data by expanding the dataframe to include the same observation repeated but with different values of the variable specified by the var parameter. Here, we expand the dataset to all values of btype, situ, and Anger subsequently.

# Select the average case
newData <- draw(fmVA, type = "average")
newData <- wiggle(newData, var = "btype", values = unique(VerbAgg$btype))
newData <- wiggle(newData, var = "situ", values = unique(VerbAgg$situ))
newData <- wiggle(newData, var = "Anger", values = unique(VerbAgg$Anger))
head(newData, 10)
#>    r2 Anger Gender btype  situ id        item
#> 1   N    20      F curse other  3 S3WantCurse
#> 2   N    20      F scold other  3 S3WantCurse
#> 3   N    20      F shout other  3 S3WantCurse
#> 4   N    20      F curse  self  3 S3WantCurse
#> 5   N    20      F scold  self  3 S3WantCurse
#> 6   N    20      F shout  self  3 S3WantCurse
#> 7   N    11      F curse other  3 S3WantCurse
#> 8   N    11      F scold other  3 S3WantCurse
#> 9   N    11      F shout other  3 S3WantCurse
#> 10  N    11      F curse  self  3 S3WantCurse

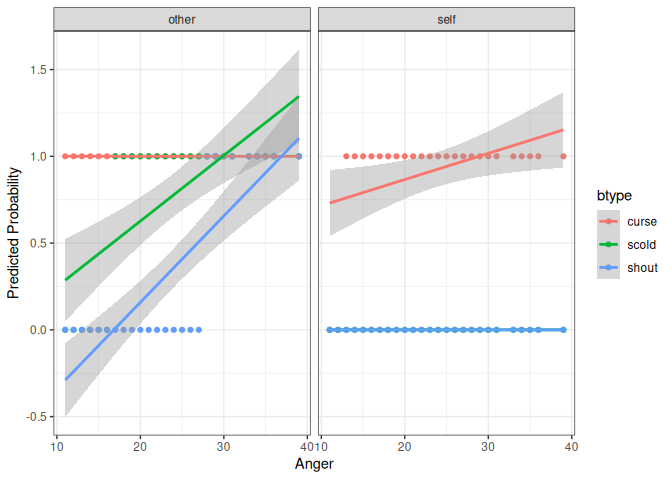

The next step is familiar -- we simply pass this new dataset to predictInterval in order to generate predictions for these counterfactuals. Then we plot the predicted values against the continuous variable, Anger, and facet and group on the two categorical variables situ and btype respectively.

plotdf <- predictInterval(fmVA, newdata = newData, type = "probability",
            stat = "median", n.sims = 1000)
plotdf <- cbind(plotdf, newData)

ggplot(plotdf, aes(y = fit, x = Anger, color = btype, group = btype)) +
  geom_point() + geom_smooth(aes(color = btype), method = "lm") +
  facet_wrap(~situ) + theme_bw() +
  labs(y = "Predicted Probability")

News

NEWS

  • Improve handling of formulas. If the original merMod has functions specified in the formula, the draw and wiggle functions will check for this and attempt to respect these variable transformations. Where this is not possible a warning will be issued. Most common transformations are respected as long as the the original variable is passed untransformed to the model.
  • Change the calculations of the residual variance. Previously residual variance was used to inflate both the variance around the fixed parameters and around the predicted values themselves. This was incorrect and resulted in overly conservative estimates. Now the residual variance is appropriately only used around the final predictions
  • Rebuilt the readme.md to include new information about new features
  • New option for predictInterval that allows the user to return the full interval, the fixed component, the random component, or the fixed and each random component separately for each observation
  • Fixed a bug with slope+intercept random terms that caused a miscalculation of the random component
  • Add comparison to rstanarm to the Vignette
  • Make expectedRank output more tidy like and allow function to calculate expected rank for all terms at once
    • Note, this breaks the API by changing the names of the columns in the output of this function
  • Remove tests that test for timing to avoid issues with R-devel JIT compiler
  • Remove plyr and replace with dplyr
  • Fix issue #62 varList will now throw an error if == is used instead of =
  • Fix issue #54 predictInterval did not included random effects in calculations when newdata had more than 1000 rows and/or user specified parallel=TRUE. Note: fix was to disable the .paropts option for predictInterval ... user can still specify for temporary backward compatibility but this should be either removed or fixed in the permanent solution.
  • Fix issue #53 about problems with predictInterval when only specific levels of a grouping factor are in newdata with the colon specification of interactions
  • Fix issue #52 ICC wrong calculations ... we just needed to square the standard deviations that we pulled
  • Fix dependency on lme4 to ensure compatibility with latest changes.
  • Coerce dplyr tbl and tbl_df objects to data.frames when they are passed to predictInterval and issue a warning
  • Try to coerce other data types passed to newdata in predictInterval before failing if coercion is unsuccessful
  • Numeric stabilization of unit tests by including seed values for random tests
  • Fix handling of models with nested random effect terms (GitHub #47)
  • Fix vignette images
  • Substantial performance enhancement for predictInterval which includes better handling of large numbers of parameters and simulations, performance tweaks for added speed (~10x), and parallel backend support (currently not optimized)
  • Add support for probit models and limited support for other glmm link functions, with warning (still do not know how to handle sigma parameter for these)
  • Add ability for user-specified seed for reproducibility
  • Add support for blmer objects from the blme package
  • Add a merModList object for lists of merMod objects fitted to subsets of a dataset, useful for imputation or for working with extremely large datasets
  • Add a print method for merModList to mimic output of summary.merMod
  • Add a VarCorr method for merModList
  • Add new package data to demonstrate replication from selected published texts on multilevel modeling using different software (1982 High School and Beyond Survey data)
  • Changed the default n.sims for the predictInterval function from 100 to 1,000 to give better coverage and reflect performance increase
  • Changed the default for level in predictInterval to be 0.8 instead of 0.95 to reflect that 0.95 prediction intervals are more conservative than most users need
  • For the next release (1.0) we are considering a permanent switch to C++ RMVN sampler courtesy of Giri Gopalan 's excellent FastGP package
  • Initial release
  • Provides predictInterval to allow prediction intervals from glmer and lmer objects
  • Provides FEsim and REsim to extract distributions of model parameters
  • Provides shinyMer an interactive shiny application for exploring lmer and glmer models
  • Provides expectedRank function to interpret the ordering of effects
  • Provides REimpact to simulate the impact of grouping factors on the outcome
  • Provides draw function to allow user to explore a specific observation
  • Provides wiggle function for user to build a simulated set of counterfactual cases to explore

Reference manual

It appears you don't have a PDF plugin for this browser. You can click here to download the reference manual.

install.packages("merTools")

0.3.0 by Jared E. Knowles, 9 months ago


Report a bug at https://www.github.com/jknowles/merTools


Browse source code at https://github.com/cran/merTools


Authors: Jared E. Knowles [aut, cre], Carl Frederick [aut]


Documentation:   PDF Manual


GPL (>= 2) license


Imports mvtnorm, DT, shiny, abind, ggplot2, blme, broom

Depends on arm, lme4, methods, dplyr

Suggests testthat, knitr, rmarkdown, foreach, parallel, rstanarm


Imported by ciTools, sjPlot.

Suggested by rmcorr.


See at CRAN
