Functions and Datasets for the Book by Keon-Woong Moon

Several analysis-related functions for the book entitled "R statistics and graph for medical articles" (written in Korean), version 1, by Keon-Woong Moon with Korean demographic data with several plot functions.



title: "Package moonBook" author: "Keon-Woong Moon" date: "2014-12-05" output: rmarkdown::html_vignette vignette: > %\VignetteIndexEntry{Vignette Title} %\VignetteEngine{knitr::rmarkdown} \usepackage[utf8]{inputenc}


Function "mytable"" produce table for descriptive analysis easily. It is most useful to make table to describe baseline charateristics common in medical research papers.

require(moonBook)
Loading required package: moonBook
data(acs)
mytable(Dx~.,data=acs)

                 Descriptive Statistics by 'Dx'
_________________________________________________________________
                     NSTEMI       STEMI     Unstable Angina   p
                    (N=153)      (N=304)        (N=400)
-----------------------------------------------------------------
 age              64.3 ± 12.3  62.1 ± 12.1    63.8 ± 11.0   0.073
 sex                                                        0.012
   - Female        50 (32.7%)   84 (27.6%)    153 (38.2%)
   - Male         103 (67.3%)  220 (72.4%)    247 (61.8%)
 cardiogenicShock                                           0.000
   - No           149 (97.4%)  256 (84.2%)   400 (100.0%)
   - Yes           4 ( 2.6%)    48 (15.8%)     0 ( 0.0%)
 entry                                                      0.001
   - Femoral       58 (37.9%)  133 (43.8%)    121 (30.2%)
   - Radial        95 (62.1%)  171 (56.2%)    279 (69.8%)
 EF               55.0 ±  9.3  52.4 ±  9.5    59.2 ±  8.7   0.000
 height           163.3 ±  8.2 165.1 ±  8.2  161.7 ±  9.7   0.000
 weight           64.3 ± 10.2  65.7 ± 11.6    64.5 ± 11.6   0.361
 BMI              24.1 ±  3.2  24.0 ±  3.3    24.6 ±  3.4   0.064
 obesity                                                    0.186
   - No           106 (69.3%)  209 (68.8%)    252 (63.0%)
   - Yes           47 (30.7%)   95 (31.2%)    148 (37.0%)
 TC               193.7 ± 53.6 183.2 ± 43.4  183.5 ± 48.3   0.057
 LDLC             126.1 ± 44.7 116.7 ± 39.5  112.9 ± 40.4   0.004
 HDLC             38.9 ± 11.9  38.5 ± 11.0    37.8 ± 10.9   0.501
 TG               130.1 ± 88.5 106.5 ± 72.0  137.4 ± 101.6  0.000
 DM                                                         0.209
   - No            96 (62.7%)  208 (68.4%)    249 (62.2%)
   - Yes           57 (37.3%)   96 (31.6%)    151 (37.8%)
 HBP                                                        0.002
   - No            62 (40.5%)  150 (49.3%)    144 (36.0%)
   - Yes           91 (59.5%)  154 (50.7%)    256 (64.0%)
 smoking                                                    0.000
   - Ex-smoker     42 (27.5%)   66 (21.7%)    96 (24.0%)
   - Never         50 (32.7%)   97 (31.9%)    185 (46.2%)
   - Smoker        61 (39.9%)  141 (46.4%)    119 (29.8%)
-----------------------------------------------------------------

The first argument of function mytable is an object of class formula. Left side of ~ must contain the name of one grouping variable or two grouping variables in an additive way(e.g. sex+group~), and the right side of ~ must have variables in an additive way. . is allowed on the right side of formula which means all variables in the data.frame specified by the 2nd argument data. The sample data 'acs' containing demographic data and laboratory data of 857 pateints with acute coronary syndrome(ACS). For more information about the data acs, type ?acs in your R console.

str(acs)
'data.frame':   857 obs. of  17 variables:
 $ age             : int  62 78 76 89 56 73 58 62 59 71 ...
 $ sex             : chr  "Male" "Female" "Female" "Female" ...
 $ cardiogenicShock: chr  "No" "No" "Yes" "No" ...
 $ entry           : chr  "Femoral" "Femoral" "Femoral" "Femoral" ...
 $ Dx              : chr  "STEMI" "STEMI" "STEMI" "STEMI" ...
 $ EF              : num  18 18.4 20 21.8 21.8 22 24.7 26.6 28.5 31.1 ...
 $ height          : num  168 148 NA 165 162 153 167 160 152 168 ...
 $ weight          : num  72 48 NA 50 64 59 78 50 67 60 ...
 $ BMI             : num  25.5 21.9 NA 18.4 24.4 ...
 $ obesity         : chr  "Yes" "No" "No" "No" ...
 $ TC              : num  215 NA NA 121 195 184 161 136 239 169 ...
 $ LDLC            : int  154 NA NA 73 151 112 91 88 161 88 ...
 $ HDLC            : int  35 NA NA 20 36 38 34 33 34 54 ...
 $ TG              : int  155 166 NA 89 63 137 196 30 118 141 ...
 $ DM              : chr  "Yes" "No" "No" "No" ...
 $ HBP             : chr  "No" "Yes" "Yes" "No" ...
 $ smoking         : chr  "Smoker" "Never" "Never" "Never" ...

You can choose the grouping variable(s) and row-variable(s) with the formula.

mytable(sex~age+Dx,data=acs)

         Descriptive Statistics by 'sex'
__________________________________________________
                       Female       Male       p
                       (N=287)     (N=570)
--------------------------------------------------
 age                 68.7 ± 10.7 60.6 ± 11.2 0.000
 Dx                                          0.012
   - NSTEMI          50 (17.4%)  103 (18.1%)
   - STEMI           84 (29.3%)  220 (38.6%)
   - Unstable Angina 153 (53.3%) 247 (43.3%)
--------------------------------------------------

You can choose row-variable(s) with . and + and - and variable name in an additive way.

mytable(am~.-hp-disp-cyl-carb-gear,data=mtcars)

   Descriptive Statistics by 'am'
____________________________________
            0           1        p
         (N=19)      (N=13)
------------------------------------
 mpg   17.1 ±  3.8 24.4 ±  6.2 0.000
 drat   3.3 ±  0.4  4.0 ±  0.4 0.000
 wt     3.8 ±  0.8  2.4 ±  0.6 0.000
 qsec  18.2 ±  1.8 17.4 ±  1.8 0.206
 vs                            0.556
   - 0 12 (63.2%)   6 (46.2%)
   - 1  7 (36.8%)   7 (53.8%)
------------------------------------

By default continuous variables are analyzed as normal-distributed and are described with mean and standard deviation. To change default options, you can use the method argument. Possible values of method argument are:

  • 1: forces analysis as normal-distributed, default value
  • 2: forces analysis as continuous non-normal
  • 3: performs a Shapiro-Wilks test to decide between normal or non-normal

When continuous variables are analyzed as non-normal, they are described with median and interquantile range.

mytable(sex~height+weight+BMI,data=acs,method=3)

           Descriptive Statistics by 'sex'
_____________________________________________________
              Female               Male           p
              (N=287)             (N=570)
-----------------------------------------------------
 height 155.0 [150.0;158.0] 168.0 [164.0;172.0] 0.000
 weight  58.0 [50.0;63.0]    68.0 [62.0;75.0]   0.000
 BMI     24.0 [22.1;26.2]    24.2 [22.2;26.2]   0.471
-----------------------------------------------------

Because the method argument is selected as 3, a Shapiro-Wilk test normality test is used to decide if the variable is normal or non-normal distributed. Note that height and BMI was described as mean $\pm$ sd, whereas the weight was described as median and interquatile range.

In many cases, categorical variables are usually coded as numeric. For example, many people usually code 0 and 1 instead of "No" and "Yes". Similarly, factor variables with three or four levels are coded 0/1/2 or 0/1/2/3. In many cases, if we analyze these variables as continuous variables, we are not able to get the right result. In mytable, variables with less than five unique values are treated as a categorical variables.

mytable(am~.,data=mtcars)

    Descriptive Statistics by 'am'
_______________________________________
             0            1         p
          (N=19)        (N=13)
---------------------------------------
 mpg    17.1 ±  3.8  24.4 ±  6.2  0.000
 cyl                              0.013
   - 4   3 (15.8%)    8 (61.5%)
   - 6   4 (21.1%)    3 (23.1%)
   - 8  12 (63.2%)    2 (15.4%)
 disp  290.4 ± 110.2 143.5 ± 87.2 0.000
 hp    160.3 ± 53.9  126.8 ± 84.1 0.180
 drat    3.3 ±  0.4   4.0 ±  0.4  0.000
 wt      3.8 ±  0.8   2.4 ±  0.6  0.000
 qsec   18.2 ±  1.8  17.4 ±  1.8  0.206
 vs                               0.556
   - 0  12 (63.2%)    6 (46.2%)
   - 1   7 (36.8%)    7 (53.8%)
 gear                             0.000
   - 3  15 (78.9%)    0 ( 0.0%)
   - 4   4 (21.1%)    8 (61.5%)
   - 5   0 ( 0.0%)    5 (38.5%)
 carb    2.7 ±  1.1   2.9 ±  2.2  0.781
---------------------------------------

In mtcars data, all variables are expressed as numeric. But as you can see, cyl, vs and gear is treated as categorical variables. The carb variables has six unique values and treated as continuous variables. If you wanted the carb variable to be treated as categorical variable, you can changed the max.ylev argument.

mytable(am~carb,data=mtcars,max.ylev=6)

 Descriptive Statistics by 'am'
________________________________
           0         1       p
        (N=19)    (N=13)
--------------------------------
 carb                      0.284
   - 1 3 (15.8%) 4 (30.8%)
   - 2 6 (31.6%) 4 (30.8%)
   - 3 3 (15.8%) 0 ( 0.0%)
   - 4 7 (36.8%) 3 (23.1%)
   - 6 0 ( 0.0%) 1 ( 7.7%)
   - 8 0 ( 0.0%) 1 ( 7.7%)
--------------------------------

If you wanted to make two separate tables and combine into one table, mytable is the function of choice. For example, if you wanted to build seperate table for female and male patients stratified by presence or absence of DM and combine it,

mytable(sex+DM~.,data=acs)

                 Descriptive Statistics stratified by 'sex' and 'DM'
_____________________________________________________________________________________
                                    Male                             Female
                     -------------------------------- -------------------------------
                          No           Yes        p        No          Yes        p
                       (N=380)       (N=190)           (N=173)      (N=114)
-------------------------------------------------------------------------------------
 age                 60.9 ± 11.5   60.1 ± 10.6  0.472 69.3 ± 11.4  67.8 ±  9.7  0.257
 cardiogenicShock                               0.685                           0.296
   - No              355 (93.4%)   175 (92.1%)        168 (97.1%)  107 (93.9%)
   - Yes              25 ( 6.6%)   15 ( 7.9%)          5 ( 2.9%)    7 ( 6.1%)
 entry                                          0.552                           0.665
   - Femoral         125 (32.9%)   68 (35.8%)          74 (42.8%)   45 (39.5%)
   - Radial          255 (67.1%)   122 (64.2%)         99 (57.2%)   69 (60.5%)
 Dx                                             0.219                           0.240
   - NSTEMI           71 (18.7%)   32 (16.8%)          25 (14.5%)   25 (21.9%)
   - STEMI           154 (40.5%)   66 (34.7%)          54 (31.2%)   30 (26.3%)
   - Unstable Angina 155 (40.8%)   92 (48.4%)          94 (54.3%)   59 (51.8%)
 EF                  56.5 ±  8.3   53.9 ± 11.0  0.007 56.0 ± 10.1  56.6 ± 10.0  0.655
 height              168.1 ±  5.8 167.5 ±  6.7  0.386 153.9 ±  6.5 153.6 ±  5.8 0.707
 weight              68.1 ± 10.4   69.8 ± 10.2  0.070 56.5 ±  8.7  58.4 ± 10.0  0.106
 BMI                 24.0 ±  3.1   24.9 ±  3.5  0.005 23.8 ±  3.2  24.8 ±  4.0  0.046
 obesity                                        0.027                           0.359
   - No              261 (68.7%)   112 (58.9%)        121 (69.9%)   73 (64.0%)
   - Yes             119 (31.3%)   78 (41.1%)          52 (30.1%)   41 (36.0%)
 TC                  184.1 ± 46.7 181.8 ± 44.5  0.572 186.0 ± 43.1 193.3 ± 60.8 0.274
 LDLC                117.9 ± 41.8 112.1 ± 39.4  0.115 116.3 ± 35.2 119.8 ± 48.6 0.519
 HDLC                38.4 ± 11.4   36.8 ±  9.6  0.083 39.2 ± 10.9  38.8 ± 12.2  0.821
 TG                  115.2 ± 72.2 153.4 ± 130.7 0.000 114.2 ± 82.4 128.4 ± 65.5 0.112
 HBP                                            0.000                           0.356
   - No              205 (53.9%)   68 (35.8%)          54 (31.2%)   29 (25.4%)
   - Yes             175 (46.1%)   122 (64.2%)        119 (68.8%)   85 (74.6%)
 smoking                                        0.386                           0.093
   - Ex-smoker       101 (26.6%)   54 (28.4%)          34 (19.7%)   15 (13.2%)
   - Never            77 (20.3%)   46 (24.2%)         118 (68.2%)   91 (79.8%)
   - Smoker          202 (53.2%)   90 (47.4%)          21 (12.1%)   8 ( 7.0%)
-------------------------------------------------------------------------------------

If you want more beautiful table in your R markdown file, you can use myhtml function.

out=mytable(Dx~.,data=acs)
myhtml(out)

Descriptive Statistics by 'Dx'

DxNSTEMI
(N=153)STEMI
(N=304)Unstable Angina
(N=400)p age 64.3 ± 12.362.1 ± 12.163.8 ± 11.00.073 sex 0.012 - Female 50 (32.7%)84 (27.6%)153 (38.2%) - Male 103 (67.3%)220 (72.4%)247 (61.8%) cardiogenicShock0.000 - No 149 (97.4%)256 (84.2%)400 (100.0%) - Yes 4 ( 2.6%)48 (15.8%)0 ( 0.0%) entry 0.001 - Femoral 58 (37.9%)133 (43.8%)121 (30.2%) - Radial 95 (62.1%)171 (56.2%)279 (69.8%) EF 55.0 ± 9.352.4 ± 9.559.2 ± 8.70.000 height 163.3 ± 8.2165.1 ± 8.2161.7 ± 9.70.000 weight 64.3 ± 10.265.7 ± 11.664.5 ± 11.60.361 BMI 24.1 ± 3.224.0 ± 3.324.6 ± 3.40.064 obesity 0.186 - No 106 (69.3%)209 (68.8%)252 (63.0%) - Yes 47 (30.7%)95 (31.2%)148 (37.0%) TC 193.7 ± 53.6183.2 ± 43.4183.5 ± 48.30.057 LDLC 126.1 ± 44.7116.7 ± 39.5112.9 ± 40.40.004 HDLC 38.9 ± 11.938.5 ± 11.037.8 ± 10.90.501 TG 130.1 ± 88.5106.5 ± 72.0137.4 ± 101.60.000 DM 0.209 - No 96 (62.7%)208 (68.4%)249 (62.2%) - Yes 57 (37.3%)96 (31.6%)151 (37.8%) HBP 0.002 - No 62 (40.5%)150 (49.3%)144 (36.0%) - Yes 91 (59.5%)154 (50.7%)256 (64.0%) smoking 0.000 - Ex-smoker 42 (27.5%)66 (21.7%)96 (24.0%) - Never 50 (32.7%)97 (31.9%)185 (46.2%) - Smoker 61 (39.9%)141 (46.4%)119 (29.8%)
out1=mytable(sex+DM~.,data=acs)
myhtml(out1)

Descriptive Statistics stratified by sex and DM

sexMaleFemale DMNo
(N=380)Yes
(N=190)pNo
(N=173)Yes
(N=114)p age 60.9 ± 11.560.1 ± 10.60.47269.3 ± 11.467.8 ± 9.70.257 cardiogenicShock 0.6850.296 - No 355 (93.4%)175 (92.1%) 168 (97.1%)107 (93.9%) - Yes 25 ( 6.6%)15 ( 7.9%) 5 ( 2.9%)7 ( 6.1%) entry 0.5520.665 - Femoral 125 (32.9%)68 (35.8%) 74 (42.8%)45 (39.5%) - Radial 255 (67.1%)122 (64.2%) 99 (57.2%)69 (60.5%) Dx 0.2190.240 - NSTEMI 71 (18.7%)32 (16.8%) 25 (14.5%)25 (21.9%) - STEMI 154 (40.5%)66 (34.7%) 54 (31.2%)30 (26.3%) - Unstable Angina155 (40.8%)92 (48.4%) 94 (54.3%)59 (51.8%) EF 56.5 ± 8.353.9 ± 11.00.00756.0 ± 10.156.6 ± 10.00.655 height 168.1 ± 5.8167.5 ± 6.70.386153.9 ± 6.5153.6 ± 5.80.707 weight 68.1 ± 10.469.8 ± 10.20.07056.5 ± 8.758.4 ± 10.00.106 BMI 24.0 ± 3.124.9 ± 3.50.00523.8 ± 3.224.8 ± 4.00.046 obesity 0.0270.359 - No 261 (68.7%)112 (58.9%) 121 (69.9%)73 (64.0%) - Yes 119 (31.3%)78 (41.1%) 52 (30.1%)41 (36.0%) TC 184.1 ± 46.7181.8 ± 44.50.572186.0 ± 43.1193.3 ± 60.80.274 LDLC 117.9 ± 41.8112.1 ± 39.40.115116.3 ± 35.2119.8 ± 48.60.519 HDLC 38.4 ± 11.436.8 ± 9.60.08339.2 ± 10.938.8 ± 12.20.821 TG 115.2 ± 72.2153.4 ± 130.70.000114.2 ± 82.4128.4 ± 65.50.112 HBP 0.0000.356 - No 205 (53.9%)68 (35.8%) 54 (31.2%)29 (25.4%) - Yes 175 (46.1%)122 (64.2%) 119 (68.8%)85 (74.6%) smoking 0.3860.093 - Ex-smoker 101 (26.6%)54 (28.4%) 34 (19.7%)15 (13.2%) - Never 77 (20.3%)46 (24.2%) 118 (68.2%)91 (79.8%) - Smoker 202 (53.2%)90 (47.4%) 21 (12.1%)8 ( 7.0%)

If you want more beautiful table, you can use mylatex function.

mylatex(mytable(sex+DM~age+Dx,data=acs))

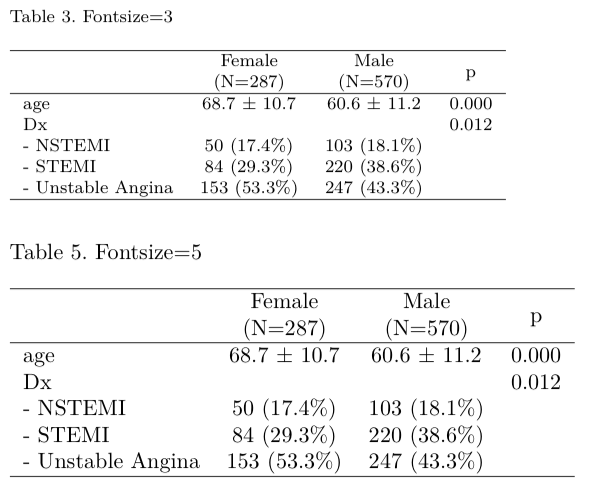

You can adjust font size of latex table by using parameter size from 1 to 10.

out=mytable(sex~age+Dx,data=acs)
for(i in c(3,5))
    mylatex(out,size=i,caption=paste("Table ",i,". Fontsize=",i,sep=""))

If you want to export your table into csv file format, you can use mycsv function.

mycsv(out,file="test.csv")
mycsv(out1,fil="test1.csv")

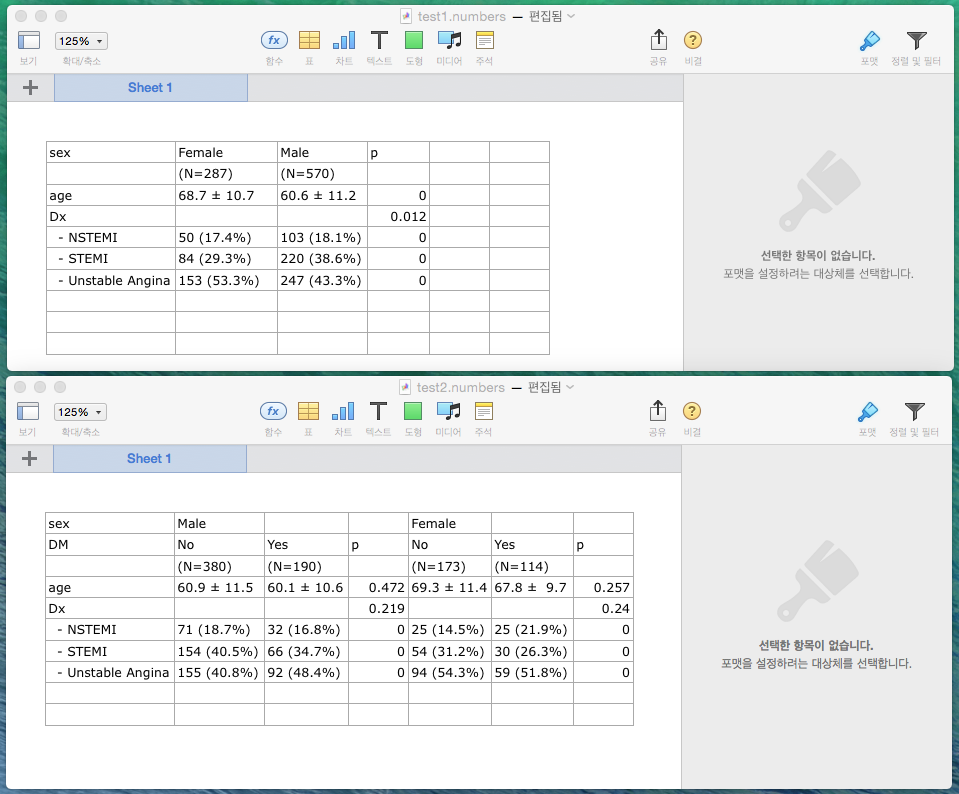

Following figure is a screen-shot in which test.csv and test1.csv files are opened with Numbers.

library(moonBook)

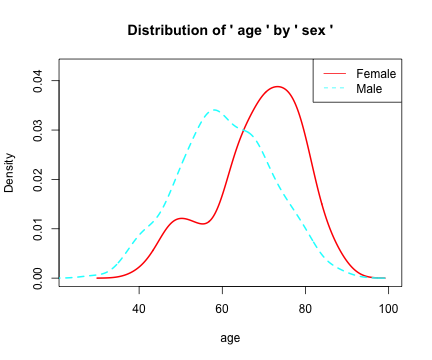

densityplot(age~sex,data=acs)

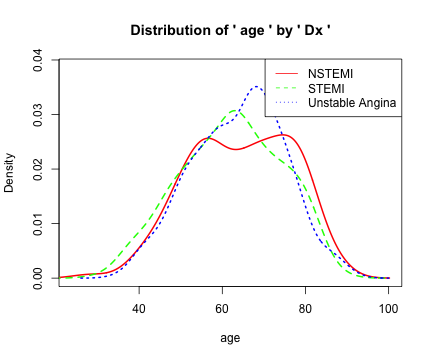

densityplot(age~Dx,data=acs)

require(survival)
data(colon)
out1=glm(status~sex+age+rx+obstruct+node4,data=colon)
out2=glm(status~rx+node4,data=colon)

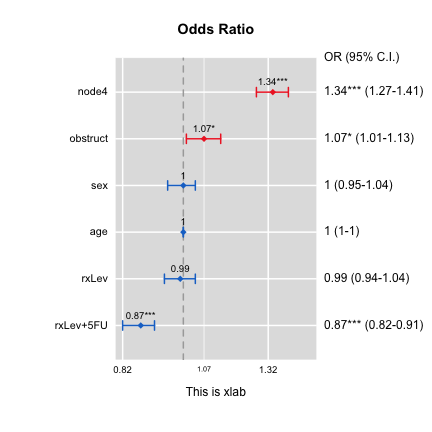

ORplot(out1,type=2,show.CI=TRUE,xlab="This is xlab",main="Odds Ratio")

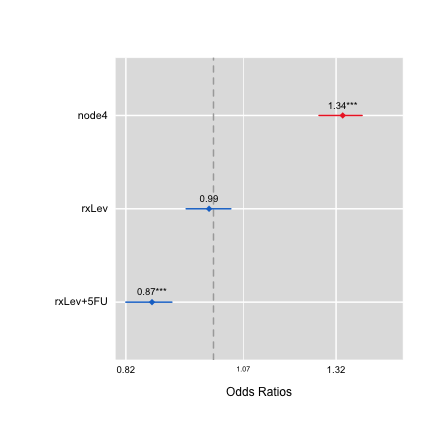

ORplot(out2,type=1)

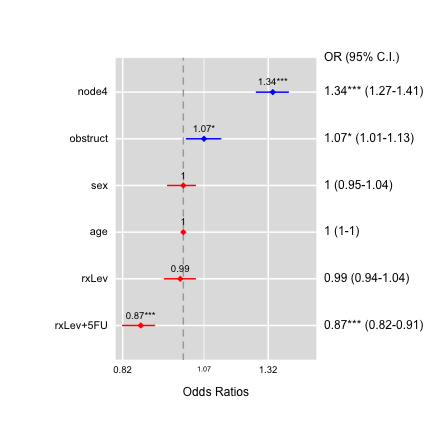

ORplot(out1,type=1,show.CI=TRUE,col=c("blue","red"))

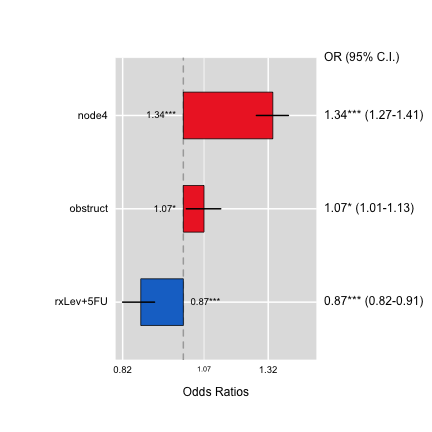

ORplot(out1,type=4,show.CI=TRUE,sig.level=0.05)

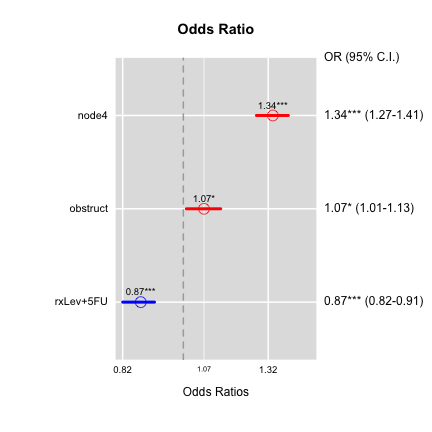

ORplot(out1,type=1,show.CI=TRUE,main="Odds Ratio",sig.level=0.05,
        pch=1,cex=2,lwd=4,col=c("red","blue"))

attach(colon)
colon$TS=Surv(time,status==1)
out=mycph(TS~.,data=colon)

  mycph : perform coxph of individual expecting variables

  Call: TS ~ ., data= colon

 study  was excluded : NaN
 status  was excluded : infinite
out
          HR  lcl  ucl     p
 id        1.00 1.00 1.00 0.317
 rxLev     0.98 0.84 1.14 0.786
 rxLev+5FU 0.64 0.55 0.76 0.000
 sex       0.97 0.85 1.10 0.610
 age       1.00 0.99 1.00 0.382
 obstruct  1.27 1.09 1.49 0.003
 perfor    1.30 0.92 1.85 0.142
 adhere    1.37 1.16 1.62 0.000
 nodes     1.09 1.08 1.10 0.000
 differ    1.36 1.19 1.55 0.000
 extent    1.78 1.53 2.07 0.000
 surg      1.28 1.11 1.47 0.001
 node4     2.47 2.17 2.83 0.000
 time      0.98 0.98 0.98 0.000
 etype     0.81 0.71 0.92 0.001

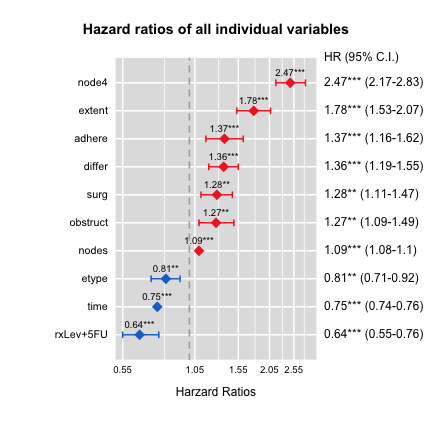

HRplot(out,type=2,show.CI=TRUE,cex=2,sig=0.05,
       main="Hazard ratios of all individual variables")

News

moonBook 0.1.3

(2015-Feb-14)

  • Bug fixed

  • "myhtml" function makes a better-looking table

moonBook 0.1.2

(2014-Dec-7)

  • new S3 method for class "data.frame" added to function "mylatex" and "myhtml"

  • more option to function "mylatex" to adjust caption placement and position

moonBook 0.1.1

(2014-Dec-5)

  • new function "mycsv" makes a csv file with an object of class "cbind.mytable" or "mytable" made by function "mytable"

  • new function "myhtml" makes a html table with an object of class "cbind.mytable" or "mytable" made by function "mytable"

  • Bug fixed

moonBook 0.1.0

  • new function "ORplot" which draw odds ratio plot with an object of class glm

  • new function "HRplot" which draw hazard ratio plot with an object of class coxph or a resultant data.frame of function "mycph"

  • new function "mycph" which perform coxph of individual expecting variables from formula parameter

  • new function "mytable" which automatically produce a table for descriptive analysis easily. It is most useful to make a table to describe baseline charateristics common in medical research papers. An object of class "cbind.mytable" or "mytable" will be made by this function

  • new function "mylatex" makes a latex table with an object of class "cbind.mytable" or "mytable" made by function "mytable"

  • new function "densityplot" which draw Kernel density plot from formula

  • new function "rank2group" which rank a numeric vector and returns a new ordinal vector

  • new data "radial" added

  • new data "acs" added

Reference manual

It appears you don't have a PDF plugin for this browser. You can click here to download the reference manual.

install.packages("moonBook")

0.1.3 by Keon-Woong Moon, 3 years ago


Browse source code at https://github.com/cran/moonBook


Authors: Keon-Woong Moon [aut, cre]


Documentation:   PDF Manual


GPL-2 license


Imports nortest, survival

Suggests testthat, knitr, ggplot2


Imported by ggiraphExtra.

Suggested by ztable.


See at CRAN
