rrd
Import Data from a RRD (Round Robin Database) File
Makes it easy to import the data from a 'RRD' database (< https://oss.oetiker.ch/rrdtool/>) directly into R data structures. The resulting objects are 'tibble' objects or a list of 'tibble' objects, making it easy to manipulate the data. The package uses `librrd` to import the numerical data in a `RRD` database directly into R data structures without using intermediate formats.
The rrd package allows you to read data from an
RRD database.
Internally it uses librrd to import the binary data directly into R without exporting it to an intermediate format first.
For an introduction to RRD database, see https://oss.oetiker.ch/rrdtool/tut/rrd-beginners.en.html
Installation
Pre-requisites
In order to build the package from source you need librrd. Installing RRDtool from your package manager will usually also install the library.
In ubuntu:
sudo apt-get install rrdtool librrd-dev
In RHEL / CentOS:
sudo yum install rrdtool rrdtool-devel
Installing
You can install the stable version of the package from CRAN:
install.packages("rrd")
And the development version from GitHub:
# install.packages("devtools")devtools::install_github("andrie/rrd")
Example
In R:
library(rrd)
To describe the contents of an RRD file, use describe_rrd():
rrd_cpu_0 <- system.file("extdata/cpu-0.rrd", package = "rrd")describe_rrd(rrd_cpu_0)#> A RRD file with 10 RRA arrays and step size 60#> [1] AVERAGE_60 (43200 rows)#> [2] AVERAGE_300 (25920 rows)#> [3] MIN_300 (25920 rows)#> [4] MAX_300 (25920 rows)#> [5] AVERAGE_3600 (8760 rows)#> [6] MIN_3600 (8760 rows)#> [7] MAX_3600 (8760 rows)#> [8] AVERAGE_86400 (1825 rows)#> [9] MIN_86400 (1825 rows)#> [10] MAX_86400 (1825 rows)
To read an entire RRD file, i.e. all of the RRA archives, use
read_rrd(). This returns a list of tibble objects:
cpu <- read_rrd(rrd_cpu_0)str(cpu, max.level = 1)#> List of 10#> $ AVERAGE60 :Classes 'tbl_df', 'tbl' and 'data.frame': 43199 obs. of 9 variables:#> $ AVERAGE300 :Classes 'tbl_df', 'tbl' and 'data.frame': 25919 obs. of 9 variables:#> $ MIN300 :Classes 'tbl_df', 'tbl' and 'data.frame': 25919 obs. of 9 variables:#> $ MAX300 :Classes 'tbl_df', 'tbl' and 'data.frame': 25919 obs. of 9 variables:#> $ AVERAGE3600 :Classes 'tbl_df', 'tbl' and 'data.frame': 8759 obs. of 9 variables:#> $ MIN3600 :Classes 'tbl_df', 'tbl' and 'data.frame': 8759 obs. of 9 variables:#> $ MAX3600 :Classes 'tbl_df', 'tbl' and 'data.frame': 8759 obs. of 9 variables:#> $ AVERAGE86400:Classes 'tbl_df', 'tbl' and 'data.frame': 1824 obs. of 9 variables:#> $ MIN86400 :Classes 'tbl_df', 'tbl' and 'data.frame': 1824 obs. of 9 variables:#> $ MAX86400 :Classes 'tbl_df', 'tbl' and 'data.frame': 1824 obs. of 9 variables:
Since the resulting object is a list of tibbles, you can easily work
with individual data frames:
names(cpu)#> [1] "AVERAGE60" "AVERAGE300" "MIN300" "MAX300"#> [5] "AVERAGE3600" "MIN3600" "MAX3600" "AVERAGE86400"#> [9] "MIN86400" "MAX86400"cpu[[1]]#> # A tibble: 43,199 x 9#> timestamp user sys nice idle wait irq softirq#> * <dttm> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl>#> 1 2018-04-02 12:24:00 0.0104 0.00811 0 0.981 0 0 0#> 2 2018-04-02 12:25:00 0.0126 0.00630 0 0.979 0 0 0#> 3 2018-04-02 12:26:00 0.0159 0.00808 0 0.976 0 0 0#> 4 2018-04-02 12:27:00 0.00853 0.00647 0 0.985 0 0 0#> 5 2018-04-02 12:28:00 0.0122 0.00999 0 0.978 0 0 0#> 6 2018-04-02 12:29:00 0.0106 0.00604 0 0.983 0 0 0#> 7 2018-04-02 12:30:00 0.0147 0.00427 0 0.981 0 0 0#> 8 2018-04-02 12:31:00 0.0193 0.00767 0 0.971 0 0 0#> 9 2018-04-02 12:32:00 0.0300 0.0274 0 0.943 0 0 0#> 10 2018-04-02 12:33:00 0.0162 0.00617 0 0.978 0 0 0#> # ... with 43,189 more rows, and 1 more variable: stolen <dbl>tail(cpu$AVERAGE60$sys)#> [1] 0.0014390667 0.0020080000 0.0005689333 0.0000000000 0.0014390667#> [6] 0.0005689333
To read a single RRA archive from an RRD file, use read_rra(). To use
this function, you must specify several arguments that define the
specific data to retrieve. This includes the consolidation function
(e.g. “AVERAGE”) and time step (e.g. 60), the end time. You must also
specifiy either the start time, or the number of steps, n_steps.
In this example, you extract the average for 1 minute periods (step = 60), for one entire day (n_steps = 24 * 60):
end_time <- as.POSIXct("2018-05-02") # timestamp with data in exampleavg_60 <- read_rra(rrd_cpu_0, cf = "AVERAGE", step = 60, n_steps = 24 * 60,end = end_time)avg_60#> # A tibble: 1,440 x 9#> timestamp user sys nice idle wait irq softirq#> * <dttm> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl>#> 1 2018-05-01 00:01:00 0.00458 0.00201 0 0.992 0 0 0#> 2 2018-05-01 00:02:00 0.00258 0.000570 0 0.996 0 0 0#> 3 2018-05-01 00:03:00 0.00633 0.00144 0 0.992 0 0 0#> 4 2018-05-01 00:04:00 0.00515 0.00201 0 0.991 0 0 0#> 5 2018-05-01 00:05:00 0.00402 0.000569 0 0.995 0 0 0#> 6 2018-05-01 00:06:00 0.00689 0.00144 0 0.992 0 0 0#> 7 2018-05-01 00:07:00 0.00371 0.00201 0 0.993 0.00144 0 0#> 8 2018-05-01 00:08:00 0.00488 0.00201 0 0.993 0.000569 0 0#> 9 2018-05-01 00:09:00 0.00748 0.000568 0 0.992 0 0 0#> 10 2018-05-01 00:10:00 0.00516 0 0 0.995 0 0 0#> # ... with 1,430 more rows, and 1 more variable: stolen <dbl>

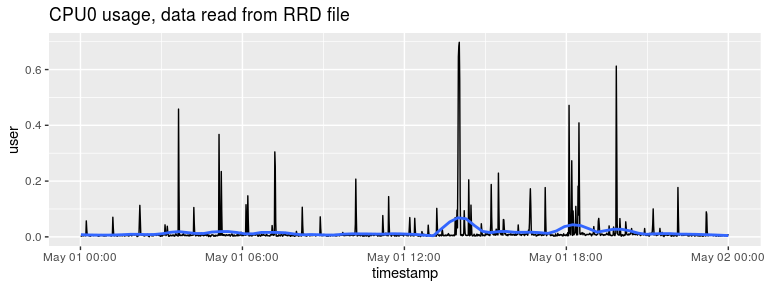

And you can easily plot using your favourite packages:
library(ggplot2)ggplot(avg_60, aes(x = timestamp, y = user)) +geom_line() +stat_smooth(method = "loess", span = 0.125, se = FALSE) +ggtitle("CPU0 usage, data read from RRD file")
More information
For more information on rrdtool and the rrd format please refer to
the official rrdtool
documentation and
tutorials.
You can also read a more in-depth description of the package in an R Views blog post Reading and analysing log files in the RRD database format.
News
rrd-0.2.0 (2018-06-20)
- First release to CRAN
