Plot Categorical Data Using Quasirandom Noise and Density Estimates

Generate a violin point plot, a combination of a violin/histogram plot and a scatter plot by offsetting points within a category based on their density using quasirandom noise.


vipor (VIolin POints in R) provides a way to plot one-dimensional data (perhaps divided into several categories) by spreading the data points to fill the kernel density. It uses a van der Corput sequence to space the dots and avoid generating distracting patterns in the data. See the examples below.

Violin scatter plots (aka column scatter plots or beeswarm plots or one dimensional scatter plots) are a way of plotting points that would ordinarily overlap so that they fall next to each other instead. In addition to reducing overplotting, it helps visualize the density of the data at each point (similar to a violin plot), while still showing each data point individually.

This package is on CRAN so install should be a simple:

install.packages('vipor')

If you want the development version from GitHub, you can do:

devtools::install_github("sherrillmix/vipor")

We use the provided function offsetX to generate the x-offsets for plotting.

library(vipor)
# Generate data
set.seed(12345)
dat <- list(rnorm(50), rnorm(500), c(rnorm(100), rnorm(100,5)), rcauchy(100))
names(dat) <- c("Normal", "Dense Normal", "Bimodal", "Extremes")

# Violin points of several distributions

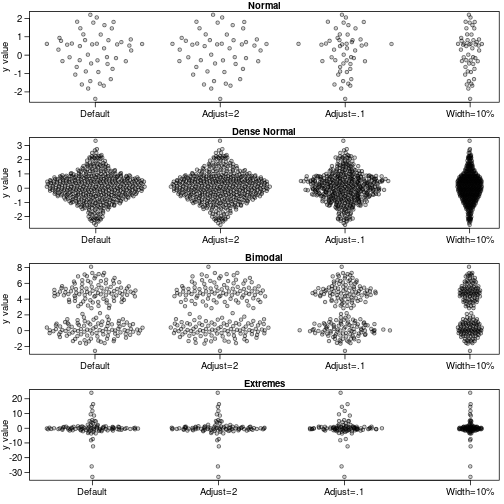

par(mfrow=c(4,1), mar=c(2.5,3.1, 1.2, 0.5),mgp=c(2.1,.75,0),
    cex.axis=1.2,cex.lab=1.2,cex.main=1.2)
sapply(names(dat),function(label) {
    y<-dat[[label]]
    offsets <- list(
        'Default'=offsetX(y),  # Default
        'Adjust=2'=offsetX(y, adjust=2),    # More smoothing
        'Adjust=.1'=offsetX(y, adjust=0.1),  # Tighter fit
        'Width=10%'=offsetX(y, width=0.1)    # Less wide
    )
    ids <- rep(1:length(offsets), each=length(y))
    plot(unlist(offsets) + ids, rep(y, length(offsets)), ylab='y value',
        xlab='', xaxt='n', pch=21,col='#00000099',bg='#00000033',las=1,main=label)
    axis(1, 1:length(offsets), names(offsets))
})

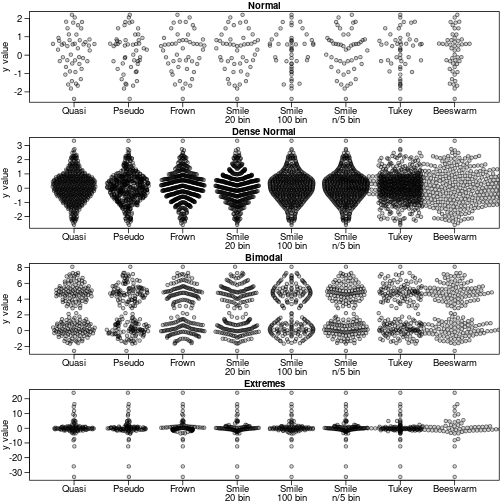

library(beeswarm)
par(mfrow=c(4,1), mar=c(2.5,3.1, 1.2, 0.5),mgp=c(2.1,.75,0),
    cex.axis=1.2,cex.lab=1.2,cex.main=1.2)
sapply(names(dat),function(label) {
    y<-dat[[label]]
    #need to start plot first for beeswarm so xlim is magic number here
    plot(1,1,type='n',ylab='y value',xlim=c(.5,8+.5),
        ylim=range(y),xlab='', xaxt='n', ,las=1,main=label)
    offsets <- list(
        'Quasi'=offsetX(y),  # Default
        'Pseudo'=offsetX(y, method='pseudorandom',nbins=100),
        'Frown'=offsetX(y, method='frowney',nbins=20),
        'Smile\n20 bin'=offsetX(y, method='smiley',nbins=20),
        'Smile\n100 bin'=offsetX(y, method='smiley',nbins=100),
        'Smile\nn/5 bin'=offsetX(y, method='smiley',nbins=round(length(y)/5)),
        'Tukey'=offsetX(y, method='tukey'),
        'Beeswarm'=swarmx(rep(0,length(y)),y)$x
    )
    ids <- rep(1:length(offsets), each=length(y))

    points(unlist(offsets) + ids, rep(y, length(offsets)),pch=21,col='#00000099',bg='#00000033')
    par(lheight=.8)
    axis(1, 1:length(offsets), names(offsets),padj=1,mgp=c(0,-.3,0),tcl=-.5)
})

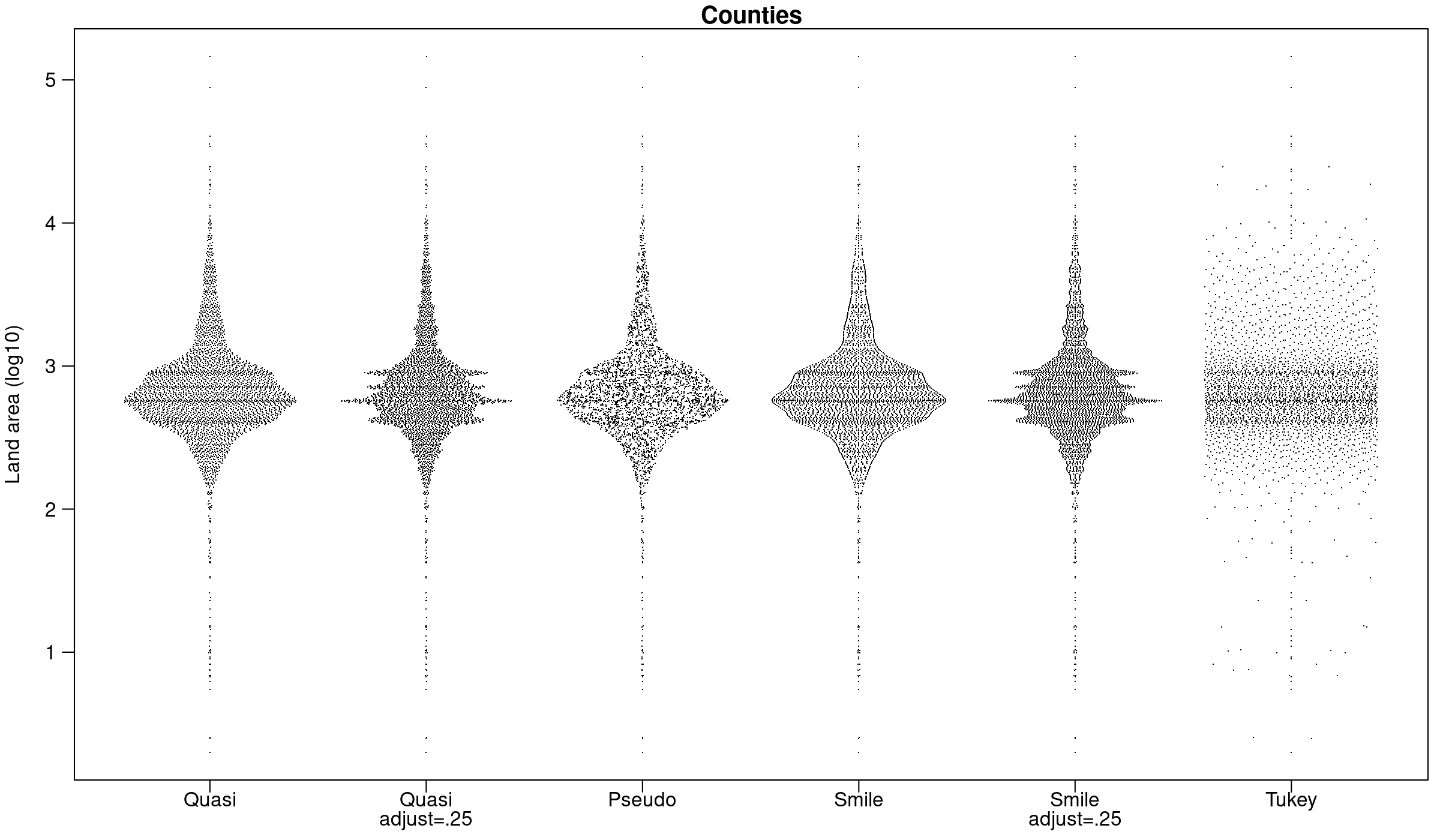

And using the county data from Tukey and Tukey:

par(mar=c(2.5,3.1, 1.2, 0.5),mgp=c(2.1,.75,0))
y<-log10(counties$landArea)
offsets <- list(
  'Quasi'=offsetX(y),  # Default
  'Quasi\nadjust=.25'=offsetX(y,adjust=.25),
  'Pseudo'=offsetX(y, method='pseudorandom',nbins=100),
  'Smile'=offsetX(y, method='smiley'),
  'Smile\nadjust=.25'=offsetX(y, method='smiley',adjust=.25),
  'Tukey'=offsetX(y, method='tukey')
)
ids <- rep(1:length(offsets), each=length(y))
plot(
  unlist(offsets) + ids,
  rep(y, length(offsets)),
  xlab='', ylab='Land area (log10)',
  main='Counties', xaxt='n', las=1,
  pch='.'
)
par(lheight=.8)
axis(1, 1:length(offsets), names(offsets),padj=1,mgp=c(0,-.3,0),tcl=-.5)


Authors: Scott Sherrill-Mix and Erik Clarke
