Create Interactive Chart with the JavaScript 'Billboard' Library

Provides an 'htmlwidgets' interface to 'billboard.js', a re-usable easy interface JavaScript chart library, based on D3 v4+. Chart types include line charts, scatterplots, bar/lollipop charts, histogram/density plots, pie/donut charts and gauge charts. All charts are interactive, and a proxy method is implemented to smoothly update a chart without rendering it again in 'shiny' apps.


Travis-CI Build Status version cranlogs

Overview

This package allow you to use billboard.js, a re-usable easy interface JavaScript chart library, based on D3 v4+.

A proxy method is implemented to smoothly update charts in shiny applications, see below for details.

Note : developpement is heavily inspired by awesome highcharter by Joshua Kunst.

Installation :

# From CRAN
install.packages("billboarder")

# From Github
# install.packages("devtools")
devtools::install_github("dreamRs/billboarder")

A markdown document with some examples is available here : http://rpubs.com/Victorp/billboarder_examples

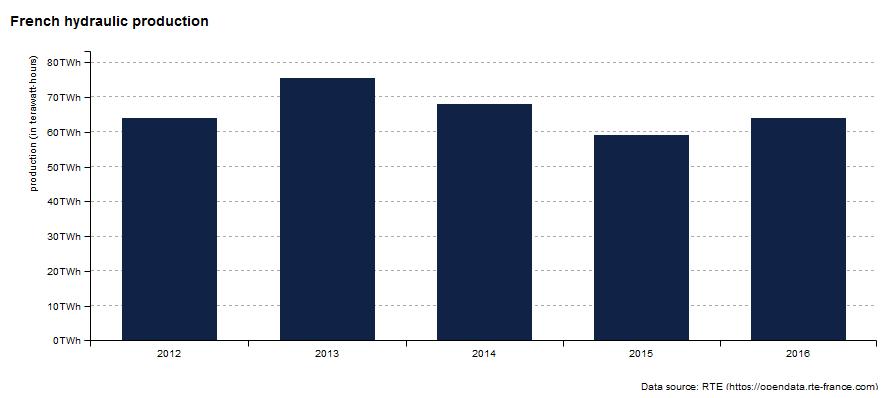

Bar chart

You can do barcharts !

library("billboarder")

# data
data("prod_par_filiere")

# a bar chart !
billboarder() %>%
  bb_barchart(data = prod_par_filiere[, c("annee", "prod_hydraulique")], color = "#102246") %>%
  bb_y_grid(show = TRUE) %>%
  bb_y_axis(tick = list(format = suffix("TWh")),
            label = list(text = "production (in terawatt-hours)", position = "outer-top")) %>%
  bb_legend(show = FALSE) %>%
  bb_labs(title = "French hydraulic production",
          caption = "Data source: RTE (https://opendata.rte-france.com)")

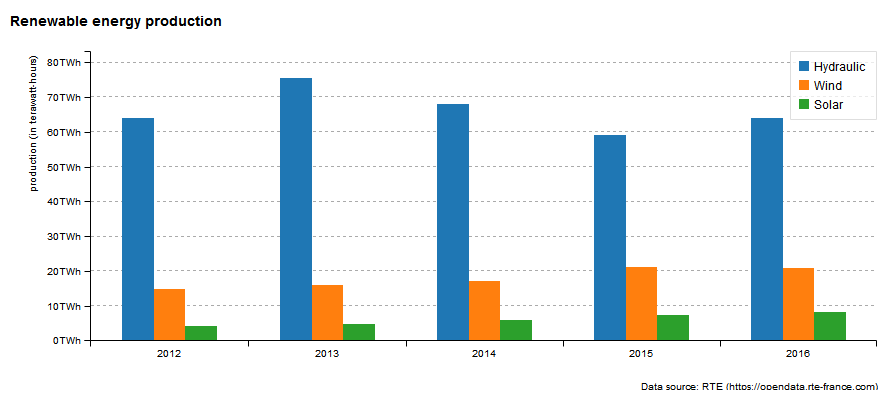

And dodge bar chart too !

library("billboarder")

# data
data("prod_par_filiere")

# dodge bar chart !
billboarder() %>%
  bb_barchart(
    data = prod_par_filiere[, c("annee", "prod_hydraulique", "prod_eolien", "prod_solaire")]
  ) %>%
  bb_data(
    names = list(prod_hydraulique = "Hydraulic", prod_eolien = "Wind", prod_solaire = "Solar")
  ) %>%
  bb_y_grid(show = TRUE) %>%
  bb_y_axis(tick = list(format = suffix("TWh")),
            label = list(text = "production (in terawatt-hours)", position = "outer-top")) %>%
  bb_legend(position = "inset", inset = list(anchor = "top-right")) %>%
  bb_labs(title = "Renewable energy production",
          caption = "Data source: RTE (https://opendata.rte-france.com)")

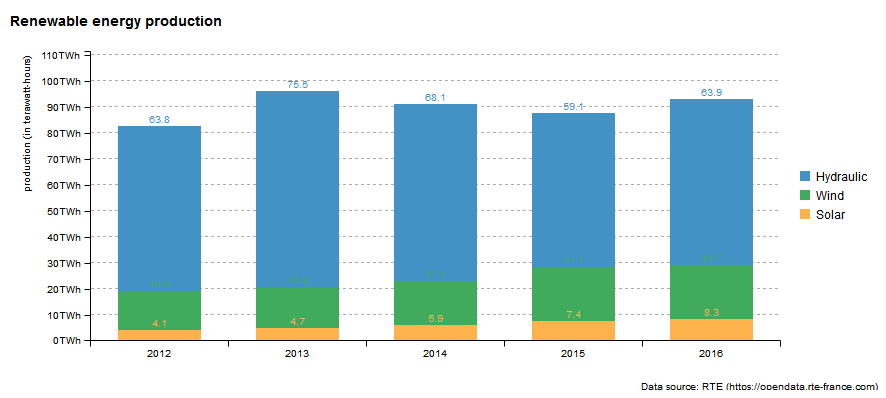

Even stacked bar charts !

library("billboarder")

# data
data("prod_par_filiere")

# stacked bar chart !
billboarder() %>%
  bb_barchart(
    data = prod_par_filiere[, c("annee", "prod_hydraulique", "prod_eolien", "prod_solaire")],
    stacked = TRUE
  ) %>%
  bb_data(
    names = list(prod_hydraulique = "Hydraulic", prod_eolien = "Wind", prod_solaire = "Solar"),
    labels = TRUE
  ) %>%
  bb_colors_manual(
    "prod_eolien" = "#41AB5D", "prod_hydraulique" = "#4292C6", "prod_solaire" = "#FEB24C"
  ) %>%
  bb_y_grid(show = TRUE) %>%
  bb_y_axis(tick = list(format = suffix("TWh")),
            label = list(text = "production (in terawatt-hours)", position = "outer-top")) %>%
  bb_legend(position = "right") %>%
  bb_labs(title = "Renewable energy production",
          caption = "Data source: RTE (https://opendata.rte-france.com)")

Scatter plot

Classic :

billboarder() %>%
 bb_scatterplot(data = iris, x = "Sepal.Length", y = "Sepal.Width", group = "Species") %>%
 bb_axis(x = list(tick = list(fit = FALSE))) %>%
 bb_point(r = 8)

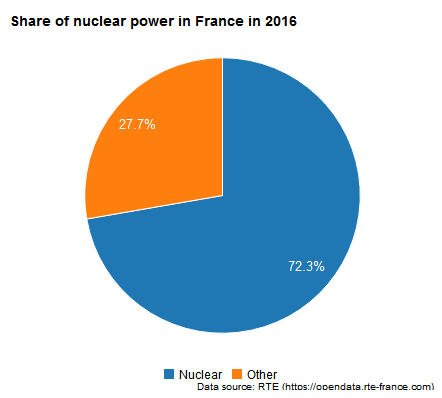

Pie charts

If you have to, you can do pie charts !

library("billboarder")

# data
data("prod_par_filiere")
nuclear2016 <- data.frame(
  sources = c("Nuclear", "Other"),
  production = c(
    prod_par_filiere$prod_nucleaire[prod_par_filiere$annee == "2016"],
    prod_par_filiere$prod_total[prod_par_filiere$annee == "2016"] -
      prod_par_filiere$prod_nucleaire[prod_par_filiere$annee == "2016"]
  )
)

# pie chart !
billboarder() %>%
  bb_piechart(data = nuclear2016) %>%
  bb_labs(title = "Share of nuclear power in France in 2016",
          caption = "Data source: RTE (https://opendata.rte-france.com)")

You can also do donut charts.

Lines charts

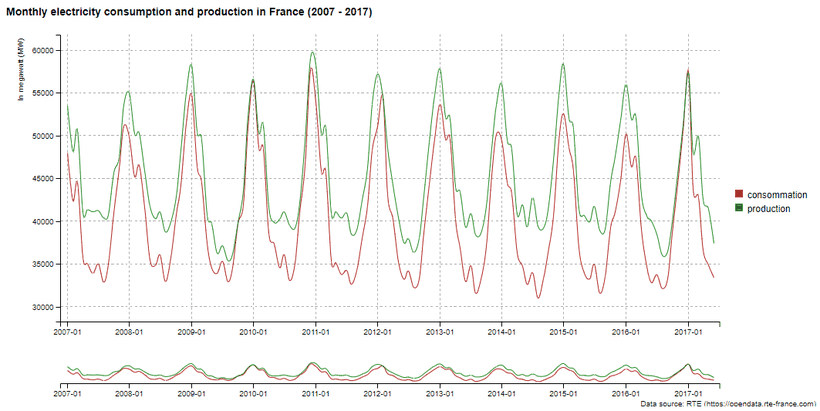

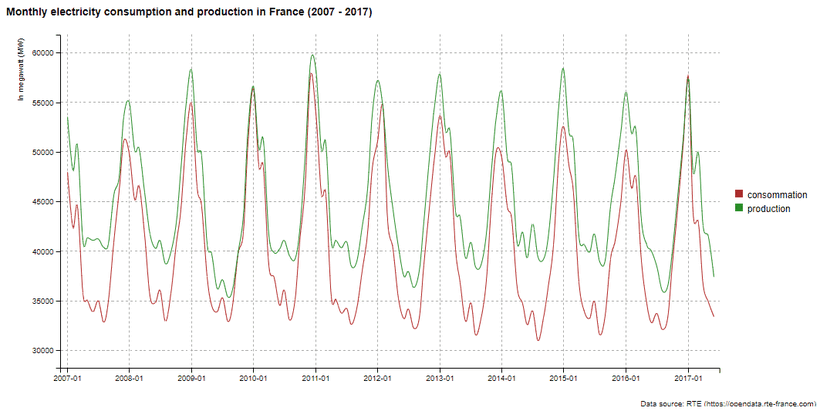

A time serie with Date ! (subchart is optionnal)

library("billboarder")

# data
data("equilibre_mensuel")

# line chart
billboarder() %>%
  bb_linechart(
    data = equilibre_mensuel[, c("date", "consommation", "production")],
    type = "spline"
  ) %>%
  bb_x_axis(tick = list(format = "%Y-%m", fit = FALSE)) %>%
  bb_x_grid(show = TRUE) %>%
  bb_y_grid(show = TRUE) %>%
  bb_colors_manual("consommation" = "firebrick", "production" = "forestgreen") %>%
  bb_legend(position = "right") %>%
  bb_subchart(show = TRUE, size = list(height = 30)) %>%
  bb_labs(title = "Monthly electricity consumption and production in France (2007 - 2017)",
          y = "In megawatt (MW)",
          caption = "Data source: RTE (https://opendata.rte-france.com)")

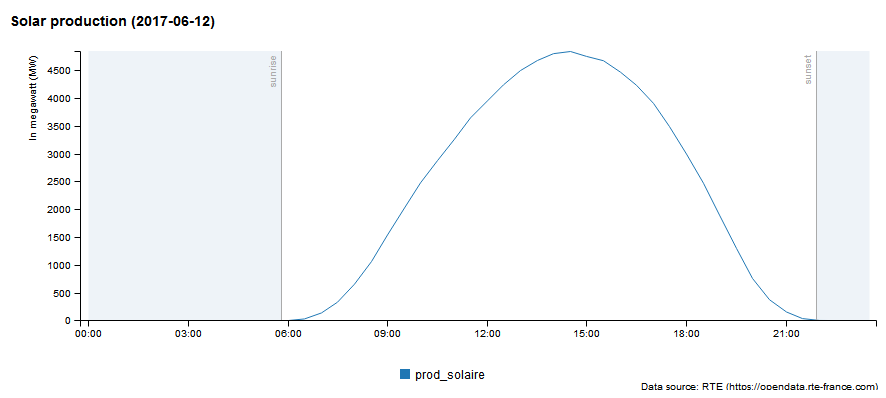

A time serie with POSIXct ! (and regions)

library("billboarder")

# data
data("cdc_prod_filiere")

# Retrieve sunrise and and sunset data with `suncalc`
library("suncalc")
sun <- getSunlightTimes(date = as.Date("2017-06-12"), lat = 48.86, lon = 2.34, tz = "CET")


# line chart
billboarder() %>%
  bb_linechart(data = cdc_prod_filiere[, c("date_heure", "prod_solaire")]) %>%
  bb_x_axis(tick = list(format = "%H:%M", fit = FALSE)) %>%
  bb_y_axis(min = 0, padding = 0) %>%
  bb_regions(
    list(
      start = as.numeric(cdc_prod_filiere$date_heure[1]) * 1000,
      end = as.numeric(sun$sunrise)*1000
    ),
    list(
      start = as.numeric(sun$sunset) * 1000,
      end = as.numeric(cdc_prod_filiere$date_heure[48]) * 1000
    )
  ) %>%
  bb_x_grid(
    lines = list(
      list(value = as.numeric(sun$sunrise)*1000, text = "sunrise"),
      list(value = as.numeric(sun$sunset)*1000, text = "sunset")
    )
  ) %>%
  bb_labs(title = "Solar production (2017-06-12)",
          y = "In megawatt (MW)",
          caption = "Data source: RTE (https://opendata.rte-france.com)")

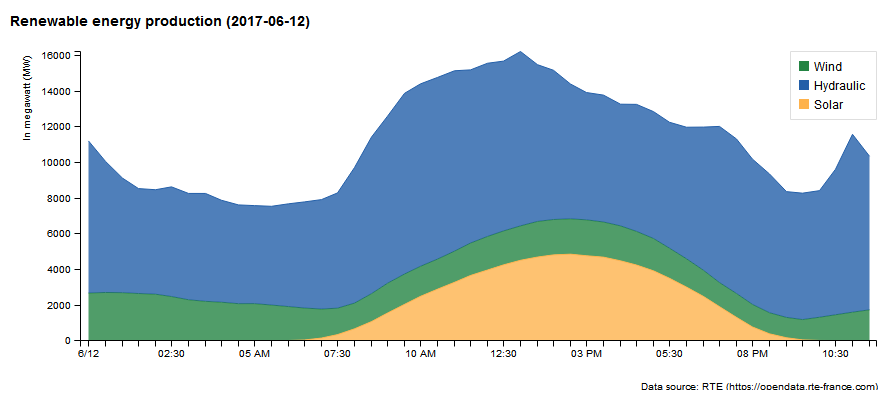

A stacked area chart !

library("billboarder")

# data
data("cdc_prod_filiere")

# area chart !
billboarder() %>%
  bb_linechart(
    data = cdc_prod_filiere[, c("date_heure", "prod_eolien", "prod_hydraulique", "prod_solaire")],
    type = "area"
  ) %>%
  bb_data(
    groups = list(list("prod_eolien", "prod_hydraulique", "prod_solaire")),
    names = list("prod_eolien" = "Wind", "prod_hydraulique" = "Hydraulic", "prod_solaire" = "Solar")
  ) %>%
  bb_legend(position = "inset", inset = list(anchor = "top-right")) %>%
  bb_colors_manual(
    "prod_eolien" = "#238443", "prod_hydraulique" = "#225EA8", "prod_solaire" = "#FEB24C",
    opacity = 0.8
  ) %>%
  bb_y_axis(min = 0, padding = 0) %>%
  bb_labs(title = "Renewable energy production (2017-06-12)",
          y = "In megawatt (MW)",
          caption = "Data source: RTE (https://opendata.rte-france.com)")

You can also do step lines.

Histogram & density

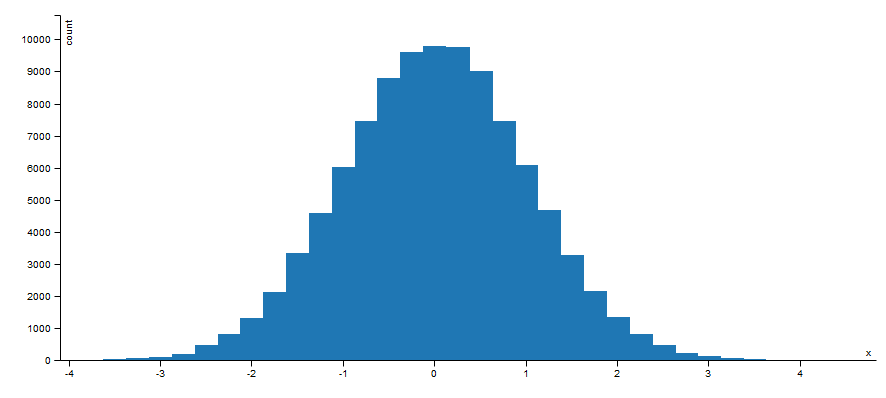

You can do histograms !

billboarder() %>%
  bb_histogram(data = rnorm(1e5), binwidth = 0.25) %>%
  bb_colors_manual()

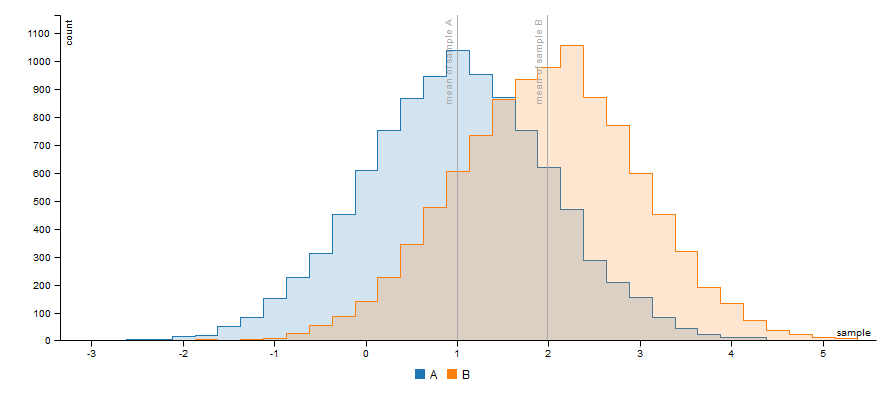

With a grouping variable :

# Generate some data
dat <- data.frame(
  sample = c(rnorm(n = 1e4, mean = 1), rnorm(n = 1e4, mean = 2)),
  group = rep(c("A", "B"), each = 1e4), stringsAsFactors = FALSE
)
# Mean by groups
samples_mean <- tapply(dat$sample, dat$group, mean)
# histogram !
billboarder() %>%
  bb_histogram(data = dat, x = "sample", group = "group", binwidth = 0.25) %>%
  bb_x_grid(
    lines = list(
      list(value = unname(samples_mean['A']), text = "mean of sample A"),
      list(value = unname(samples_mean['B']), text = "mean of sample B")
    )
  )

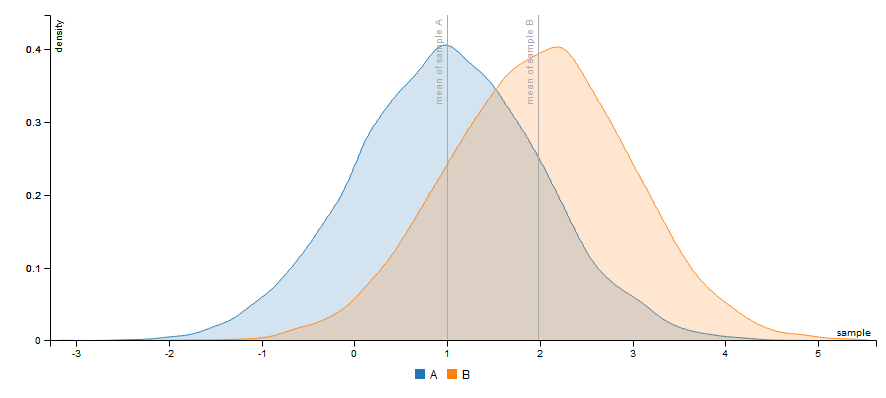

Density plot with the same data :

billboarder() %>%
  bb_densityplot(data = dat, x = "sample", group = "group") %>%
  bb_x_grid(
    lines = list(
      list(value = unname(samples_mean['A']), text = "mean of sample A"),
      list(value = unname(samples_mean['B']), text = "mean of sample B")
    )
  )

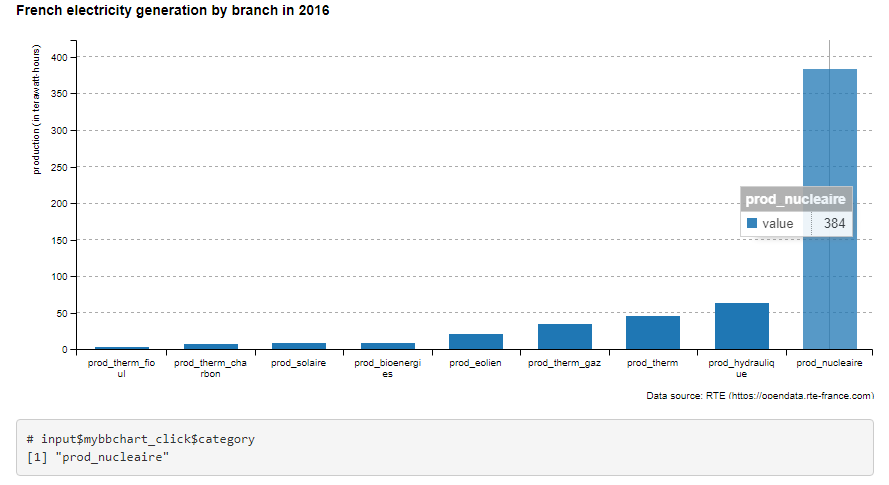

Shiny interaction

Some events will trigger Shiny's inputs in application, such as click. Inputs id associated with billboarder charts use this pattern :

input$CHARTID_EVENT

Look at this example, chart id is mybbchart so you retrieve click with input$mybbchart_click :

library("shiny")
library("billboarder")

# data
data("prod_par_filiere")
prod_par_filiere_l <- reshape2::melt(data = prod_par_filiere)
prod_par_filiere_l <- prod_par_filiere_l[
  with(prod_par_filiere_l, annee == "2016" & variable != "prod_total"), 2:3
]
prod_par_filiere_l <- prod_par_filiere_l[order(prod_par_filiere_l$value), ]


# app
ui <- fluidPage(
  billboarderOutput(outputId = "mybbchart"),
  br(),
  verbatimTextOutput(outputId = "click")
)

server <- function(input, output, session) {

  output$mybbchart <- renderBillboarder({
    billboarder() %>%
      bb_barchart(data = prod_par_filiere_l) %>%
      bb_y_grid(show = TRUE) %>%
      bb_legend(show = FALSE) %>%
      bb_x_axis(categories = prod_par_filiere_l$variable, fit = FALSE) %>%
      bb_labs(title = "French electricity generation by branch in 2016",
              y = "production (in terawatt-hours)",
              caption = "Data source: RTE (https://opendata.rte-france.com)")
  })

  output$click <- renderPrint({
    cat("# input$mybbchart_click$category", "\n")
    input$mybbchart_click$category
  })

}

shinyApp(ui = ui, server = server)

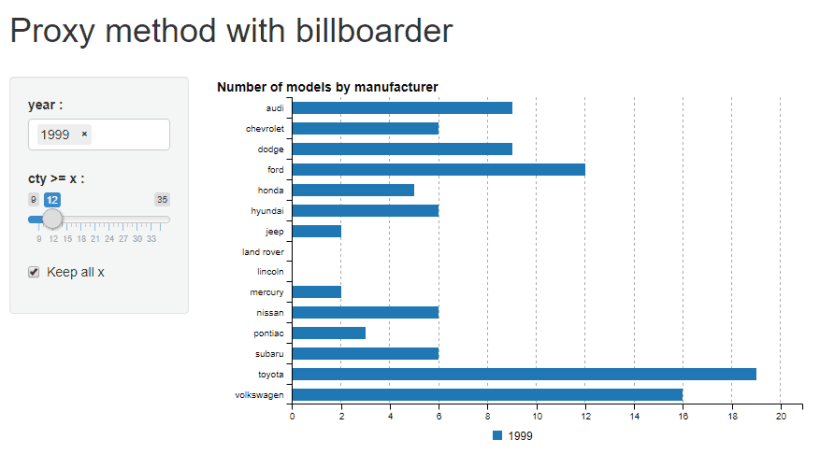

Proxy

You can modify existing charts with function billboarderProxy :

To see examples, run :

library("billboarder")
proxy_example("bar")
proxy_example("line")
proxy_example("pie")
proxy_example("gauge")

Combination charts

For now, you have to specify the type of chart according to the data, this might change in the future :

# from ?plot
# require(stats); plot(cars); lines(lowess(cars))
billboarder() %>%
  bb_scatterplot(data = cars) %>%
  bb_linechart(data = data.frame(lowess(cars)), x = "x") %>%
  bb_data(types = list(dist = "scatter", y = "line"))

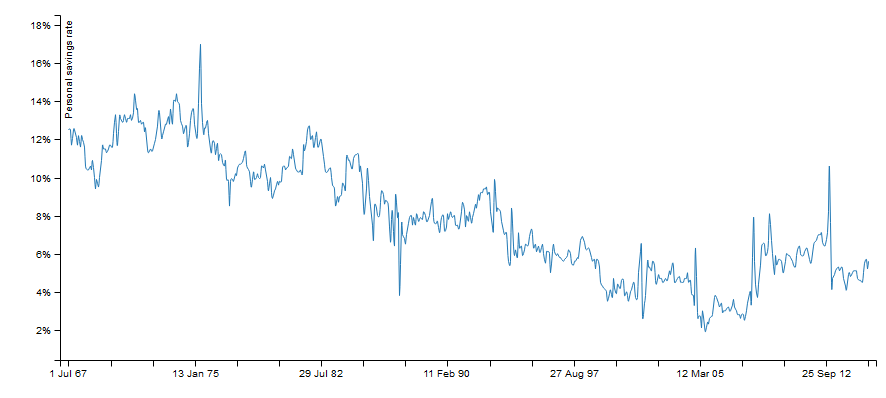

Raw API

If what you want to do is not possible with higher function in the package, you can anyway do what you want, you just have to pass a list-JSON as parameter :

data(economics, package = "ggplot2")

# Construct a list in JSON format
params <- list(
  data = list(
    x = "x",
    json = list(
      x = economics$date,
      y = economics$psavert
    ),
    type = "spline"
  ),
  legend = list(show = FALSE),
  point = list(show = FALSE),
  axis = list(
    x = list(
      type = "timeseries",
      tick = list(
        count = 20,
        fit = TRUE,
        format = "%e %b %y"
      )
    ),
    y = list(
      label = list(
        text = "Personal savings rate"
      ),
      tick = list(
        format = htmlwidgets::JS("function(x) {return x + '%';}")
      )
    )
  )
)

# Pass the list as parameter
billboarder(params)

News

billboarder 0.2.1

  • Upgrade billboard library to 1.2.0, and D3V4 to 4.12.2
  • New proxy methods : bb_proxy_data_colors and bb_proxy_data_names.

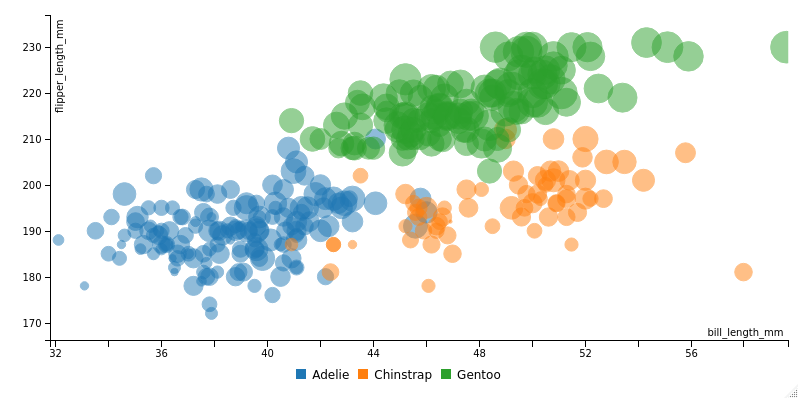

  • New aesthetic for scatterplots : size, to make bubble clouds.

billboarder 0.1.0

  • New charts type : lollipop, histogram and density plot.
  • More methods for proxy and more exemples, see proxy_example for more details.
  • Upgrade to billboard.js 1.1.1.
  • New functions bbaes and bb_aes to map data on chart, see the corresponding vignette.
