'jQuery UI' Interactions and Effects for Shiny

An extension to shiny that brings interactions and animation effects from 'jQuery UI' library.


shinyjqui

Travis-CI Build Status AppVeyor Build Status CRAN_Status_Badge

The shinyjqui package is an R wrapper for jQuery UI javascript library. It allows user to easily add interactions and animation effects to a shiny app.

Installation

You can install the stable version from CRAN, or the development version from github with:

install.packages('shinyjqui')

# for the development version
devtools::install_github("yang-tang/shinyjqui")

Usage

# load packages
library(shiny)
library(shinyjqui)
library(ggplot2)
library(highcharter)

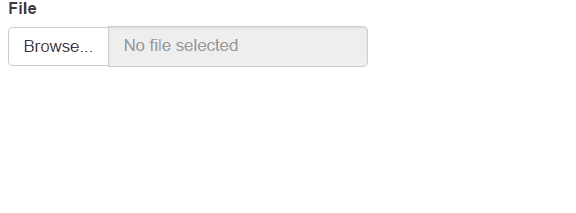

  • Draggable: Allow elements to be moved using the mouse
server <- function(input, output) {}

ui <- fluidPage(
  jqui_draggabled(fileInput('file', 'File'))
)

shinyApp(ui, server)

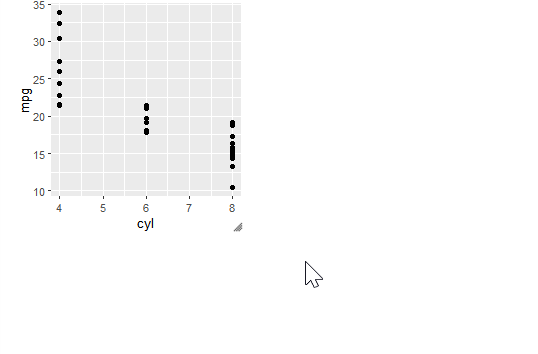

  • Resizable: Change the size of an element using the mouse.
server <- function(input, output) {
  output$gg <- renderPlot({
    ggplot(mtcars, aes(x = cyl, y = mpg)) + geom_point()
  })
}

ui <- fluidPage(
  jqui_resizabled(plotOutput('gg', width = '200px', height = '200px'))
)

shinyApp(ui, server)

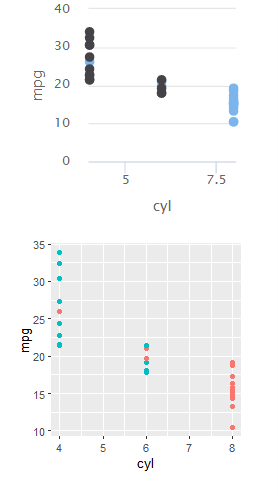

  • Sortable: Reorder elements in a list or grid using the mouse.
server <- function(input, output) {
  output$hc <- renderHighchart({
    hchart(mtcars, "scatter", hcaes(x = cyl, y = mpg, group = factor(vs))) %>%
      hc_legend(enabled = FALSE)
  })
  output$gg <- renderPlot({
    ggplot(mtcars, aes(x = cyl, y = mpg, color = factor(vs))) +
      geom_point() +
      theme(legend.position= "none")
  })
}

ui <- fluidPage(
  jqui_sortabled(div(id = 'plots',
                     highchartOutput('hc', width = '200px', height = '200px'),
                     plotOutput('gg', width = '200px', height = '200px')))
)

shinyApp(ui, server)

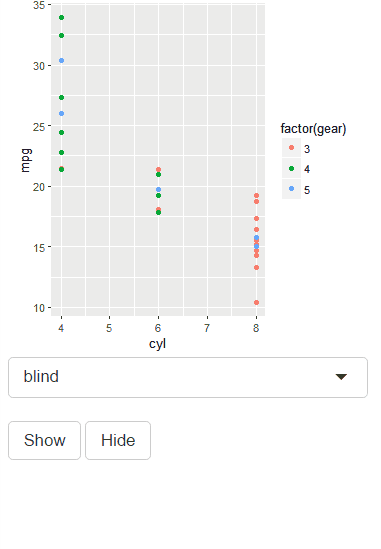

  • Animation Effects: Apply an animation effect to an element. Effects can also be used in hide or show.
server <- function(input, output) {
  observeEvent(input$show, {
    jqui_show('#gg', effect = input$effect)
  })

  observeEvent(input$hide, {
    jqui_hide('#gg', effect = input$effect)
  })

  output$gg <- renderPlot({
    ggplot(mtcars, aes(x = cyl, y = mpg, color = factor(gear))) +
      geom_point() +
      theme(plot.background = element_rect(fill = "transparent",colour = NA))
  }, bg = "transparent")
}

ui <- fluidPage(
  div(style = 'width: 400px; height: 400px',
      plotOutput('gg', width = '100%', height = '100%')),
  selectInput('effect', NULL, choices = get_jqui_effects()),
  actionButton('show', 'Show'),
  actionButton('hide', 'Hide')
)

shinyApp(ui, server)

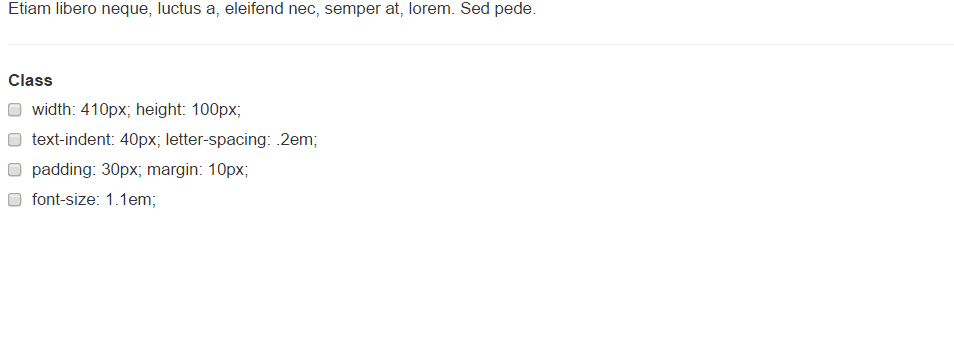

  • Classes transformation: Add and remove class(es) to elements while animating all style changes.
server <- function(input, output) {

  current_class <- c()

  observe({
    input$class
    class_to_remove <- setdiff(current_class, input$class)
    class_to_add <- setdiff(input$class, current_class)
    current_class <<- input$class
    if(length(class_to_remove) > 0) {
      jqui_remove_class('#foo', paste(class_to_remove, collapse = ' '), duration = 1000)}
    if(length(class_to_add) > 0) {
      jqui_add_class('#foo', paste(class_to_add, collapse = ' '), duration = 1000)}
  })

}

ui <- fluidPage(

  tags$head(
    tags$style(
      HTML('.class1 { width: 410px; height: 100px; }
            .class2 { text-indent: 40px; letter-spacing: .2em; }
            .class3 { padding: 30px; margin: 10px; }
            .class4 { font-size: 1.1em; }')
    )
  ),

  div(id = 'foo', 'Etiam libero neque, luctus a, eleifend nec, semper at, lorem. Sed pede.'),
  hr(),
  checkboxGroupInput('class', 'Class',
                     choices = list(`width: 410px; height: 100px;` = 'class1',
                                    `text-indent: 40px; letter-spacing: .2em;` = 'class2',
                                    `padding: 30px; margin: 10px;` = 'class3',
                                    `font-size: 1.1em;` = 'class4'))


)

shinyApp(ui, server)

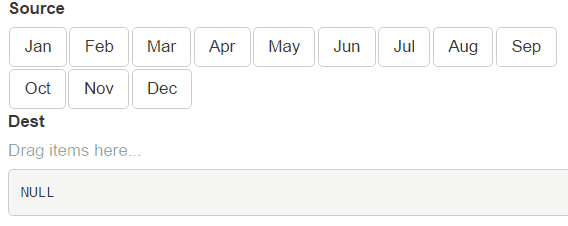

  • orderInput(): Display a list of items. Their order can be changed by drag and drop.
server <- function(input, output) {
  output$order <- renderPrint({ print(input$dest_order) })
}

ui <- fluidPage(
  orderInput('source', 'Source', items = month.abb,
             as_source = TRUE, connect = 'dest'),
  orderInput('dest', 'Dest', items = NULL, placeholder = 'Drag items here...'),
  verbatimTextOutput('order')
)

shinyApp(ui, server)

News

shinyjqui 0.2.0

  • No longer needed to call includeJqueryUI() before using other shinyjqui functions.(#4)
  • New jqui_icon() to create a jQuery UI icon.
  • New jqui_toggle() to toggle display/hide state of a shiny html element with animation.
  • New pre-defined interaction-specific shiny input values: is_dragging for draggable; over, drop, dropped and out for droppable; is_resizing for resizable; is_selecting for selectable.(#1) See vignettes for details.
  • Minify shinyjqui.js.(#3)
  • Import and export JS() from htmlwidgets package.
  • Add pkgdown docs.
  • Documentation with Roxygen2 6.0.1.

shinyjqui 0.1.0

  • Added a NEWS.md file to track changes to the package.

Reference manual

It appears you don't have a PDF plugin for this browser. You can click here to download the reference manual.

install.packages("shinyjqui")

0.2.0 by Yang Tang, 8 months ago


https://github.com/yang-tang/shinyjqui


Report a bug at https://github.com/yang-tang/shinyjqui/issues


Browse source code at https://github.com/cran/shinyjqui


Authors: Yang Tang [aut, cre]


Documentation:   PDF Manual


MIT + file LICENSE license


Imports shiny, htmlwidgets, jsonlite

Suggests ggplot2, highcharter, knitr, rmarkdown


See at CRAN
