'ggplot2' Based Publication Ready Plots

'ggplot2' is an excellent and flexible package for elegant data visualization in R. However the default generated plots requires some formatting before we can send them for publication. Furthermore, to customize a 'ggplot', the syntax is opaque and this raises the level of difficulty for researchers with no advanced R programming skills. 'ggpubr' provides some easy-to-use functions for creating and customizing 'ggplot2'- based publication ready plots.


Build Status CRAN_Status_Badge Downloads Total Downloads

ggplot2 by Hadley Wickham is an excellent and flexible package for elegant data visualization in R. However the default generated plots requires some formatting before we can send them for publication. Furthermore, to customize a ggplot, the syntax is opaque and this raises the level of difficulty for researchers with no advanced R programming skills.

The 'ggpubr' package provides some easy-to-use functions for creating and customizing 'ggplot2'- based publication ready plots.

Find out more at http://www.sthda.com/english/rpkgs/ggpubr.

Installation and loading

  • Install from CRAN as follow:
install.packages("ggpubr")
  • Or, install the latest version from GitHub as follow:
if(!require(devtools)) install.packages("devtools")
devtools::install_github("kassambara/ggpubr")

Distribution

library(ggpubr)
#> Loading required package: ggplot2
#> Loading required package: magrittr
# Create some data format
# :::::::::::::::::::::::::::::::::::::::::::::::::::
set.seed(1234)
wdata = data.frame(
   sex = factor(rep(c("F", "M"), each=200)),
   weight = c(rnorm(200, 55), rnorm(200, 58)))
head(wdata, 4)
#>   sex   weight
#> 1   F 53.79293
#> 2   F 55.27743
#> 3   F 56.08444
#> 4   F 52.65430

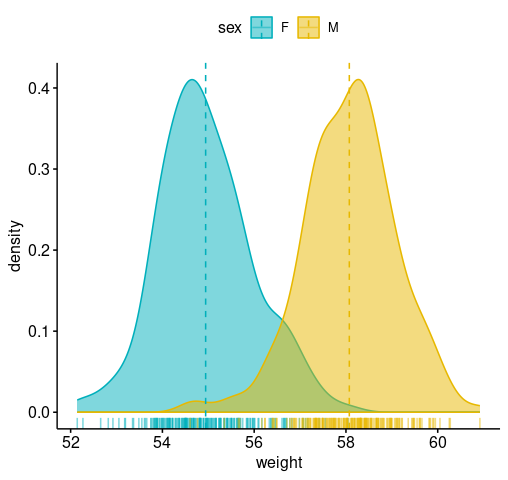

# Density plot with mean lines and marginal rug
# :::::::::::::::::::::::::::::::::::::::::::::::::::
# Change outline and fill colors by groups ("sex")
# Use custom palette
ggdensity(wdata, x = "weight",
   add = "mean", rug = TRUE,
   color = "sex", fill = "sex",
   palette = c("#00AFBB", "#E7B800"))

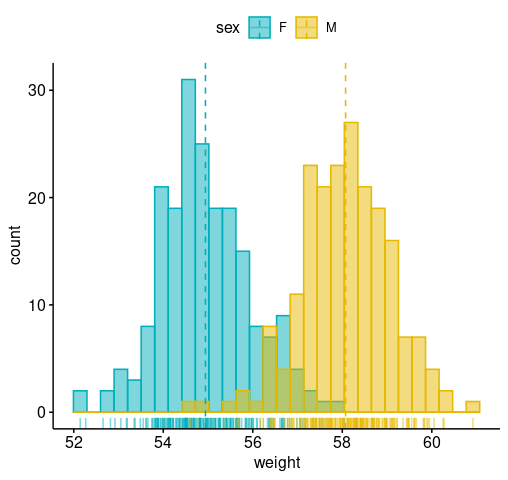

# Histogram plot with mean lines and marginal rug
# :::::::::::::::::::::::::::::::::::::::::::::::::::
# Change outline and fill colors by groups ("sex")
# Use custom color palette
gghistogram(wdata, x = "weight",
   add = "mean", rug = TRUE,
   color = "sex", fill = "sex",
   palette = c("#00AFBB", "#E7B800"))

Box plots and violin plots

# Load data
data("ToothGrowth")
df <- ToothGrowth
head(df, 4)
#>    len supp dose
#> 1  4.2   VC  0.5
#> 2 11.5   VC  0.5
#> 3  7.3   VC  0.5
#> 4  5.8   VC  0.5

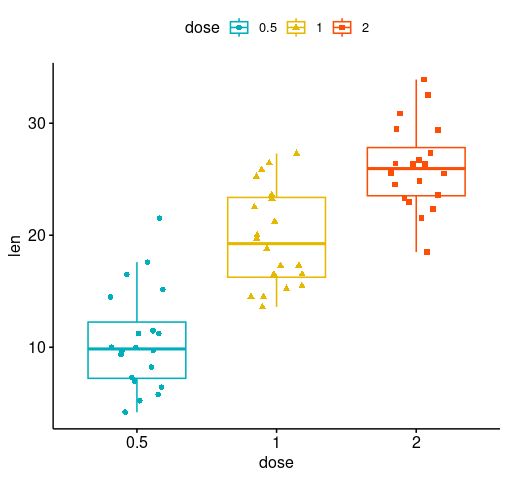

# Box plots with jittered points
# :::::::::::::::::::::::::::::::::::::::::::::::::::
# Change outline colors by groups: dose
# Use custom color palette
# Add jitter points and change the shape by groups
 p <- ggboxplot(df, x = "dose", y = "len",
                color = "dose", palette =c("#00AFBB", "#E7B800", "#FC4E07"),
                add = "jitter", shape = "dose")
 p

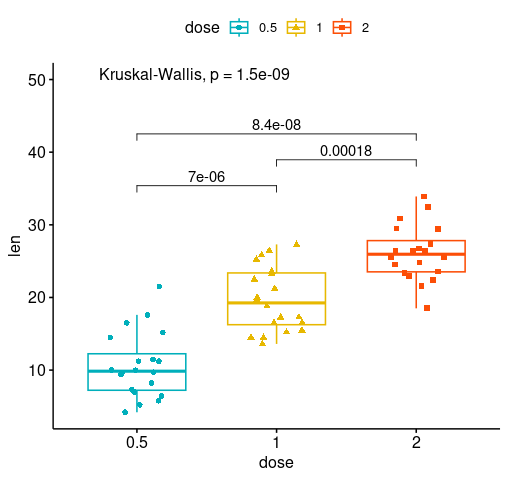

 # Add p-values comparing groups
 # Specify the comparisons you want
my_comparisons <- list( c("0.5", "1"), c("1", "2"), c("0.5", "2") )
p + stat_compare_means(comparisons = my_comparisons)+ # Add pairwise comparisons p-value
  stat_compare_means(label.y = 50)                   # Add global p-value

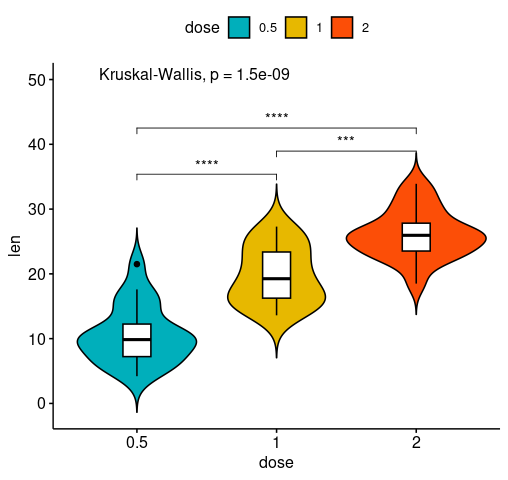

# Violin plots with box plots inside
# :::::::::::::::::::::::::::::::::::::::::::::::::::
# Change fill color by groups: dose
# add boxplot with white fill color
ggviolin(df, x = "dose", y = "len", fill = "dose",
         palette = c("#00AFBB", "#E7B800", "#FC4E07"),
         add = "boxplot", add.params = list(fill = "white"))+
  stat_compare_means(comparisons = my_comparisons, label = "p.signif")+ # Add significance levels
  stat_compare_means(label.y = 50)                                      # Add global the p-value

Bar plots

Demo data set

Load and prepare data:

# Load data
data("mtcars")
dfm <- mtcars
# Convert the cyl variable to a factor
dfm$cyl <- as.factor(dfm$cyl)
# Add the name colums
dfm$name <- rownames(dfm)
# Inspect the data
head(dfm[, c("name", "wt", "mpg", "cyl")])
#>                                name    wt  mpg cyl
#> Mazda RX4                 Mazda RX4 2.620 21.0   6
#> Mazda RX4 Wag         Mazda RX4 Wag 2.875 21.0   6
#> Datsun 710               Datsun 710 2.320 22.8   4
#> Hornet 4 Drive       Hornet 4 Drive 3.215 21.4   6
#> Hornet Sportabout Hornet Sportabout 3.440 18.7   8
#> Valiant                     Valiant 3.460 18.1   6

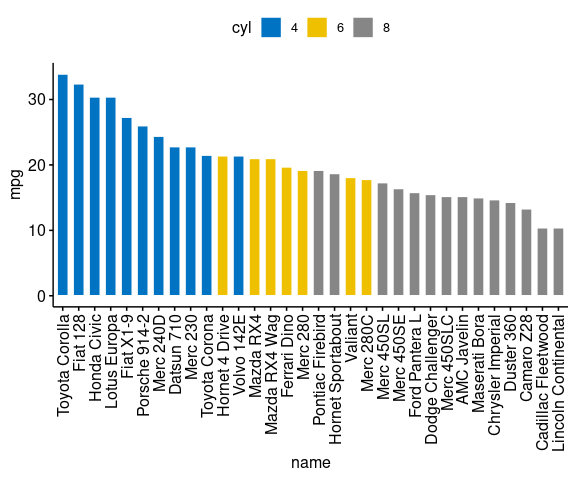

Ordered bar plots

Change the fill color by the grouping variable "cyl". Sorting will be done globally, but not by groups.

ggbarplot(dfm, x = "name", y = "mpg",
          fill = "cyl",               # change fill color by cyl
          color = "white",            # Set bar border colors to white
          palette = "jco",            # jco journal color palett. see ?ggpar
          sort.val = "desc",          # Sort the value in dscending order
          sort.by.groups = FALSE,     # Don't sort inside each group
          x.text.angle = 90           # Rotate vertically x axis texts
          )

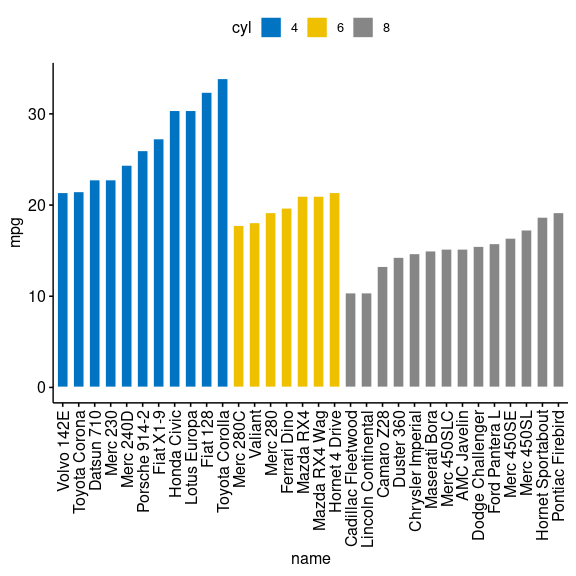

Sort bars inside each group. Use the argument sort.by.groups = TRUE.

ggbarplot(dfm, x = "name", y = "mpg",
          fill = "cyl",               # change fill color by cyl
          color = "white",            # Set bar border colors to white
          palette = "jco",            # jco journal color palett. see ?ggpar
          sort.val = "asc",           # Sort the value in dscending order
          sort.by.groups = TRUE,      # Sort inside each group
          x.text.angle = 90           # Rotate vertically x axis texts
          )

Deviation graphs

The deviation graph shows the deviation of quantitatives values to a reference value. In the R code below, we'll plot the mpg z-score from the mtcars dataset.

Calculate the z-score of the mpg data:

# Calculate the z-score of the mpg data
dfm$mpg_z <- (dfm$mpg -mean(dfm$mpg))/sd(dfm$mpg)
dfm$mpg_grp <- factor(ifelse(dfm$mpg_z < 0, "low", "high"),
                     levels = c("low", "high"))
# Inspect the data
head(dfm[, c("name", "wt", "mpg", "mpg_z", "mpg_grp", "cyl")])
#>                                name    wt  mpg      mpg_z mpg_grp cyl
#> Mazda RX4                 Mazda RX4 2.620 21.0  0.1508848    high   6
#> Mazda RX4 Wag         Mazda RX4 Wag 2.875 21.0  0.1508848    high   6
#> Datsun 710               Datsun 710 2.320 22.8  0.4495434    high   4
#> Hornet 4 Drive       Hornet 4 Drive 3.215 21.4  0.2172534    high   6
#> Hornet Sportabout Hornet Sportabout 3.440 18.7 -0.2307345     low   8
#> Valiant                     Valiant 3.460 18.1 -0.3302874     low   6

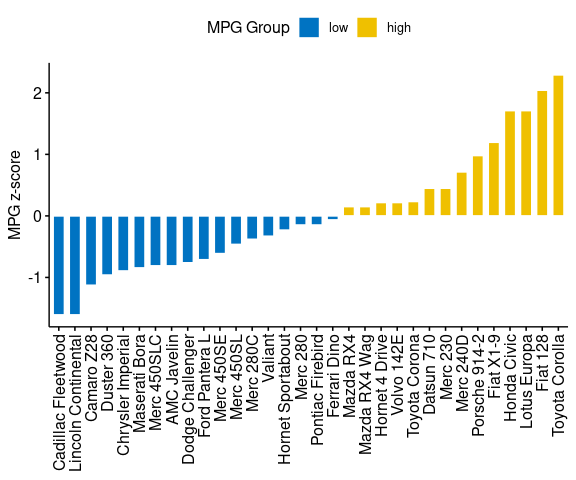

Create an ordered barplot, colored according to the level of mpg:

ggbarplot(dfm, x = "name", y = "mpg_z",
          fill = "mpg_grp",           # change fill color by mpg_level
          color = "white",            # Set bar border colors to white
          palette = "jco",            # jco journal color palett. see ?ggpar
          sort.val = "asc",           # Sort the value in ascending order
          sort.by.groups = FALSE,     # Don't sort inside each group
          x.text.angle = 90,          # Rotate vertically x axis texts
          ylab = "MPG z-score",
          xlab = FALSE,
          legend.title = "MPG Group"
          )

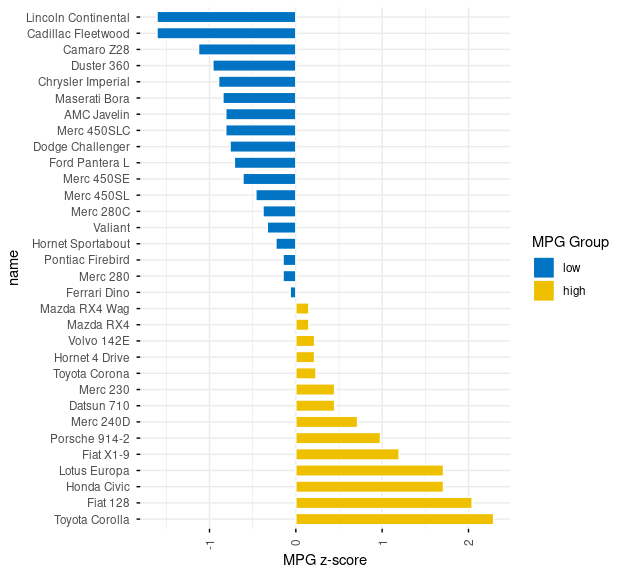

Rotate the plot: use rotate = TRUE and sort.val = "desc"

ggbarplot(dfm, x = "name", y = "mpg_z",
          fill = "mpg_grp",           # change fill color by mpg_level
          color = "white",            # Set bar border colors to white
          palette = "jco",            # jco journal color palett. see ?ggpar
          sort.val = "desc",          # Sort the value in descending order
          sort.by.groups = FALSE,     # Don't sort inside each group
          x.text.angle = 90,          # Rotate vertically x axis texts
          ylab = "MPG z-score",
          legend.title = "MPG Group",
          rotate = TRUE,
          ggtheme = theme_minimal()
          )

Dot charts

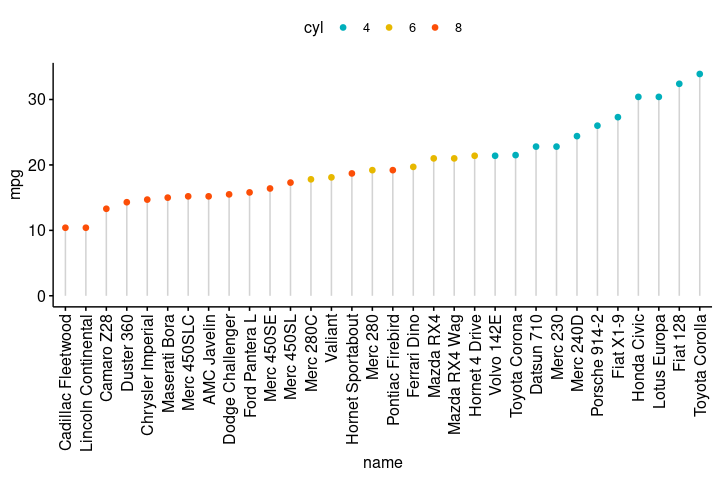

Lollipop chart

Lollipop chart is an alternative to bar plots, when you have a large set of values to visualize.

Lollipop chart colored by the grouping variable "cyl":

ggdotchart(dfm, x = "name", y = "mpg",
           color = "cyl",                                # Color by groups
           palette = c("#00AFBB", "#E7B800", "#FC4E07"), # Custom color palette
           sorting = "ascending",                        # Sort value in descending order
           add = "segments",                             # Add segments from y = 0 to dots
           ggtheme = theme_pubr()                        # ggplot2 theme
           )

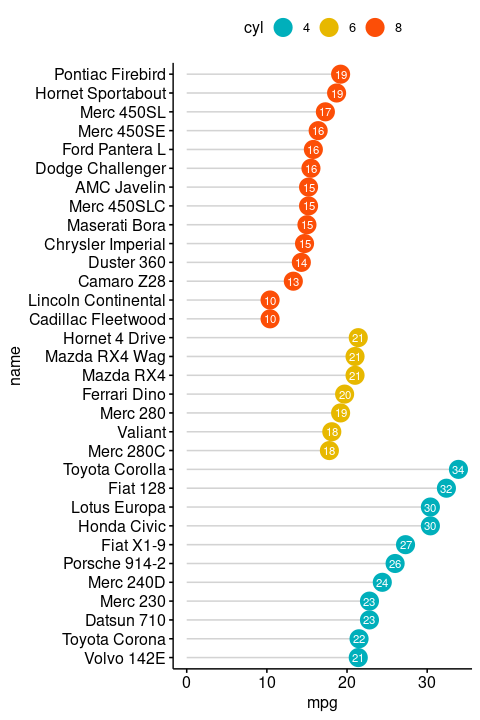

  • Sort in decending order. sorting = "descending".
  • Rotate the plot vertically, using rotate = TRUE.
  • Sort the mpg value inside each group by using group = "cyl".
  • Set dot.size to 6.
  • Add mpg values as label. label = "mpg" or label = round(dfm$mpg).
ggdotchart(dfm, x = "name", y = "mpg",
           color = "cyl",                                # Color by groups
           palette = c("#00AFBB", "#E7B800", "#FC4E07"), # Custom color palette
           sorting = "descending",                       # Sort value in descending order
           add = "segments",                             # Add segments from y = 0 to dots
           rotate = TRUE,                                # Rotate vertically
           group = "cyl",                                # Order by groups
           dot.size = 6,                                 # Large dot size
           label = round(dfm$mpg),                        # Add mpg values as dot labels
           font.label = list(color = "white", size = 9,
                             vjust = 0.5),               # Adjust label parameters
           ggtheme = theme_pubr()                        # ggplot2 theme
           )

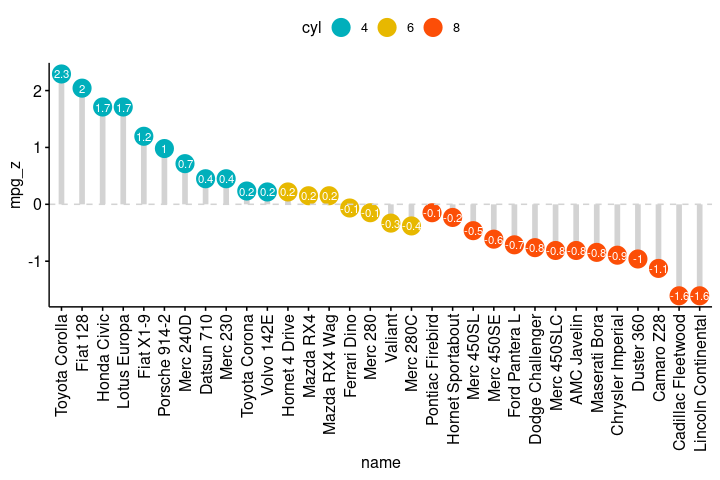

Deviation graph:

  • Use y = "mpg_z"
  • Change segment color and size: add.params = list(color = "lightgray", size = 2)
ggdotchart(dfm, x = "name", y = "mpg_z",
           color = "cyl",                                # Color by groups
           palette = c("#00AFBB", "#E7B800", "#FC4E07"), # Custom color palette
           sorting = "descending",                       # Sort value in descending order
           add = "segments",                             # Add segments from y = 0 to dots
           add.params = list(color = "lightgray", size = 2), # Change segment color and size
           group = "cyl",                                # Order by groups
           dot.size = 6,                                 # Large dot size
           label = round(dfm$mpg_z,1),                        # Add mpg values as dot labels
           font.label = list(color = "white", size = 9,
                             vjust = 0.5),               # Adjust label parameters
           ggtheme = theme_pubr()                        # ggplot2 theme
           )+
  geom_hline(yintercept = 0, linetype = 2, color = "lightgray")

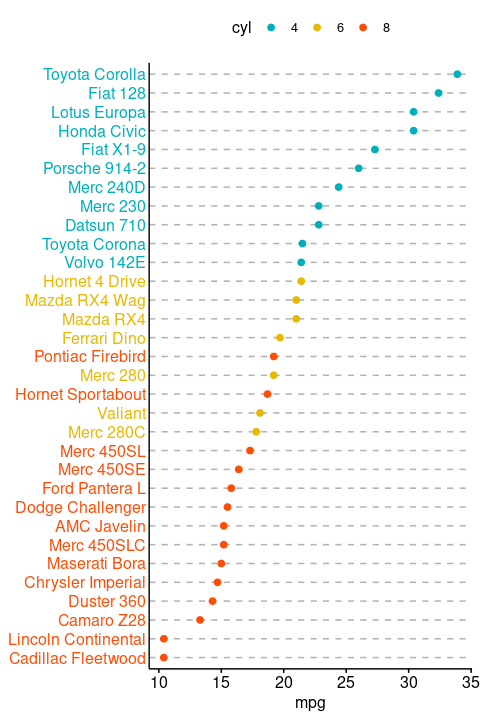

Cleveland's dot plot

Color y text by groups. Use y.text.col = TRUE.

ggdotchart(dfm, x = "name", y = "mpg",
           color = "cyl",                                # Color by groups
           palette = c("#00AFBB", "#E7B800", "#FC4E07"), # Custom color palette
           sorting = "descending",                       # Sort value in descending order
           rotate = TRUE,                                # Rotate vertically
           dot.size = 2,                                 # Large dot size
           y.text.col = TRUE,                            # Color y text by groups
           ggtheme = theme_pubr()                        # ggplot2 theme
           )+
  theme_cleveland()                                      # Add dashed grids

More

Find out more at http://www.sthda.com/english/rpkgs/ggpubr.

Blog posts

News

ggpubr 0.1.6

New features

  • New function ggballoonplot() added to visualize a contingency table.

  • ggdotchart() can be now used to plot multiple groups with position = position_dodge() @ManuelSpinola, #45.

  • New function ggscatterhist() to create a scatter plot with marginal histograms, density plots and box plots.

  • New theme theme_pubclean(): a clean theme without axis lines, to direct more attention to the data.

  • New arguments in ggarrange() to customize plot labels (@G-Thomson, #41):

    • font.label
    • label.x and label.y
    • hjust and vjust
  • New argument method.args added to stat_compare_means(). A list of additional arguments used for the test method. For example one might use method.args = list(alternative = "greater") for wilcoxon test (@Nicktz, #41).

  • New argument symnum.args added to stat_compare_means(). A list of arguments to pass to the function symnum for symbolic number coding of p-values. For example, symnum.args <- list(cutpoints = c(0, 0.0001, 0.001, 0.01, 0.05, 1), symbols = c("****", "***", "**", "*", "ns"))

  • New functions table_cell_font() and table_cell_bg() to easily access and change the text font and the background of ggtexttable() cells (@ProbleMaker, #29).

  • New argument numeric.x.axis in ggline(). logical. If TRUE, x axis will be treated as numeric. Default is FALSE. (@mdphan, #35)

  • New argument lab.nb.digits in ggbarplot(). Integer indicating the number of decimal places (round) to be used (#28). Example: lab.nb.digits = 2.

  • New argument tip.length in stat_compare_means(). Numeric vector with the fraction of total height that the bar goes down to indicate the precise column. Default is 0.03. Can be of same length as the number of comparisons to adjust specifically the tip lenth of each comparison. For example tip.length = c(0.01, 0.03).

Minor changes

  • Now get_legend() returns NULL when the plot doesn't have legend.

Bug fixes

  • Now data argument are supported in stat_compare_means() when the option comparisons are specified (@emcnerny, #48)

  • Now compare_means() returns the same p-values as stat_compare_means() (@wydty, #15).

  • stat_compare_means() now reacts to label = "p.format" when comparisons specified (#28).

  • Now, the p.values are displayed correctly when ref.group is not the first group (@sehufnkjesktgna, #15).

ggpubr 0.1.5

Minor changes

  • In ggpar(), now legend.title can be either a character vector, e.g.: legend.title = "Species" or a list, legend.title = list(color = "Species", linetype = "Species", shape = "Species").

  • New argument ellipse.border.remove in ggscatter() to remove ellipse border lines.

ggscatter(mtcars, x = "mpg", y = "wt",
          color = "cyl",
          ellipse = TRUE, mean.point = TRUE,
          ellipse.border.remove = TRUE)
  • In ggscatter(), the argument mean.point now reacts to fill color.

  • Support for text justification added in ggtexttable() (@cj-wilson, #15)

  • The function ggpie() can now display japanese texts. New argument font.family in ggpie() and in ggpar() (@tomochan001, #15).

  • Using time on x axis works know with ggline() and ggbarplot() (@jcpsantiago, #15).

Bug fixes

  • stat_compare_means() now reacts to hide.ns properly.
  • drawDetails.splitText() exported so that the function ggparagraph() works properly.
  • Now, ggpubr functions accept expression for label text
  • In ggbarplot(), now labels correspond to the true size of bars (@tdelhomme, #15).
  • stat_compare_means() now keep the default order of factor levels (@RoKant, #12).

ggpubr 0.1.4

New features

  • New helper functions:

    • gradient_color() and gradient_color(): change gradient color and fill palettes.
    • clean_theme(): remove axis lines, ticks, texts and titles.
    • get_legend(): to extract the legend labels from a ggplot object.
    • as_ggplot(): Transform the output of gridExtra::arrangeGrob() and gridExtra::grid.arrange() to a an object of class ggplot.
    • ggtexttable(): to draw a textual table.
    • ggparagraph(): to draw a paragraph of text.
    • fill_palette() and color_palette() to change the fill and color palette, respectively.
    • annotate_figure() to annotate (arranged) ggplots.
    • text_grob() to create easily a customized text graphical object.
    • background_image() to add a background image to a ggplot.
  • New theme function theme_transparent() to create a ggplot with transparent background.

Minor changes

  • In gghistogram(), density curve and rug react to the fill color.
  • ggarrange():
    • New argument àlign to specify whether graphs in the grid should be horizontally ("h") or vertically ("v") aligned.
    • New argument legend to remove or specify the legend position when arranging multiple plots.
    • New argument common.legend to create a common unique legend for multiple plots.

ggpubr 0.1.3

New features

  • New functions:

    • ggarrange() to arrange multiple ggplots on the same page.
    • ggexport() to export one or multiple ggplots to a file (pdf, eps, png, jpeg).
    • ggpaired() to plot paired data.
    • compare_means() to compare the means of two or multiple groups. Returns a data frame.
    • stat_compare_means() to add p-values and significance levels to plots.
    • stat_cor() to add correlation coefficients with p-values to a scatter plot.
    • stat_stars() to add stars to a scatter plot.
  • Now, the argument y can be a character vector of multiple variables to plot at once. This might be useful in genomic fields to plot the gene expression levels of multiple genes at once. see ggboxplot(), ggdotplot(), ggstripchart(), ggviolin(), ggbarplot() and ggline.

  • The argument x can be a vector of multiple variables in gghistogram(), ggdensity(), ggecdf() and ggqqplot().

  • New functions to edit ggplot graphical parameters:

    • font() to change the appearance of titles and labels.
    • rotate_x_text() and rotate_y_text() to rotate x and y axis texts.
    • rotate() to rotate a ggplot for creating horizontal plot.
    • set_palette() or change_palette() to change a ggplot color palette.
    • border() to add/change border lines around a ggplot.
    • bgcolor() to change ggplot panel background color.
    • rremove() to remove a specific component from a ggplot.
    • grids() to add grid lines.
    • xscale() and yscale() to change axis scale.
  • New helper functions:

    • facet() added to create multi-panel plots (#5).
    • add_summary() to add summary statistics.
    • ggadd() to add summary statistics or a geometry onto a ggplot.
  • New data set added: gene_citation

  • New arguments in ggpar(): x.text.angle and y.text.angle

Major changes

  • New arguments in ggpubr functions, see ggboxplot(), ggdotplot(), ggstripchart(), ggviolin(), ggbarplot() and ggline:

    • combine added to combine multiple y variables on the same graph.
    • merge to merge multiple y variables in the same ploting area.
    • select to select which item to display.
    • remove to remove a specific item from a plot.
    • order to order plot items.
    • label, font.label, label.select, repel, label.rectangle to add and customize labels
    • facet.by, panel.labs and short.panel.labs: support for faceting and customization of plot panels
  • New argument grouping.vars in ggtext(). Grouping variables to sort the data by, when the user wants to display the top n up/down labels.

  • New arguments in theme_pubr():

    • border,
    • margin,
    • legend,
    • x.text.angle

Minor changes

  • Now, the argument palette Can be also a numeric vector of length(groups); in this case a basic color palette is created using the function grDevices::palette().

Bug fixes

  • Now, ggpar() reacts to palette when length(palette) = 1 and palette is a color name #3.

  • ggmaplot() now handles situations, wehre there is only upregulated, or downlegulated gnes.

ggpubr 0.1.2

New features

  • New function get_palette() to generate a palette of k colors from ggsci palettes, RColorbrewer palettes and custom color palettes. Useful to extend RColorBrewer and ggsci to support more colors.

Minor changes

  • Now the ggpar() function can handle a list of ggplots.
  • Now the default legend position is right.
  • New argument show.legend.text in the ggscatter() function. Use show.legend.text = FALSE to hide text in the legend.
  • New arguments title, submain, subtitle, caption, font.submain, font.subtitle, font.caption in the ggpar() function.
  • New argument font.family in ggscatter().

Bug fixed

  • The mean within group for ggdensity (gghistogram) are now shown if data have NA values @chunkaowang, #1

ggpubr 0.1.1

New features

  • New function ggtext() for textual annotation.
  • New argument star.plot in ggscatter(). A logical value. If TRUE, a star plot is generated.
  • New helper function geom_exec(). A helper function used by ggpubr functions to execute any geom_xx functions in ggplot2. Useful only when you want to call a geom_xx function without carrying about the arguments to put in ggplot2::aes().
  • New arguments sort.val and top in ggbarplot().
    • sort.val: a string specifying whether the value should be sorted. Allowed values are "none" (no sorting), "asc" (for ascending) or "desc" (for descending).
    • top: a numeric value specifying the number of top elements to be shown.
  • New function theme_classic2() added. Classic theme with axis lines.

Minor changes

  • ggboxplot(), ggviolin(), ggdotplot(), ggstripchart(), gghistogram(), ggdensity(), ggecdf() and ggqqplot() can now handle one single numeric vector.
# Example
ggboxplot(iris$Sepal.Length)
  • Now, in gghistogram(), when add_density = TRUE, y scale remains = "..count..".
  • Now, default theme changed to theme_classic2()
  • Default point size and line size set to NULL

ggpubr 0.1.0

Plot one variable - X: Continuous

  • ggdensity(): Density plot
  • gghistogram(): Histogram plot
  • ggecdf(): Empirical cumulative density function
  • ggqqplot(): QQ plots

Plot two variables - X & Y: Discrete X and Continuous Y

  • ggboxplot(): Box plot
  • ggviolin(): Violin plot
  • ggdotplot(): Dot plot
  • ggstripchart(): Stripchart (jitter)
  • ggbarplot(): Bar plot
  • ggline(): Line plot
  • ggerrorplot(): Error plot
  • ggpie(): Pie chart
  • ggdotchart(): Cleveland's dot plots

Plot two continuous variables

  • ggscatter(): Scatter plot

Graphical paramters

  • ggpar(): Change graphical parameters
  • show_line_type(): Line types available in R
  • show_point_shapes(): Point shapes available in R
  • theme_pubr(): Create a publication ready theme
  • labs_pubr(): Format only plot labels to a publication ready style

Genomics

  • ggmaplot(): MA-plot from means and log fold changes

Data

  • diff_express: Differential gene expression analysis results

Other

  • desc_statby(): Descriptive statistics by groups
  • stat_chull(): Plot convex hull of a set of points
  • stat_conf_ellipse(): Plot confidence ellipses
  • stat_mean(): Draw group mean points

Reference manual

It appears you don't have a PDF plugin for this browser. You can click here to download the reference manual.

install.packages("ggpubr")

0.1.6 by Alboukadel Kassambara, 3 months ago


http://www.sthda.com/english/rpkgs/ggpubr


Report a bug at https://github.com/kassambara/ggpubr/issues


Browse source code at https://github.com/cran/ggpubr


Authors: Alboukadel Kassambara [aut, cre]


Documentation:   PDF Manual


GPL-2 license


Imports ggrepel, grid, ggsci, stats, utils, tidyr, purrr, dplyr, cowplot, ggsignif, scales, gridExtra

Depends on ggplot2, magrittr

Suggests grDevices, knitr, RColorBrewer, gtable


Imported by factoextra, factorMerger.

Depended on by survminer.


See at CRAN
